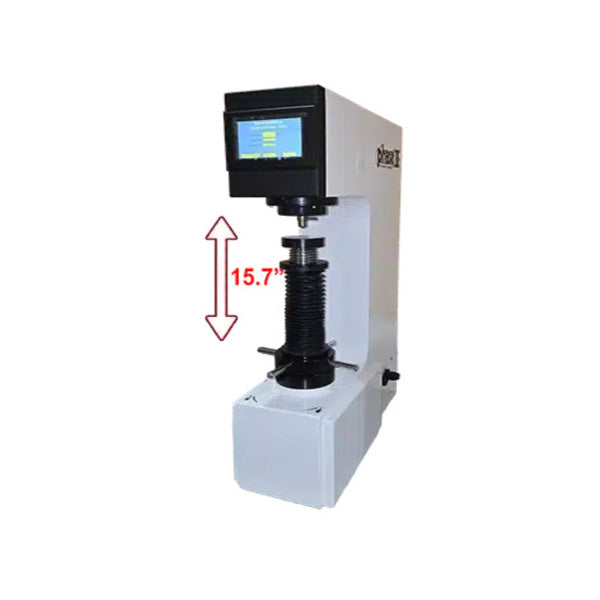

Tall or awkward parts need vertical clearance a standard Brinell tester doesn't have. The Phase II tall-frame digital Brinell hardness tester pairs a 15.7" vertical capacity with closed-loop load-cell accuracy and fully automatic test cycles.
A tall-frame digital Brinell hardness tester with load-cell control
Newly designed Brinell hardness tester with innovative closed-loop load cell technology. Fully automatic test cycles, 20X lighted microscope, large 8″ flat anvil included. Conforms to ISO 6506 and ASTM E-10.
Comes with a 5-year manufacturer's warranty with lifetime tech support.
Product spec sheet
Specifications
-
Test Force: 3000kgf (29400N), 1500kgf (14700N), 1000kgf (9800N),
750kgf (7355N), 500kgf (4900N), 250kgf (2452N), 187.5kgf (1839N), 125kgf (1226N),
100kgf (980N), 62.5kgf (612.9N)
-
Load dwell duration: 2s–99s, can be set and stored
-
Tungsten Carbide Ball indenters: 10mm, 5mm, 2.5mm
-
Measuring range: 8HBW–650HBW
-
Magnification of the microscope: 20X
-
Resolution capability of the microscope: 0.005mm
-
Testing Capacity: 15.7″ (400mm) vertical, 6.10″ (155mm) Throat Depth
-
Dimensions: 550mm × 210mm × 780mm
-
Net weight: 300 lbs (140kg)
-
Power supply: Single phase, AC, 110V, 50–60Hz, 4A
-
Conversions to popular hardness scales can be selected on the touch screen
