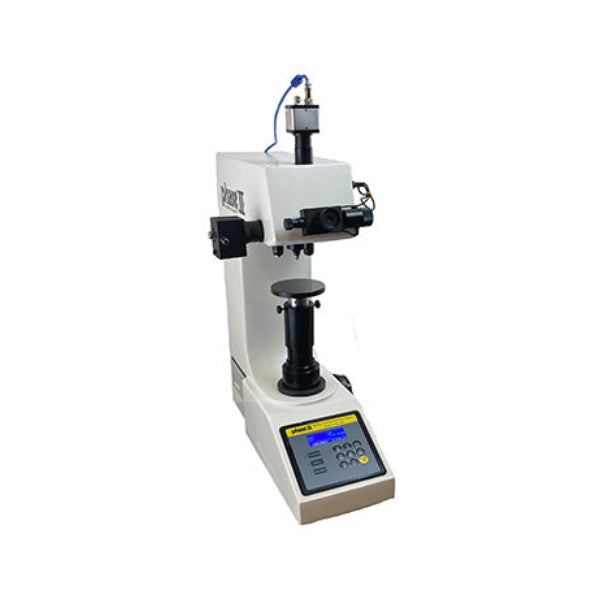

Welds, castings and case-hardened layers need higher Vickers loads than a micro tester provides. The Phase II digital macro Vickers hardness tester covers 1–50 kgf with an automatic load cycle, digital camera and measurement software.
A macro Vickers hardness tester for higher-load HV and Knoop testing
Key features
- Designed to test in Vickers (HV) and Knoop (HK) hardness scales.
- All Phase II Vickers hardness testers come standard with digital camera, camera adaptor tube, usb cabling and software
- All software will do hardness conversions on screen
- Software A version can be upgraded to B version at any time in the future
- 5-year manufacturer's warranty with lifetime tech support
Specifications
- 1. Test Forces
- 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 249.2, 490.3 N 1, 2, 2.5, 3, 5, 10, 20, 30, 50 kgf
-
2.Carriage Control: automatic loading / holding‐up of the load / unloading )
-
3. Amplification of the Microscope: 100 ×, 200 ×
-
4. Dwell Time of the Test Force: (0‐60)s
-
5. Min. Graduation Value of the Testing Drum Wheel: 0.125um
-
6. Testing Field: 1HV—2967HV
-
7. Lens Indentor Switch: With Manual Turret
-
8. Output: Built‐in Mini Printer RS‐232
-
9. Max. height of the specimen : 170 mm
-
10. Max. width of the specimen : 130mm
-
11. Objective: 10x, 20x selectable
-
12. Light source: cold light source
-
13. Power Supply : 110V/220V,60/50Hz
-
14. Dimension:535X225X580mm
