INSIZE Surface Roughness Tester | 48 Param, Touchscreen

Judging a surface finish by feel or sight tells you nothing you can put on an inspection report. The INSIZE surface roughness tester measures Ra, Rz and full profiles against 48 parameters on a color touchscreen, so finish is a number you can record and prove.

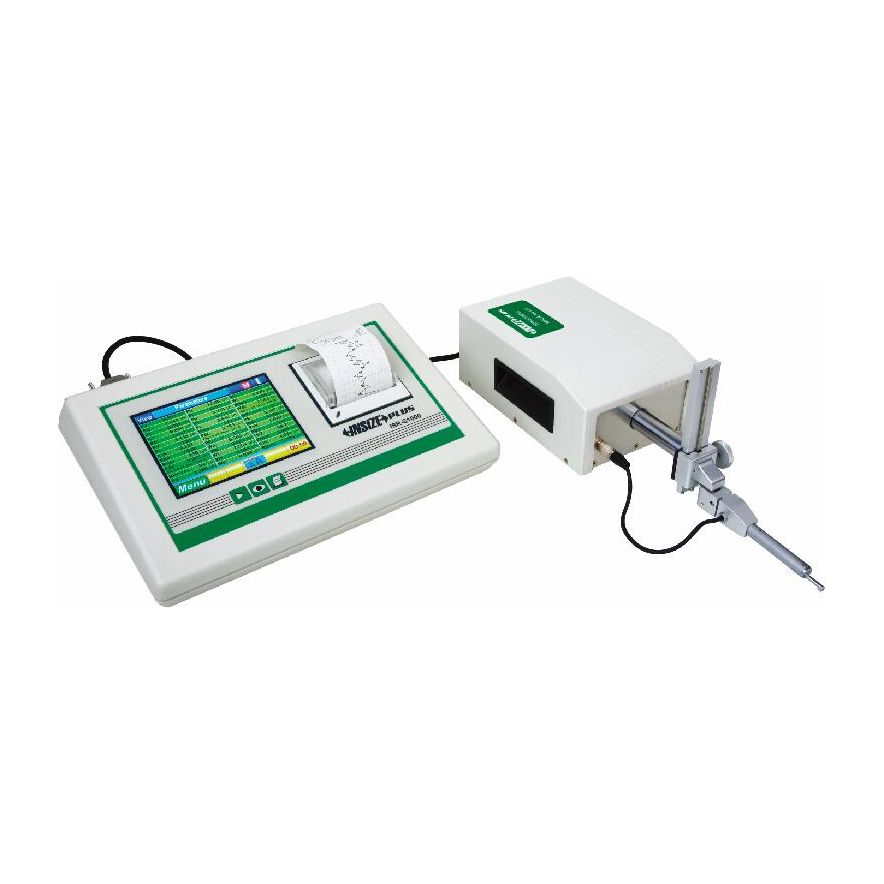

A benchtop surface roughness tester with 48 parameters

Key features & specifications

• Range 39370µin. Accuracy ±3%. Resolution 0.01µin. Probe: inductive, stylus radius/angle 196µin/90°, diamond stylus.
• Measuring force 0.003ozf. Cut off .003/.01/.03/.1/.3". Traverse speed .02"/s or .04"/s.
• 48 roughness parameters per ISO-4287, JIS-B0601, ISO-12085, JIS-B0631. Automatic probe leveling. Can measure grit and shot blasting.
• Traverse length up to 1.97". Probe rotates from -90° to +90°.
• Color touch screen displays roughness values, profile and curves.
• Can print roughness values, profile and curves.
• Memory of maximum 1000 results. Can set tolerance.
