INSIZE IST-4W Quality Inspection Digital Torque Wrench
Call/Text/Email before you buy.
Our team reviews every order and is happy to answer questions about compatibility, specs, or lead times. Don't guess — let's get it right the first time.

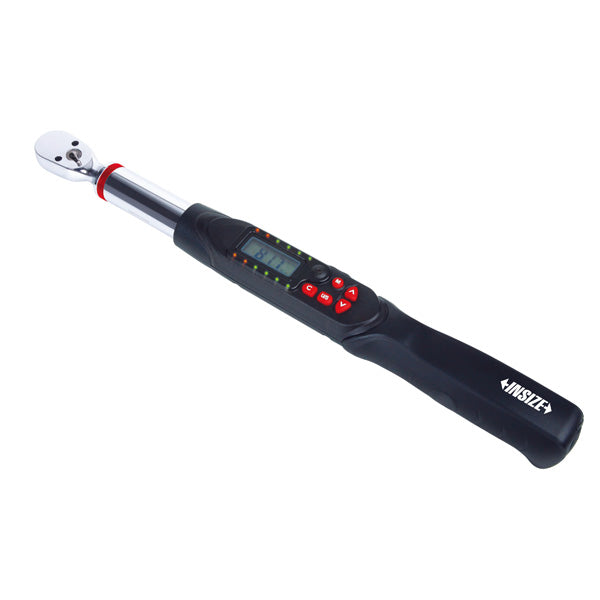

INSIZE IST-4W Quality Inspection Digital Torque Wrenches
The INSIZE IST-4W Series Quality Inspection Digital Torque Wrenches are designed for torque verification and quality-control applications where accurately measuring the torque of installed fasteners is essential.
Unlike conventional torque wrenches designed primarily to apply a specified tightening torque, the IST-4W Series is designed specifically for inspection and verification. The wrench allows operators to retighten an already-installed fastener while monitoring the torque value at which looseness is detected, providing a practical method for verifying installed fastener torque.
The IST-4W Series available from CRB Supply includes four torque capacities ranging from 6 to 340 N·m, providing options for precision assembly inspection, manufacturing quality control, maintenance, and industrial torque verification.
Available Models
| Model | Torque Range | Drive Size | Accuracy CW | Accuracy CCW | Resolution |
|---|---|---|---|---|---|
| IST-4W30A | 6–30 N·m | 1/4" | ±2% | ±3% | 0.01 N·m |
| IST-4W135A | 27–135 N·m | 3/8" | ±2% | ±3% | 0.1 N·m |
| IST-4W200A | 40–200 N·m | 1/2" | ±2% | ±3% | 0.1 N·m |
| IST-4W340A | 68–340 N·m | 1/2" | ±2% | ±3% | 0.1 N·m |
Designed for Torque Inspection
The IST-4W Series is designed for applications where the goal is to verify torque on an existing fastener, rather than simply apply a predetermined tightening torque.
In manual detection mode, the operator can retighten an existing bolt while monitoring the digital torque measurement. When the fastener begins to loosen, the wrench detects the corresponding torque value, providing an inspection measurement of the installed fastener.
This makes the IST-4W useful for:
-
Fastener torque verification
-
Assembly inspection
-
Production quality control
-
Torque auditing
-
Maintenance inspection
-
Installed-bolt verification
-
Manufacturing quality assurance
Digital Torque Measurement
The IST-4W provides a digital readout and supports both peak and track measurement modes.
Clockwise and counter-clockwise operation allows the wrench to be used for a variety of inspection and assembly applications.
Available torque units include:
-
N·m
-
in·lb
-
ft·lb
-
kg·cm
Pass/Fail Inspection
The IST-4W incorporates upper and lower torque tolerance limits for inspection applications.
When tolerance limits are configured, the wrench provides audible and visual indications to help operators quickly determine whether a measured torque value falls within the specified range.
This can be particularly useful in production environments where torque verification is performed repeatedly across multiple assemblies.
Measurement Memory
The IST-4W Series can store up to 50 measurement results in its internal memory.
This provides operators with a convenient way to retain recent inspection measurements without immediately recording every result manually.
Fixed Ratchet Head
The IST-4W Series uses a fixed ratchet head, with drive sizes selected according to the torque capacity of each model.
-
IST-4W30A: 1/4" drive
-
IST-4W135A: 3/8" drive
-
IST-4W200A: 1/2" drive
-
IST-4W340A: 1/2" drive
The ratcheting head provides convenient operation when accessing fasteners in assembly and inspection environments.
Accuracy & Resolution
The IST-4W30A, IST-4W135A, IST-4W200A, and IST-4W340A provide:
-
±2% clockwis
