Large castings and forgings need Brinell's big indentation — and the force to make it. The INSIZE ISHB-H131 hydraulic Brinell hardness tester delivers a full 3,000 kgf through a Ø10 mm carbide ball for dependable hardness testing of large steel and iron parts.
A hydraulic Brinell hardness tester for large steel and iron parts

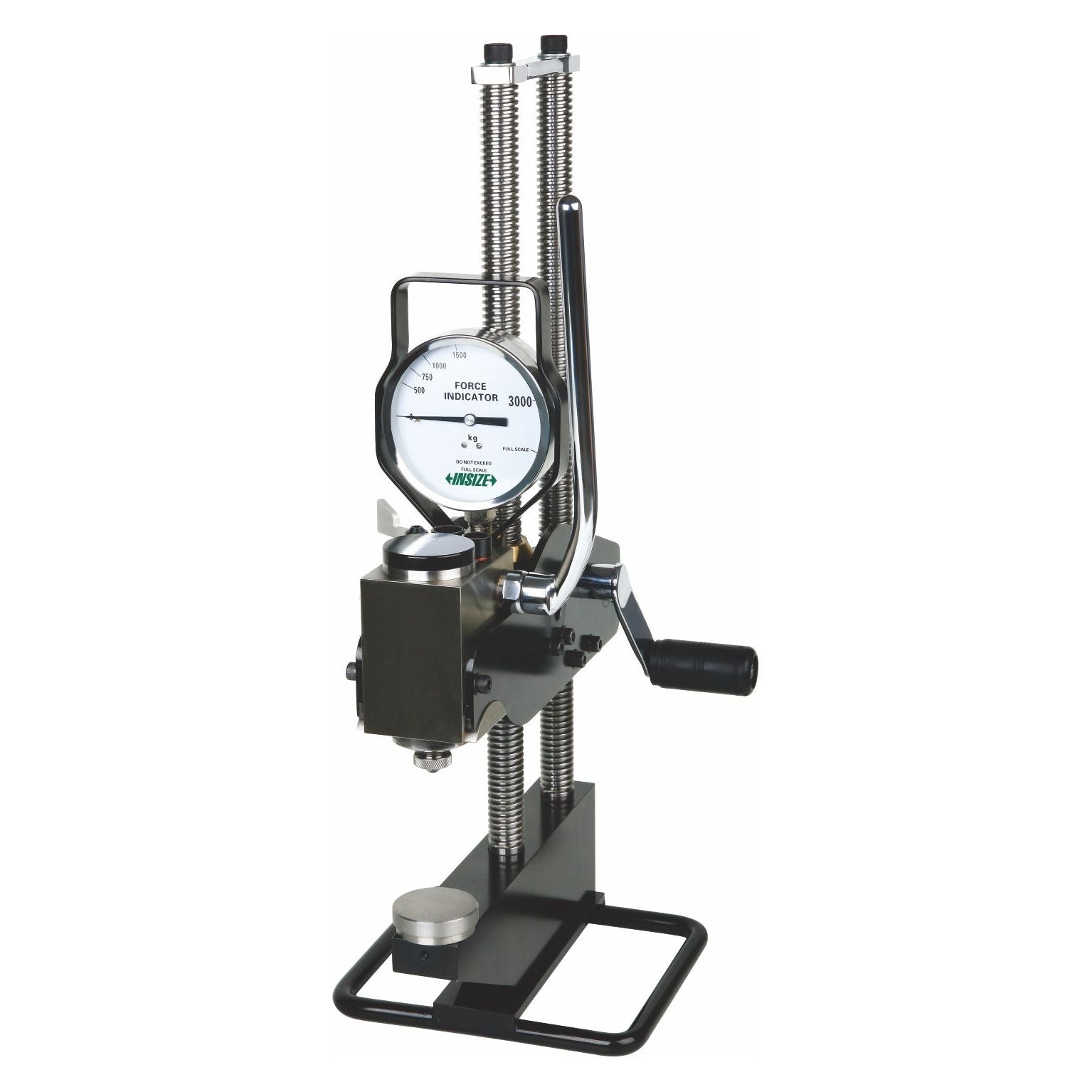

The INSIZE ISHB-H131 Hydraulic Brinell Hardness Tester is designed for accurate Brinell hardness testing of large steel and iron workpieces. Its hydraulic loading system provides a 3,000 kgf test force, while the included 20X measuring microscope allows the operator to measure the resulting indentation for reliable hardness evaluation.
With a 16–650 HBW measuring range and a Ø10 mm carbide ball indenter, the ISHB-H131 is well suited for industrial quality control, material inspection, production testing, and hardness verification of large components.
Key Features
• Brinell hardness measuring range: 16–650 HBW
• Hydraulic test force: 3,000 kgf
• Ø10 mm carbide ball indenter
• 20X measuring microscope
• Microscope graduation: 0.01 mm / .0004"
• Maximum workpiece height: 350 mm
• Maximum testing width: 90 mm from the center of the indenter to the column
• Includes flat, V-type, and spherical anvils
• Hydraulic loading system for large workpieces
• Designed for industrial Brinell hardness testing
• Conforms to ISO 6506 and ASTM E10
Specifications
Model: ISHB-H131
Hardness Scale: Brinell
Measuring Range: 16–650 HBW
Test Force: 3,000 kgf
Indenter: Ø10 mm carbide ball
Measuring Microscope: 20X
Microscope Graduation: 0.01 mm / .0004"
Maximum Workpiece Height: 350 mm
Maximum Testing Width: 90 mm from center of indenter to column
Dimensions: 270 × 225 × 570 mm
Weight: 13.8 kg
Standards: ISO 6506, ASTM E10
Included Accessories
• Main unit
• Flat anvil
• V-type anvil
• Spherical anvil
• Ø10 mm carbide ball — 2 pcs
• Brinell test blocks — 2 pcs
• 20X measuring microscope
Applications
The INSIZE ISHB-H131 is designed for Brinell hardness testing of large metal components where a conventional benchtop hardness tester may not provide sufficient working capacity.
Typical applications include:
• Steel and iron components
• Large machinery parts
• Fabricated metal components
• Castings and forgings
• Production quality control
• Material inspection
• Manufacturing and fabrication
• Hardness verification
Hydraulic Brinell Hardness Testing
The ISHB-H131 uses a hydraulic loading system to apply a 3,000 kgf test force through a Ø10 mm carbide ball. After the indentation is created, the included 20X measuring microscope is used to measure the indentation diameter and determine the Brinell hardness value.
Large Workpiece Capacity
With a maximum workpiece height of 350 mm and a maximum testing width of 90 mm from the center of the indenter to the column, the ISHB-H131 provides the working capacity needed for larger components.
Product Code: ISHB-H131
Manufacturer: INSIZE
View the INSIZE ISHB-H131 Specification Sheet:
https://www.insize.com/pdf-viewer?=/PDF/ISHB-H131.pdf
