You can't bring a 400 mm steel pipe to a benchtop hardness tester. The INSIZE ISHB-C161 chain-type Brinell hardness tester wraps around large cylinders and tubes with a 1.5 m chain, so you test them right where they are, at a full 3,000 kgf.
A chain-type Brinell hardness tester for large cylinders and pipes

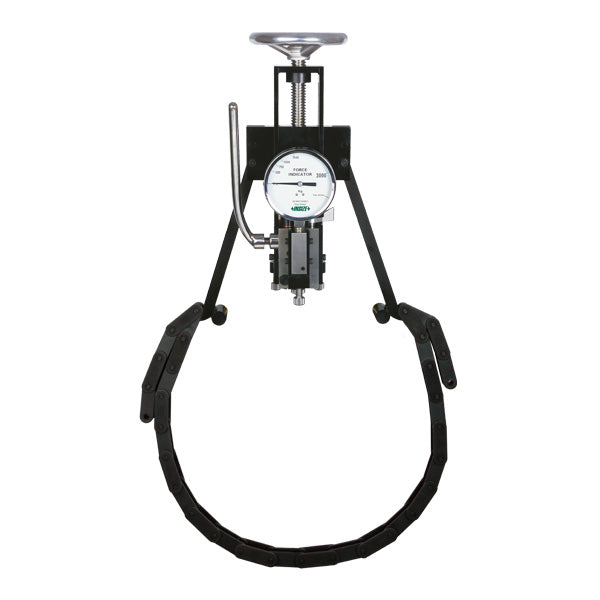

The INSIZE ISHB-C161 Chain Type Hydraulic Brinell Hardness Tester is designed for measuring the hardness of large cylindrical and tubular workpieces that are difficult to test using conventional benchtop hardness testers. Its chain-type design allows the tester to be secured around cylindrical components for convenient Brinell hardness testing.
With a 3,000 kgf test force, a 32–650 HBW measuring range, and a 20X measuring microscope, the ISHB-C161 provides a practical solution for hardness inspection of large shafts, pipes, tubes, and other cylindrical steel or iron components.
Key Features
• Chain-type design for testing cylinders and tubes
• Brinell hardness measuring range: 32–650 HBW
• 3,000 kgf test force
• Designed for workpieces with diameters from Ø150–Ø500 mm
• Ø10 mm carbide ball indenter
• 20X measuring microscope
• 0.01 mm microscope graduation
• Includes 1.5 m chain
• Portable design for large cylindrical workpieces
• Conforms to ISO 6506 and ASTM E10
Specifications
Model: ISHB-C161
Hardness Scale: Brinell
Measuring Range: 32–650 HBW
Workpiece Diameter Range: Ø150–Ø500 mm
Test Force: 3,000 kgf
Indenter: Ø10 mm carbide ball
Measuring Microscope: 20X
Microscope Graduation: 0.01 mm
Chain Length: 1.5 m
Dimensions: 270 × 225 × 570 mm
Weight: 14.5 kg
Standards: ISO 6506, ASTM E10
Included Accessories
• Main unit
• 1.5 m chain
• Ø10 mm carbide ball — 2 pcs
• Brinell test block — 2 pcs
• 20X measuring microscope
Applications
The INSIZE ISHB-C161 is ideal for hardness testing of large cylindrical and tubular components where conventional hardness testers cannot easily be used.
Typical applications include:
• Large steel shafts
• Pipes and tubes
• Cylindrical steel components
• Heavy machinery components
• Fabricated steel components
• Production quality control
• Material inspection
• Field hardness testing
Chain-Type Design For Large Cylindrical Workpieces
The ISHB-C161 uses a 1.5 m chain to secure the tester around cylindrical or tubular workpieces measuring Ø150–Ø500 mm in diameter. This configuration allows Brinell hardness testing to be performed directly on large components without requiring the entire workpiece to be transported to a stationary hardness testing machine.
Brinell Hardness Testing
The ISHB-C161 applies a 3,000 kgf test force through a Ø10 mm carbide ball indenter. After creating the Brinell indentation, the included 20X measuring microscope is used to measure the indentation and determine the hardness value.
Product Code: ISHB-C161
Manufacturer: INSIZE
