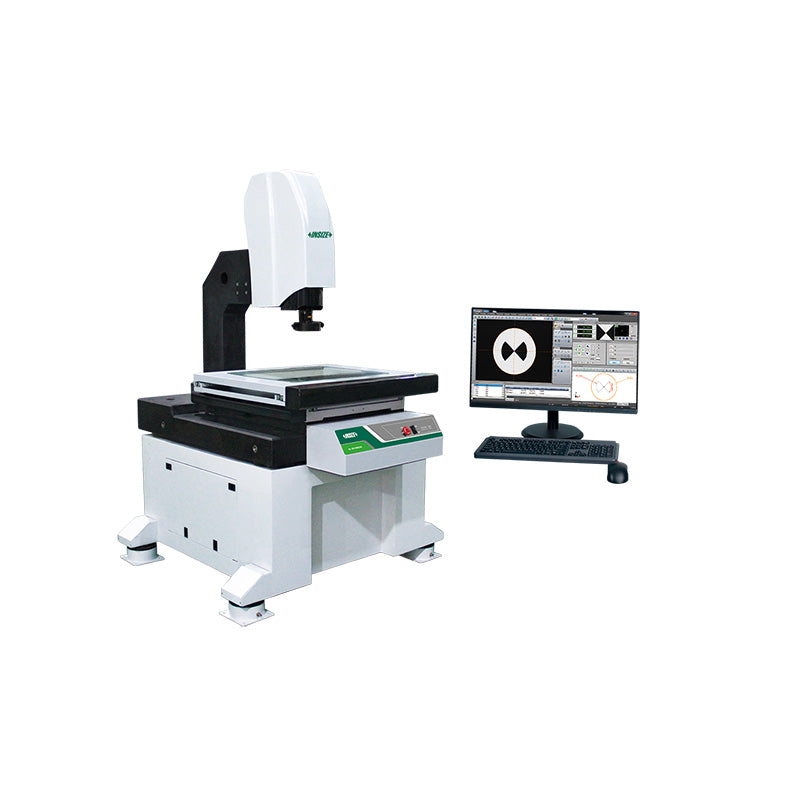

INSIZE ISD-V500N Series CNC Vision Measuring System
The INSIZE ISD-V500N Series CNC Vision Measuring System is a high-capacity automated optical measurement system designed for precise, non-contact dimensional inspection of manufactured components. Combining motorized X/Y/Z positioning, high-resolution imaging, zoom optics, automatic edge detection, autofocus, contour scanning, and measurement software, the ISD-V500N Series provides a complete solution for production inspection and quality control.
The series is available in two configurations:
-
ISD-V500N — 470 × 370 × 200 mm measuring range
-
ISD-V500HN — 470 × 370 × 400 mm measuring range
Both models provide 0.5 µm X/Y/Z resolution, 2 µm X/Y repeatability, ≤(2.5 + L/200) µm X/Y accuracy, 33.0X–208.6X magnification on a 24-inch monitor, and a 30 kg maximum workpiece capacity. The primary difference is the available Z-axis height, making the HN configuration suitable for taller workpieces.
Choose Your ISD-V500 Model
| Model | X × Y × Z Measuring Range | Max. Workpiece Height | Machine Weight |
|---|---|---|---|
| ISD-V500N | 470 × 370 × 200 mm | 200 mm | 870 kg |
| ISD-V500HN | 470 × 370 × 400 mm | 400 mm | 900 kg |
ISD-V500N — Standard Height
The ISD-V500N provides a 470 × 370 × 200 mm X/Y/Z measuring range and is designed for precision inspection of components that fit within a 200 mm vertical measuring envelope.
ISD-V500HN — Extended Height
The ISD-V500HN expands the Z-axis measuring range to 400 mm, making it the appropriate configuration for taller components or applications where additional vertical clearance is required.
The X/Y measuring range remains 470 × 370 mm, while the maximum workpiece height increases from 200 mm to 400 mm.
Automated CNC Vision Measurement
Unlike manual vision measuring systems, the ISD-V500N Series uses servo motors for the X, Y, and Z axes, allowing the machine to automatically position the measurement system according to programmed inspection requirements.
Automated functions include:
-
Automatic edge detection
-
Automatic focusing
-
Automatic measurement
-
Contour scanning
-
Automatic calibration
-
CNC X/Y/Z positioning
-
SPC data analysis
-
High-volume measurement support
These functions help reduce operator-dependent measurement variation and make the system suitable for repetitive inspection processes.
High-Resolution Optical System
The ISD-V500N Series uses a 0.7X–4.5X zoom objective with a 92 mm working distance.
On the included 24-inch monitor, the optical system provides approximately 33.0X–208.6X magnification. The diagonal field of view ranges from approximately 1.5 to 10.8 mm, allowing operators to move between detailed feature inspection and broader views of the workpiece.
Gigabit Network Camera
A Gigabit network camera provides the live image used by the measurement software. This high-resolution imaging system allows the software to identify workpiece edges and other measurable features for automated optical inspection.
Precision Measurement Performance
The ISD-V500N Series provides:
-
0.5 µm X/Y/Z resolution
-
2 µm X/Y repeatability
-
≤(2.5 + L/200) µm X/Y accuracy
The accuracy specification is based on the measuring length L in millimeters.
This level of measurement performance makes the system appropriate for dimensional inspection where repeatability and non-contact measurement are important.
Advanced Illumination
The ISD-V500N Series combines multiple illumination methods to help optimize the image of different workpiece features.
Surface Illumination
The surface illumination system incorporates:
-
Coaxial illumination
-
Programmable segmented ring light
Segmented illumination allows lighting to be adjusted around the workpiece to improve visibility of edges, surfaces, and individual features.
Contour Illumination
An adjustable LED contour light provides backlighting for profile and edge inspection.
Using surface and contour illumination together allows the system to handle both surface features and external profiles during optical inspection.
Measurement & Inspection Capabilities
The ISD-V500N Series can be used for a wide range of dimensional and geometric inspection tasks, including:
-
Linear dimensions
-
Outside dimensions
-
Inside dimensions
-
Hole diameters
-
Hole locations
-
Center-to-center distances
-
Angles
-
Radii
-
Arcs
-
Profiles
-
Contours
-
Edge inspection
-
Feature-to-feature measurements
-
Dimensional verification
-
Production quality control
INSIZE describes the ISD-V Series as capable of measuring planar dimensions, contours, hole positions, and angles using non-contact optical measurement.
SPC for Production Inspection
The ISD-V500N Series includes SPC functionality for large-quantity measurement.
Statistical process control can help manufacturers analyze measurement data across production runs, making the system suitable for applications where dimensional consistency needs to be monitored over time.
This makes the ISD-V500N particularly relevant for production environments rather than only one-off laboratory inspection.
Typical Applications
The ISD-V500N Series is suited for inspection of:
-
CNC-machined components
-
Precision metal parts
-
Molded components
-
Tooling
-
Dies
-
Fixtures
-
Electronic components
-
Mechanical components
-
Stamped parts
-
Precision hardware
-
Industrial components
Common Industries
-
CNC Machining
-
Precision Manufacturing
-
Automotive
-
Aerospace
-
Electronics
-
Tool & Die
-
Mold Manufacturing
-
Medical Device Manufacturing
-
Industrial Manufacturing
-
Quality Assurance
-
Metrology Laboratories
-
Research & Development
Technical Specifications
| Specification | ISD-V500N | ISD-V500HN |
|---|---|---|
| Model | ISD-V500N | ISD-V500HN |
| Measuring Range X × Y × Z | 470 × 370 × 200 mm | 470 × 370 × 400 mm |
| Stage Size | 786 × 636 mm | 786 × 636 mm |
| Glass Stage | 570 × 470 mm | 570 × 470 mm |
| X/Y/Z Resolution | 0.5 µm | 0.5 µm |
| X/Y Accuracy | ≤(2.5 + L/200) µm | ≤(2.5 + L/200) µm |
| X/Y Repeatability | 2 µm | 2 µm |
| Objective | 0.7X–4.5X Zoom | 0.7X–4.5X Zoom |
| Working Distance | 92 mm | 92 mm |
| Diagonal Field of View | 1.5–10.8 mm | 1.5–10.8 mm |
| Monitor Magnification | 33.0X–208.6X on 24" monitor | 33.0X–208.6X on 24" monitor |
| Camera | Gigabit Network Camera | Gigabit Network Camera |
| Surface Illumination | Coaxial + Programmable Segmented Ring Light | Coaxial + Programmable Segmented Ring Light |
| Contour Illumination | Adjustable LED | Adjustable LED |
| Maximum Workpiece Height | 200 mm | 400 mm |
| Maximum Workpiece Weight | 30 kg | 30 kg |
| Drive Method | Automatic | Automatic |
| Machine Weight | 870 kg | 900 kg |
| Dimensions | 1270 × 1200 × 1870 mm | 1270 × 1200 × 2070 mm |
Manufacturer documentation identifies the 500N and 500HN configurations with the same 470 × 370 mm X/Y range and different Z-axis capacities.
Standard Equipment
The ISD-V500N Series is supplied as a complete CNC vision measuring system and includes the computer and measurement software. The system is equipped for automated edge detection, autofocus, measurement, contour scanning, calibration, and SPC-based inspection.
Why Choose the ISD-V500N Series?
The ISD-V500N Series is designed for manufacturers that need more than basic manual optical inspection.
Its combination of:
-
Automated CNC positioning
-
Non-contact optical measurement
-
0.5 µm resolution
-
2 µm repeatability
-
Automatic edge detection
-
Autofocus
-
Contour scanning
-
Programmable illumination
-
SPC functionality
-
Large 470 × 370 mm X/Y measuring area
makes it a comprehensive platform for production dimensional inspection.
The two configurations allow customers to select the appropriate vertical measuring capacity without changing the fundamental optical and measurement platform.
Select ISD-V500N when:
Your components fit within a 470 × 370 × 200 mm measuring range and do not require more than 200 mm of Z-axis clearance.
Select ISD-V500HN when:
Your components require up to 400 mm of vertical measuring capacity while still fitting within the same 470 × 370 mm X/Y measuring area.
Product Configuration
Manufacturer: INSIZE
Product Series: ISD-V500N Series CNC Vision Measuring Systems
Available Models: ISD-V500N, ISD-V500HN
Measurement Type: Non-contact optical dimensional measurement
Drive System: Automatic X/Y/Z servo drive
Important Ordering Note
These are large, precision metrology machines weighing approximately 870–900 kg depending on configuration. Because installation, freight, power requirements, and site preparation can be significant considerations, customers should verify the selected model's measuring range and installation requirements before ordering.
