Odd-fluted tools — 3, 5 or 7 flutes — can't be measured on a flat-anvil micrometer; the reading falls between the flutes. The INSIZE 3590 digital V-anvil micrometer uses a 60° V matched to the flute count to read the true diameter of taps, reamers and end mills.

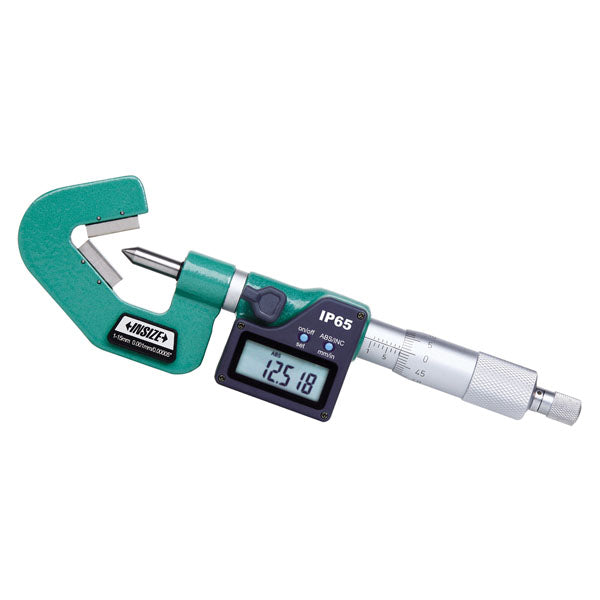

A V-anvil micrometer for odd-fluted cutting tools
Key features of the V-anvil micrometer
-
Specialized V-anvil design for measuring odd-fluted components
-
Designed for measuring taps, reamers, end mills, and other fluted cutting tools
-
Available in 3-, 5-, and 7-flute configurations
-
0.001 mm / 0.00005" resolution
-
±6 µm to ±8 µm accuracy depending on model
-
IP65 dust and water protection
-
Carbide measuring faces
-
Ratchet stop for consistent measuring force
-
Metric/inch conversion
-
Zero/set function
-
Data output interface
-
Automatic power-off
-
Supplied with setting standards
-
60° V-anvil geometry
Model Specifications
| Model |
Flutes |
Measuring Range |
Accuracy |
Resolution |
| 3590-803A |
3 |
65–80 mm / 2.6–3.2" |
±6 µm |
0.001 mm / 0.00005" |
| 3590-953A |
3 |
80–95 mm / 3.2–3.6" |
±7 µm |
0.001 mm / 0.00005" |
| 3590-855A |
5 |
65–85 mm / 2.6–3.4" |
±7 µm |
0.001 mm / 0.00005" |
| 3590-1055A |
5 |
85–105 mm / 3.4–4.2" |
±8 µm |
0.001 mm / 0.00005" |
| 3590-857A |
7 |
65–85 mm / 2.6–3.4" |
±7 µm |
0.001 mm / 0.00005" |
V-Anvil Measurement for Fluted Components
The V-anvil configuration provides a dedicated measuring method for determining the diameter of components with odd numbers of flutes. This makes the 3590 particularly useful for inspection of cutting tools and other precision-machined components where the geometry of the flutes must be taken into account during measurement.
The 60° V-anvil arrangement is matched to the intended flute configuration, allowing the appropriate model to be selected according to the number of flutes and diameter being inspected.
Digital Measurement & Data Output
The digital display provides high-resolution measurements in either metric or inch units. The instrument includes a data output interface for transferring measurement results to compatible data-collection systems, making it suitable for quality-control and inspection workflows.
The ratchet stop helps provide consistent measuring force, while the carbide measuring faces are designed for durability during repeated use.
Where this V-anvil micrometer is used
The INSIZE 3590 is suitable for precision inspection of:
Models Available from CRB Supply
3590-803A — 65–80 mm / 2.6–3.2", 3 Flutes
3590-953A — 80–95 mm / 3.2–3.6", 3 Flutes
3590-855A — 65–85 mm / 2.6–3.4", 5 Flutes
3590-1055A — 85–105 mm / 3.4–4.2", 5 Flutes
3590-857A — 65–85 mm / 2.6–3.4", 7 Flutes
Product Information
Manufacturer: INSIZE
Series: 3590
Product Type: Digital V-Anvil Micrometer
Flute Configurations: 3, 5, and 7
Resolution: 0.001 mm / 0.00005"
Anvil Angle: 60°
Measuring Faces: Carbide
Protection: IP65
Data Output: Yes
