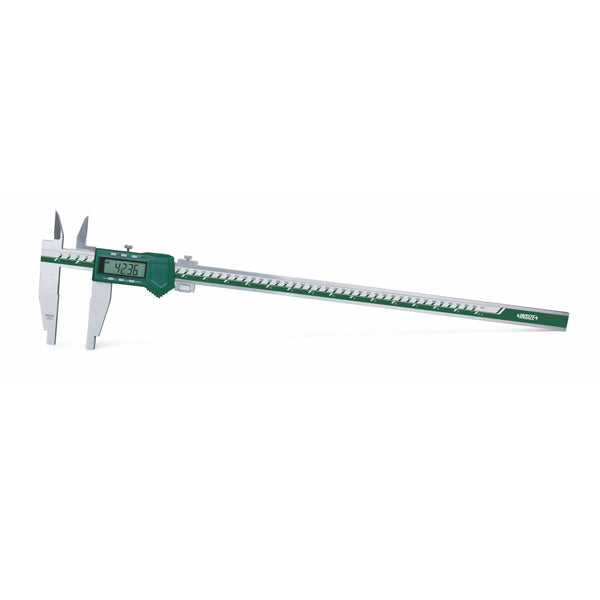

The caliper you reach for all day shouldn't make you squint at a vernier — and it should still reach big parts. The INSIZE 1136-1002 is a 0–1000 mm (0–40") digital caliper for inside, outside, depth and step measurement, with a clear readout, 0.01 mm resolution and a data interface.
A 1000 mm digital caliper for everyday large-part inspection

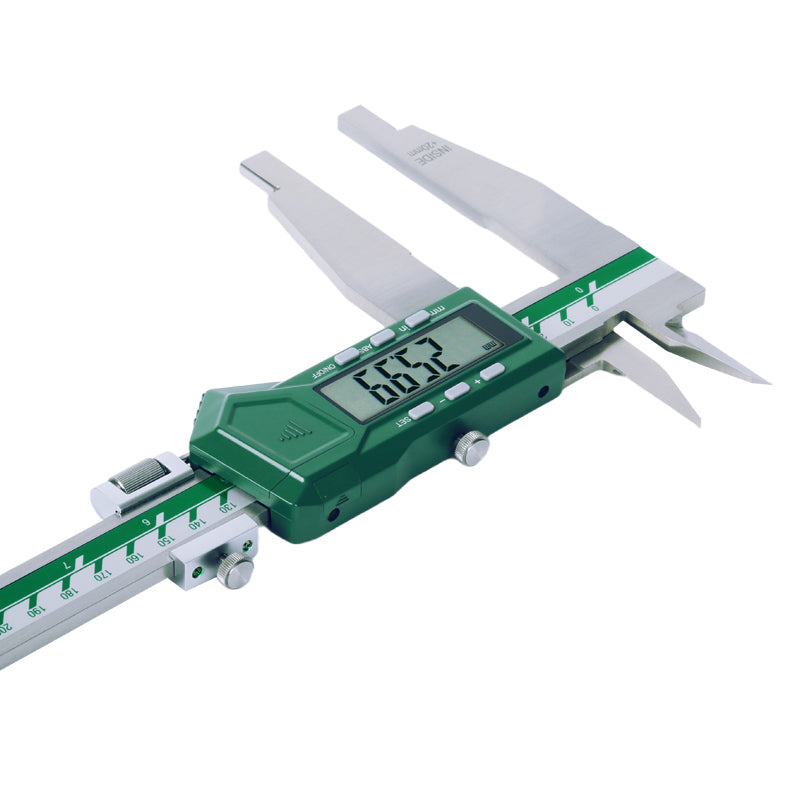

The 1136-1002 gives you a full meter of capacity with the familiar four-in-one caliper measurements and a crisp LCD, plus absolute origin, data preset and an output interface for SPC collection.
What you measure with the 1136-1002 caliper

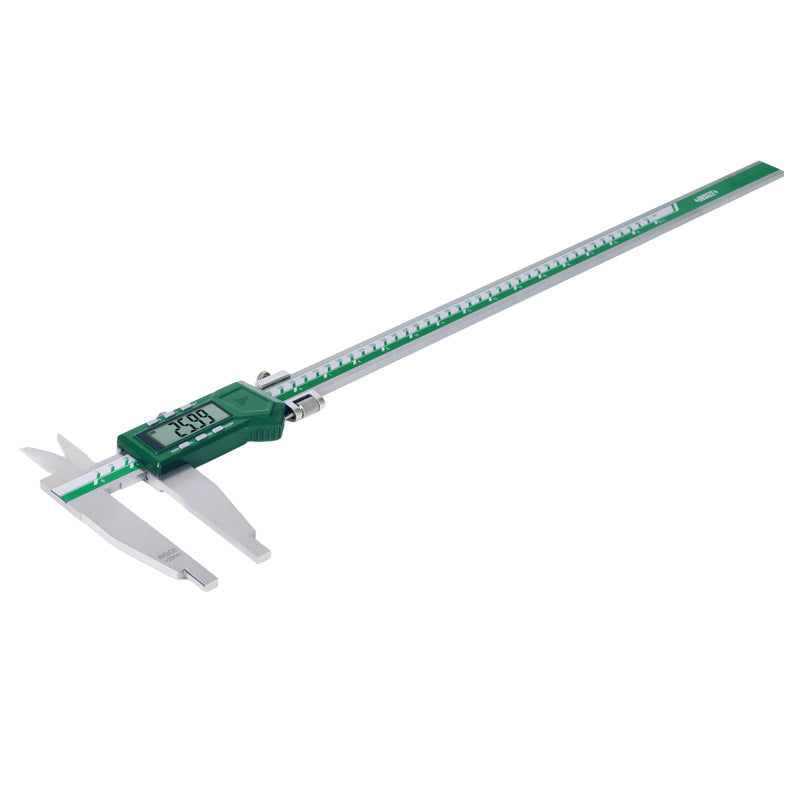

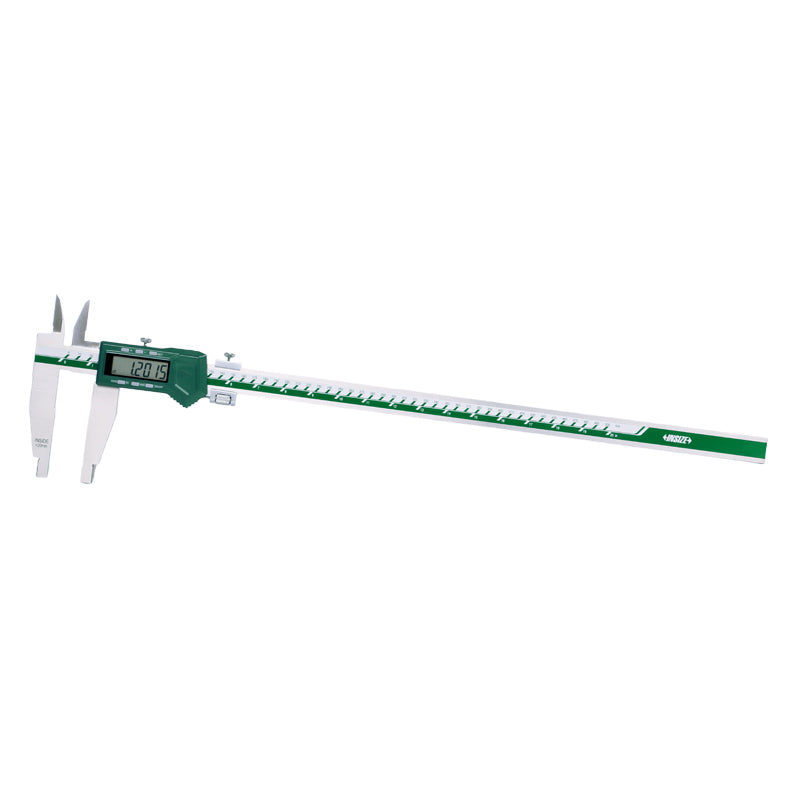

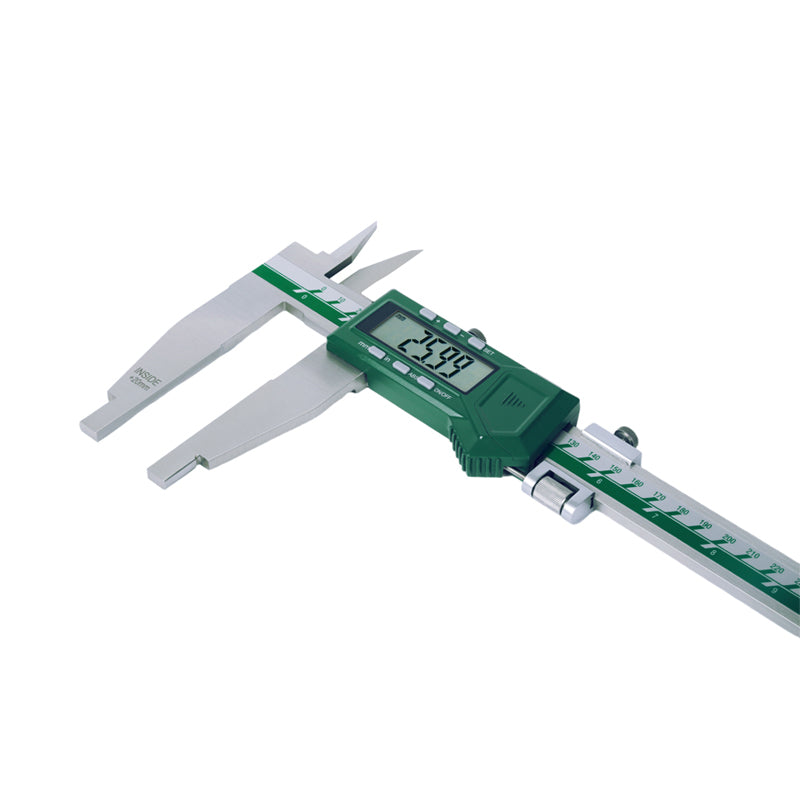

Like any caliper but at scale, the 1136-1002 handles outside dimensions on the main jaws, inside dimensions on the upper jaws, depth with the blade and step measurements — across a 0–1000 mm range.
INSIZE 1136-1002 digital caliper specifications
- Measuring range: 0–1000 mm / 0–40"
- Accuracy: ±0.08 mm; resolution: 0.01 mm / 0.0005"
- Inside, outside, depth and step measurement
- Functions: on/off, zero, mm/inch, ABS, data preset
- Data output interface for SPC
- Hardened stainless steel; CR2032 battery; non-waterproof
- 1136 series also in 300–2000 mm ranges, wired or wireless
- INSIZE part no. 1136-1002
Where a 0–1000 mm caliper is used
The meter capacity suits large machined plates, fabrications, castings and oversized turned parts that a 150–300 mm caliper can't span — in machine shops, fabrication and final inspection.
Need the full numbers? View the INSIZE 1136 spec sheet (PDF).
