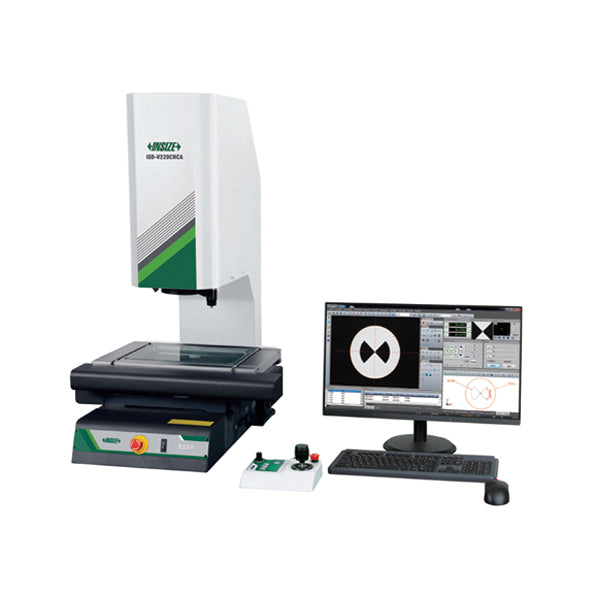

Insize Cnc Vision Measuring System (With Computer), 8.66x4.72x5.90", Motorized Zoom Lens

Insize Cnc Vision Measuring System (With Computer), 8.66x4.72x5.90", Motorized Zoom Lens

$47,843.22

Notify me when back in stock

  • Stage size 17.72×11.02”. Class stage size 12.05×7.72".Resolution of X/Y/Z axis .00002".
  • Accuracy of X/Y axis ≤(98.4+10L)uin (L is the measuring length in inch). Repeatability of X/Y axis .00008".
  • Objective 0.7X-4.5X(zoom). Working distance 3.62". Magnification 20X-128X (on 19.5" monitor).
  • Camera 1.2" color CCD, 0.4M pixel. View field (diagonal length .07-.44”). Max. height of workpiece 6.30”. Max. weight of workpiece 66lb.
  • Operation system Windows 7/8/10.
Description
  • Stage size 17.72×11.02”. Class stage size 12.05×7.72".Resolution of X/Y/Z axis .00002".
  • Accuracy of X/Y axis ≤(98.4+10L)uin (L is the measuring length in inch). Repeatability of X/Y axis .00008".
  • Objective 0.7X-4.5X(zoom). Working distance 3.62". Magnification 20X-128X (on 19.5" monitor).
  • Camera 1.2" color CCD, 0.4M pixel. View field (diagonal length .07-.44”). Max. height of workpiece 6.30”. Max. weight of workpiece 66lb.
  • Operation system Windows 7/8/10.
