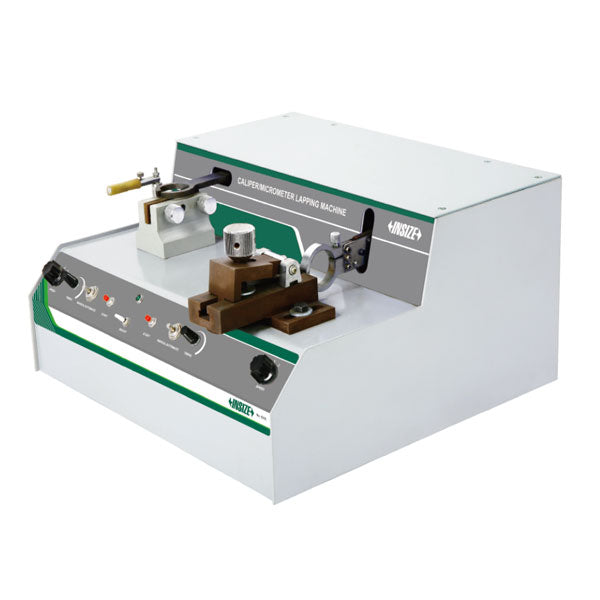

INSIZE 6318 Caliper/Micrometer Lapping Machine
The INSIZE 6318 Caliper/Micrometer Lapping Machine is a precision maintenance machine designed for restoring and finishing the measuring surfaces of caliper lower jaws and outside micrometers. It provides controlled lapping operations to help maintain the flatness and condition of precision measuring surfaces used in dimensional inspection.
The 6318 is suitable for 0–300 mm range calipers and 0–100 mm range outside micrometers. Independent controls for caliper and micrometer lapping allow the operator to adjust lapping speed and time according to the application.
Key Features
-
Designed for lapping the measuring surfaces of caliper lower jaws and outside micrometers
-
Suitable for calipers with measuring ranges up to 300 mm
-
Suitable for outside micrometers with measuring ranges up to 100 mm
-
Independent caliper and micrometer lapping controls
-
3-step lapping speed adjustment for calipers
-
3-step lapping speed adjustment for micrometers
-
Adjustable lapping time
-
Manual control or time-control operation
-
Dedicated start controls for caliper and micrometer lapping
-
Supplied with a caliper lapping block
-
Diamond lapping paste included for caliper lapping
-
Micrometer lapping blocks available separately
-
Designed for precision instrument maintenance and refurbishment
Applications
The INSIZE 6318 is designed for maintenance and precision servicing of:
-
Digital calipers
-
Vernier calipers
-
Dial calipers
-
Outside micrometers
-
Precision measuring tools
-
Metrology equipment
-
Inspection and calibration departments
-
Machine-shop measuring equipment
Controlled Lapping Operation
The 6318 provides separate controls for caliper and micrometer lapping operations. Operators can adjust the lapping speed and lapping time, while manual or time-controlled operation provides flexibility for different measuring surfaces and maintenance requirements.
This controlled process is intended to help restore the condition of worn or imperfect measuring surfaces while providing a repeatable method for precision-tool maintenance.
Caliper Lapping
The included caliper lapping block is designed for lapping the measuring surfaces of caliper lower jaws. The machine is suitable for calipers with measuring ranges up to 300 mm.
Micrometer Lapping
The 6318 can also be used for lapping the measuring surfaces of outside micrometers up to 100 mm. Micrometer lapping blocks are available separately in different size ranges.
Optional Micrometer Lapping Blocks:
| Accessory | Micrometer Range | Contents |
|---|---|---|
| 6307-1 | 0–25 mm | Includes 4 lapping blocks |
| 6307-2 | 25–50 mm | Includes 4 lapping blocks |
| 6307-3 | 50–75 mm | Includes 4 lapping blocks |
| 6307-4 | 75–100 mm | Includes 4 lapping blocks |
Technical Specifications
| Specification | 6318 |
|---|---|
| Product Type | Caliper/Micrometer Lapping Machine |
| Caliper Capacity | 0–300 mm range |
| Outside Micrometer Capacity | 0–100 mm range |
| Power Supply | 220V, 50/60Hz |
| Dimensions (L × W × H) | 430 × 400 × 210 mm |
| Weight | 28 kg |
| Caliper Speed Adjustment | 3 steps |
| Micrometer Speed Adjustment | 3 steps |
What's Included
-
INSIZE 6318 Caliper/Micrometer Lapping Machine
-
Caliper lapping block
-
Diamond lapping paste for caliper lapping
Micrometer lapping blocks are optional accessories and are available separately in 0–25 mm, 25–50 mm, 50–75 mm, and 75–100 mm ranges.
Product Information
Manufacturer: INSIZE
Model: 6318
Product Type: Caliper/Micrometer Lapping Machine
Caliper Capacity: 0–300 mm
Micrometer Capacity: 0–100 mm
Power: 220V, 50/60Hz
Dimensions: 430 × 400 × 210 mm
Weight: 28 kg
