INSIZE 5318-MD60 Digital Measuring Microscope — Basic Type | 12.5X–80X

Compact Digital Measurement and Inspection Without a Separate Computer

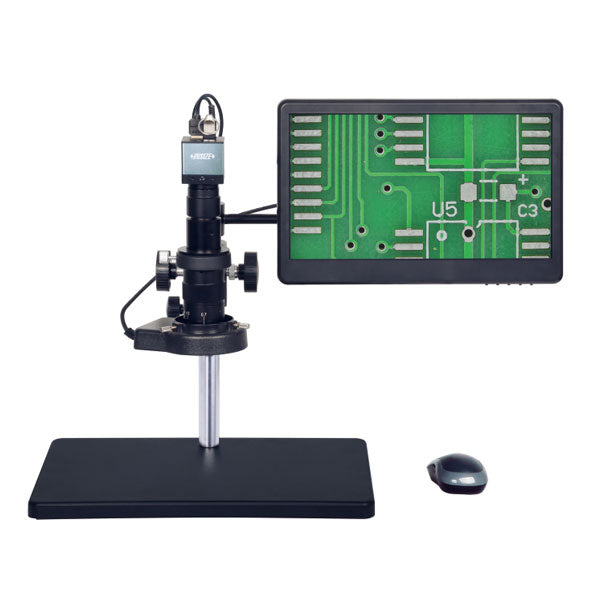

The INSIZE 5318-MD60 Digital Measuring Microscope is a compact digital inspection and measurement system designed for manufacturing, quality control, and dimensional inspection applications.

The system combines a 2 MP CMOS camera, 1920 × 1080 Full HD imaging, 12.5X–80X magnification, integrated measurement software, and a 13.3-inch LCD display in a straightforward benchtop configuration.

Built-in software allows operators to perform measurements directly from the microscope using the included mouse, eliminating the need for a separate computer for normal operation. Measurement results can also be exported to Microsoft Excel-compatible workflows for documentation and quality-control records.

The 5318 series is available in two configurations: the 5318-MD60 without an X-Y stage and the 5318-MD60-XY with an X-Y metal stage.

Key Features

12.5X–80X Magnification

The 5318-MD60 uses a 0.7X–4.5X zoom lens to provide approximately 12.5X–80X magnification.

This range provides flexibility for both general component inspection and examination of smaller features.

2MP Full HD Digital Imaging

The microscope uses a 1/2.8-inch CMOS sensor with:

• 2 MP imaging

• 1920 × 1080 resolution

• 1080P high-definition output

The Full HD image provides clear live viewing on the included 13.3-inch display.

Built-In Measurement Software

The 5318-MD60 includes integrated measurement software that operates directly from the microscope.

The software provides tools for common dimensional inspection tasks including:

• Point measurements

• Line measurements

• Distance measurements

• Circle measurements

• Angle measurements

• Calibration

• Image inspection

Because the software is built into the microscope system, a separate computer is not required for normal measurement operation.

13.3-Inch LCD Display

A 13.3-inch LCD display is included with the microscope, providing a larger viewing area for inspection and measurement.

This is particularly useful for production environments where operators need to inspect components without continuously looking through a conventional microscope eyepiece.

Measurement Data Export

Measurement results can be sent to Excel, making it easier to maintain inspection records, document measurements, and incorporate microscope measurements into quality-control workflows.

Image Capture and USB Storage

The system allows operators to capture images and save them to the included 16 GB USB flash drive.

This can be useful for:

• Inspection documentation

• Defect records

• Quality reports

• Component comparison

• Training

• Customer documentation

Adjustable LED Illumination

Integrated LED illumination provides lighting for viewing the workpiece during inspection.

Brightness can be adjusted to improve visibility of different surfaces and features.

Model Configurations

The 5318 series is available in two configurations.

5318-MD60 — Without X-Y Stage

The standard 5318-MD60 is suited to applications where the operator primarily needs digital magnified viewing and basic measurement functionality.

It provides the same optical and digital imaging system as the XY version without the additional X-Y positioning stage.

5318-MD60-XY — With X-Y Metal Stage

The 5318-MD60-XY adds an X-Y metal stage for applications requiring controlled workpiece positioning during dimensional measurement.

The X-Y stage can make it easier to locate features and systematically move the workpiece beneath the microscope.

Measurement & Inspection Applications

The INSIZE 5318-MD60 can be used for a wide variety of dimensional and visual inspection tasks.

Dimensional Inspection

Use the integrated measurement software to inspect dimensions and geometric features on small components.

Component Comparison

Digital images displayed on the LCD can be used to compare components and identify visible differences between parts.

Surface Inspection

The microscope provides magnified digital viewing for examining:

• Surface defects

• Machining marks

• Edges

• Small features

• Manufacturing imperfections

Quality Documentation

Captured images and measurement results can be incorporated into inspection and quality-control records.

Applications

Typical applications include:

• Precision component inspection

• CNC machined-part inspection

• Tool inspection

• Electronics inspection

• Small-part measurement

• Surface inspection

• Incoming inspection

• In-process inspection

• Final quality inspection

• Research and development

• Production quality control

Industries

The 5318-MD60 is suitable for inspection environments including:

• Precision manufacturing

• CNC machining

• Metalworking

• Electronics

• Automotive

• Aerospace

• Medical device manufacturing

• Tool and die

• Mold manufacturing

• General manufacturing

• Quality-control laboratories

• Research and development

Technical Specifications

Standard Equipment

The INSIZE 5318-MD60 includes:

• Main microscope unit

• 13.3-inch LCD display

• 0.7X–4.5X lens

• Mouse

• Glass calibration rule

• White/black inspection plate

• 16 GB USB flash drive

• LED illumination

• Power supply

The 5318-MD60-XY configuration additionally includes the X-Y metal stage.

Built-In Measurement Software

The integrated software is designed to provide a straightforward measurement workflow without requiring an external computer.

Measurement functions include tools for creating and measuring geometric features, calibrating the system, and viewing the live microscope image.

The software interface provides access to:

• Measuring tools

• Auxiliary tools

• Calibration

• Line measurement

• Real-time image viewing

Measurement results can be exported to Excel for additional analysis or inspection documentation.

Why Choose the INSIZE 5318-MD60?

The 5318-MD60 is designed for buyers who need more than a conventional digital microscope but do not require the complexity or cost of a full-scale toolmaker measuring microscope.

Its combination of Full HD imaging, 12.5X–80X magnification, integrated measurement software, a 13.3-inch display, USB image storage, and Excel-compatible measurement output provides a practical digital inspection platform in a compact package.

The choice between the two configurations is straightforward:

Choose the 5318-MD60 when you need the microscope and measurement system without an X-Y positioning stage.

Choose the 5318-MD60-XY when controlled X-Y workpiece positioning is important to your inspection process.

Technical Documentation

Manufacturer: INSIZE
Product Family: Digital Measuring Microscopes — Basic Type
Models: 5318-MD60 / 5318-MD60-XY
Magnification: 12.5X–80X
Sensor: 1/2.8" CMOS
Resolution: 1920 × 1080
Display: 13.3" LCD

Refer to the official INSIZE documentation for complete specifications, configuration details, measurement functions, and included equipment.
