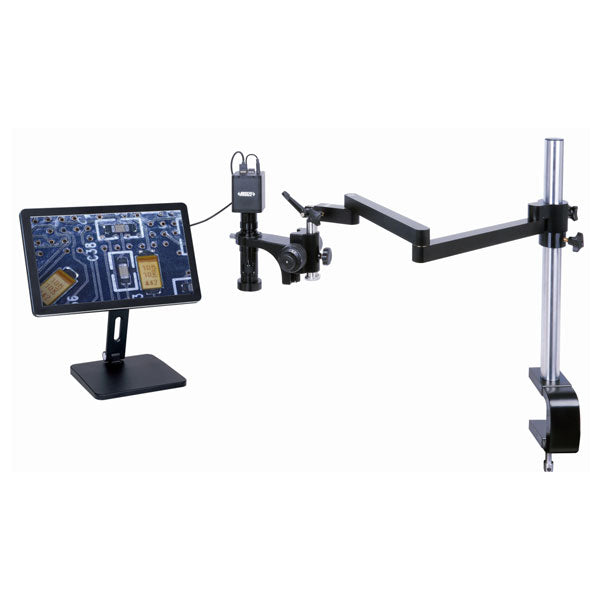

The INSIZE 5317-AF110 Flexible Arm Auto Focus Digital Microscope is a professional digital inspection microscope designed for convenient high-magnification observation, documentation, and measurement of industrial components.
The system combines a 2 MP CMOS camera, 1920 × 1080 Full HD imaging, automatic focusing, a 13.3-inch LCD display, built-in measurement software, and a flexible arm with desktop clamp. Its 20X–123X magnification range provides a broad field of view for general inspection while allowing operators to examine smaller surface features in greater detail.
Unlike conventional microscopes that require a dedicated computer, the 5317-AF110 includes built-in software that can be operated directly using the supplied mouse. Images and videos can be captured and saved to the included USB flash drive.
The flexible-arm design also makes the system well suited to inspection environments where workpieces vary in size, shape, or position.
Key Features
20X–123X Digital Magnification
The standard optical configuration provides 20X–123X magnification, giving operators a useful range for general-purpose industrial inspection and detailed examination of smaller features.
An optional 1X camera adapter can increase magnification to approximately 40X–246X, while an optional 2X auxiliary objective can provide configurations up to approximately 80X–492X.
Automatic Focus
The integrated autofocus camera automatically adjusts focus to help maintain a sharp image during inspection.
This is particularly useful when inspecting components with varying surface heights or when operators need to quickly move between different features.
Full HD 1080P Imaging
The microscope uses a 1/2.8-inch CMOS sensor with 2 MP resolution and 1920 × 1080 Full HD output.
The camera supports up to 60 frames per second, providing smooth live viewing during inspection.
13.3-Inch LCD Display
The integrated 13.3-inch LCD display allows operators to inspect components directly on the microscope without requiring a separate computer monitor.
Flexible Arm with Desktop Clamp
The 5317-AF110 uses a flexible support arm with a desktop clamp, allowing the microscope head to be positioned over the workpiece as needed.
This configuration is particularly useful for inspection stations where the microscope needs to accommodate different workpiece positions.
Built-In Measurement Software
Measurement functionality is integrated directly into the microscope system, allowing operators to perform measurements without requiring a separate computer.
The system can be operated using the supplied mouse.
Image and Video Capture
Operators can capture photographs and videos during inspection and save them to the included 16 GB USB flash drive.
The system also supports:
-
Picture review
-
Picture comparison
-
Image storage
-
Video recording
Automatic Exposure and White Balance
Automatic exposure and white balance help maintain consistent image quality as lighting and workpiece conditions change.
Manual image adjustments are also available for:
-
Brightness
-
Contrast ratio
-
Gain
Display Crosshair
The microscope supports an on-screen crosshair that can be displayed in multiple colors, including:
-
Blue
-
Green
-
Red
-
Yellow
-
Black
-
Brown
This provides a visual reference for positioning and inspection.
Magnification & Optical Configuration
The standard configuration includes a 1X auxiliary objective and 0.5X camera adapter.
| Configuration |
Magnification |
Focus Distance |
View Field |
| 1X objective + 0.5X adapter |
20X–123X |
48–84 mm |
13 × 7 to 2.2 × 1 mm |
| 1X objective + 1X adapter |
40X–246X |
48–84 mm |
6.3 × 3.5 to 1.1 × 0.5 mm |
| 2X objective + 0.5X adapter |
40X–246X |
24–42 mm |
6.5 × 3.5 to 1.1 × 0.5 mm |
| 2X objective + 1X adapter |
80X–492X |
24–42 mm |
3.3 × 1.8 to 0.6 × 0.3 mm |
The standard configuration provides a 20X–123X range, while optional optical components allow the microscope to be configured for higher magnification applications.
Measurement Accuracy
When used with the specified optical configurations, the manufacturer specifies measurement accuracy of up to:
±0.02 mm
This provides quantitative measurement capability in addition to conventional visual inspection.
Technical Specifications
| Specification |
5317-AF110 |
| Product type |
Flexible Arm Auto Focus Digital Microscope |
| Display |
13.3-inch LCD |
| Magnification |
20X–123X |
| Sensor |
1/2.8" CMOS |
| Pixel |
2 MP |
| Image resolution |
1920 × 1080 |
| Frame rate |
60 fps |
| Focus |
Automatic focus |
| Standard auxiliary objective |
1X |
| Standard camera adapter |
0.5X |
| Focus distance |
48–84 mm with standard configuration |
| Measuring accuracy |
±0.02 mm |
| Image adjustment |
Brightness, contrast ratio, gain |
| White balance |
Automatic |
| Exposure |
Automatic |
| Image/video storage |
USB flash drive |
| Display crosshair |
Available |
| Operation |
Mouse-controlled built-in software |
| Video output |
HDMI |
| Power |
Power adapter |
| Overall height |
600 mm |
| Net weight |
8.5 kg |
| Stand configuration |
Desktop clamp with flexible arm |
Standard Equipment
The INSIZE 5317-AF110 includes:
Optional Accessories
The system can be expanded with additional optical components for different inspection requirements.
1X Camera Adapter
The optional 1X camera adapter changes the standard 20X–123X configuration to approximately 40X–246X with the included 1X auxiliary objective.
2X Auxiliary Objective
The optional 2X auxiliary objective provides higher magnification and shorter working distance for smaller features.
With the optional 1X camera adapter, the system can reach approximately 80X–492X.
