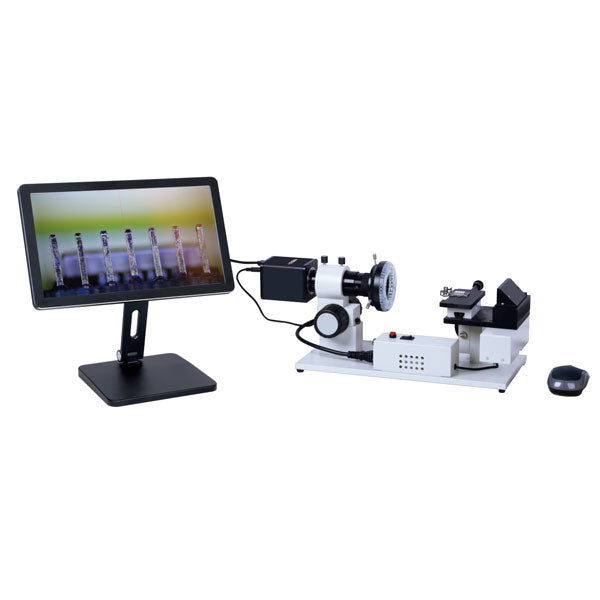

INSIZE 5316-HM810 Horizontal Microscope with Display | 10.5X–62.5X

The INSIZE 5316-HM810 Horizontal Microscope with Display is a digital inspection and measurement microscope designed for viewing and measuring components where a conventional vertical microscope configuration may not provide the required access.

Its horizontal optical arrangement provides a convenient viewing position for inspecting vertical surfaces, side walls, profiles, edges, recesses, holes, and other difficult-to-access features. The system combines 10.5X–62.5X magnification, a 2MP CMOS camera, 1920 × 1080 Full HD imaging, built-in measurement software, and integrated LED illumination in a self-contained inspection system.

The 5316-HM810 can be operated directly through the included display and mouse without requiring a separate computer for basic operation. Images can also be captured and saved to a USB flash drive for documentation and inspection records.

Key Features

Horizontal Microscope Configuration

The horizontal configuration is designed to make inspection of vertical and side-facing features easier than with a conventional top-down microscope.

This makes the 5316-HM810 particularly useful for examining:

• Vertical component surfaces

• Side walls

• Machined profiles

• Edges and steps

• Recesses and cavities

• Small holes and internal features

• Tooling and dies

• Precision-machined components

10.5X–62.5X Magnification

The microscope provides a 10.5X–62.5X magnification range, allowing operators to move from a broader inspection view to higher magnification for detailed examination of small features.

2MP Full HD Digital Imaging

The system uses a 1/2.8" CMOS sensor with 2MP imaging and 1920 × 1080 resolution.

The 1080P digital image provides a clear on-screen view for inspection and measurement applications.

Built-In Measurement Software

The 5316-HM810 includes integrated measurement software that operates directly through the microscope system.

The software provides measurement and inspection tools while allowing the system to operate without a separate computer. Operation is performed using the included mouse.

±0.02 mm Measuring Accuracy

The manufacturer specifies ±0.02 mm measuring accuracy, providing a practical measurement capability for dimensional inspection and quality-control applications.

115 mm Focus Distance

The 115 mm focus distance provides useful clearance between the optical system and the workpiece, helping accommodate components and tooling during inspection.

Adjustable Digital Image Controls

The system provides adjustable image parameters including:

• Brightness

• Contrast

• Gain

• Automatic white balance

• Automatic exposure

These controls allow the operator to optimize the displayed image for different workpiece materials, surfaces, and lighting conditions.

Built-In LED Illumination

Integrated LED illumination provides lighting for inspection and measurement. The system's configuration includes an LED ring light and contour illumination to help illuminate workpiece features from the appropriate viewing direction.

USB Image Storage

Images can be captured and saved directly to the included 16GB USB flash drive, making it possible to document inspection results without connecting the microscope to a separate computer.

On-Screen Crosshair

The system supports a display crosshair that can be configured in multiple colors, helping operators position and reference features during inspection and measurement.

Applications

The INSIZE 5316-HM810 is well suited for:

• Precision component inspection

• Dimensional measurement

• CNC-machined part inspection

• Side-wall inspection

• Profile inspection

• Edge inspection

• Recess and cavity inspection

• Tooling inspection

• Die and mold inspection

• Small-part inspection

• Quality control

• Production inspection

• Engineering and R&D

Industries

The horizontal microscope can be used in a variety of precision manufacturing and inspection environments, including:

• CNC Machining

• Precision Manufacturing

• Tool & Die Manufacturing

• Mold Manufacturing

• Automotive

• Aerospace

• Electronics

• Medical Device Manufacturing

• General Industrial Manufacturing

• Quality Control

• Research & Development

Technical Specifications

Standard Equipment

The INSIZE 5316-HM810 includes:

• Main microscope unit

• 1X camera adapter

• 1X auxiliary adapter

• Plastic calibration rule

• 16GB USB flash drive

• Mouse

• LED ring light

Measurement and Inspection Software

The integrated software provides tools for digital inspection and measurement directly through the microscope's display.

The system includes functions for working with the live image, measurement tools, auxiliary tools, calibration, and image documentation.

Because the software is built into the system, operators can perform basic inspection and measurement without setting up a separate computer workstation.

Why Choose the INSIZE 5316-HM810?

The 5316-HM810 is designed for inspection situations where access and viewing orientation are just as important as magnification.

Its horizontal configuration makes it particularly useful for examining side-facing and vertical features that can be difficult to inspect using a conventional vertical microscope. Combined with 10.5X–62.5X magnification, Full HD imaging, integrated measurement software, and ±0.02 mm specified measuring accuracy, it provides a practical digital inspection solution for manufacturing and quality-control environments.

Product Information

Manufacturer: INSIZE
Model: 5316-HM810
Product Type: Horizontal Microscope with Display
Magnification: 10.5X–62.5X
Sensor: 1/2.8" CMOS
Resolution: 1920 × 1080
Measuring Accuracy: ±0.02 mm
Focus Distance: 115 mm
Output: HDMI

Technical Documentation

For complete manufacturer specifications, installation information, and technical details, refer to the official INSIZE 5316 specification sheet.

INSIZE 5316 Specification Sheet:
https://www.insize.com/pdf-viewer?=/PDF/5316.pdf

Need Help Selecting the Right Microscope?

Choosing the right inspection microscope depends on the required magnification, working distance, viewing orientation, measurement accuracy, workpiece geometry, and application.

If you're unsure whether the INSIZE 5316-HM810 Horizontal Microscope is the right system for your application, contact CRB Supply before ordering. Our team can help you compare INSIZE microscope configurations and determine which system best fits your inspection requirements.
