INSIZE 5313-S407 3D Manual Rotation Microscope with Display | 18X–120X

360° Manual Rotation for 3D Inspection of Complex Components

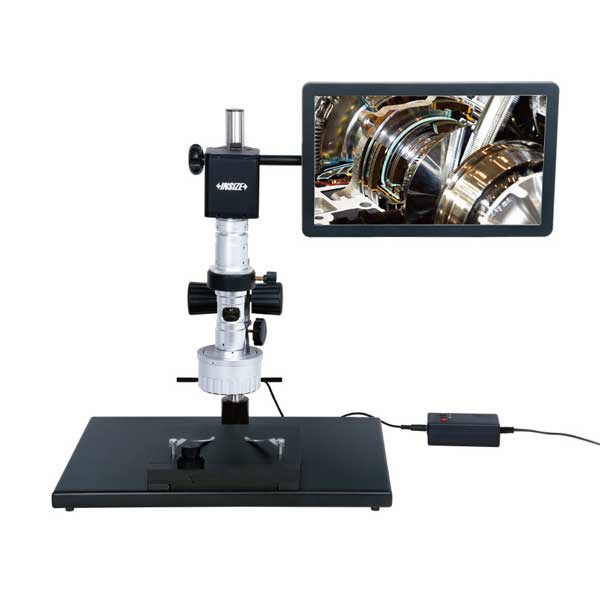

The INSIZE 5313-S407 3D Manual Rotation Microscope is a digital inspection microscope designed for three-dimensional observation of components with curved, recessed, or difficult-to-view surfaces.

Unlike conventional digital microscopes that provide a fixed viewing direction, the 5313-S407 uses a 360° manually rotatable optical system to allow operators to inspect a workpiece from multiple viewing angles. This makes the system particularly useful for examining convex surfaces and the walls of holes, as well as other features that can be difficult to inspect from directly above.

The system combines 18X–120X magnification, Full HD 1920 × 1080 imaging, a 45° viewing angle, a 13.3-inch LCD display, an X-Y metal stage, and manual 360° rotation in a compact benchtop inspection platform.

Images and videos can be captured and saved to a USB flash drive, allowing inspection results to be documented and reviewed.

Key Features

18X–120X Magnification

The 5313-S407 provides an 18X–120X magnification range, allowing operators to switch between a broader inspection view and higher magnification for smaller features.

The optical system uses a 0.7X–4.5X zoom configuration.

360° Manual Rotation

The defining feature of the 5313-S407 is its 360° manually rotatable lens system.

The microscope allows the viewing direction to be changed around the workpiece, including inspection at:

• 0°

• 90°

• 180°

• 270°

This provides a more complete three-dimensional view of components without requiring the operator to reposition the entire microscope.

45° Viewing Angle

The optical system uses a 45° viewing angle, allowing operators to inspect surfaces from an oblique perspective.

This is particularly useful for examining:

• Convex surfaces

• Side walls

• Recessed areas

• Hole walls

• Edges

• Profiles

• Machined features

Full HD Digital Imaging

The microscope uses a 1/2.8-inch CMOS sensor with:

• 2 MP imaging

• 1920 × 1080 resolution

• 1080P Full HD output

• Up to 60 fps

The high-definition digital image provides a clear live view on the included display.

13.3-Inch LCD Display

The included 13.3-inch LCD display provides a large viewing area for inspection.

This allows operators to examine components on-screen rather than relying exclusively on a traditional eyepiece.

Integrated LED Illumination

The rotating optical system incorporates LED illumination to provide lighting at the inspection area.

An illumination controller allows the operator to adjust lighting conditions during inspection.

X-Y Metal Stage

The 5313-S407 includes an X-Y metal stage for controlled workpiece positioning.

The stage allows operators to move the component horizontally beneath the microscope while maintaining the desired viewing orientation.

Image and Video Capture

The microscope can capture both photographs and videos.

Captured files can be saved to the included 16 GB USB flash drive, making it possible to create digital inspection records without requiring a separate imaging system.

3D Inspection Capability

The 5313-S407 is designed specifically for applications where a conventional top-down microscope view is insufficient.

The rotating optical system allows operators to change the viewing direction while observing the same feature.

Convex Objects

The angled viewing system can help inspect curved or convex surfaces that may be difficult to evaluate from directly above.

Hole Wall Inspection

The 5313-S407 is particularly useful for viewing the walls of holes and recessed features.

Changing the viewing angle allows the operator to inspect interior surfaces that may otherwise be partially obscured.

Profile and Edge Inspection

The 45° viewing angle can provide additional visibility of:

• Edges

• Profiles

• Side surfaces

• Recesses

• Grooves

• Machined features

Manual Rotation System

The microscope's rotation mechanism allows the optical system to be manually rotated through 360°.

The rotation handle allows the operator to change the viewing direction while maintaining the workpiece in position.

This makes it possible to inspect a component from multiple perspectives without repeatedly removing and repositioning the workpiece.

Applications

The INSIZE 5313-S407 is suitable for inspection of:

• Precision machined components

• CNC parts

• Tooling

• Dies and molds

• Holes and bores

• Curved surfaces

• Convex components

• Recessed features

• Profiles

• Edges

• Small mechanical components

• Metal parts

• Plastic components

Typical Inspection Tasks

The microscope can be used for:

• 3D visual inspection

• Surface inspection

• Hole-wall inspection

• Profile inspection

• Edge inspection

• Defect identification

• Component comparison

• Image documentation

• Video documentation

• Production quality control

Industries

Typical applications include:

• Precision manufacturing

• CNC machining

• Tool and die

• Mold manufacturing

• Automotive

• Aerospace

• Electronics

• Medical device manufacturing

• Metalworking

• General manufacturing

• Quality control

• Research and development

• Inspection laboratories

Technical Specifications

Standard Equipment

The 5313-S407 includes:

• Main microscope unit

• 13.3-inch LCD display

• X-Y metal stage

• 16 GB USB flash drive

• White/black inspection plate

• Mouse

• Power adapters

• Rotation mechanism

• LED illumination system

• Illumination controller

Digital Imaging

The 5313-S407 provides a complete digital inspection workflow without requiring a separate microscope camera.

The integrated camera provides:

• 1920 × 1080 Full HD imaging

• 2 MP resolution

• Up to 60 fps

• HDMI output

• Photo capture

• Video recording

• USB storage

This allows inspection images and videos to be retained for quality documentation, training, component comparison, and production records.

Why Choose the INSIZE 5313-S407?

The 5313-S407 is designed for applications where viewing angle is as important as magnification.

Its 360° manual rotation system provides access to multiple viewing directions, while the 45° optical angle allows operators to examine side surfaces, curved features, recesses, and hole walls that can be difficult to inspect with a conventional fixed-view microscope.

The integrated Full HD camera and 13.3-inch display also make the system suitable for shared inspection environments where multiple operators need to view the same component.

Technical Documentation

Manufacturer: INSIZE
Product Family: 3D Manual Rotation Microscopes
Model: 5313-S407
Magnification: 18X–120X
Configuration: Manual 360° Rotation with Display
Sensor: 1/2.8" CMOS
Resolution: 1920 × 1080

Refer to the official INSIZE documentation for complete specifications, operating information, and standard equipment.

Product spec sheet

Need Help Selecting a 3D Inspection Microscope?

The right microscope depends on the feature geometry, required magnification, viewing angle, working distance, and whether manual or motorized rotation is required.

If you are comparing the 5313-S407 with INSIZE's motorized 3D rotation microscope or another digital measuring microscope, contact CRB Supply with your inspection requirements and workpiece dimensions.
