INSIZE 5302-AF105 Auto Focus Digital Microscope | Large View Field

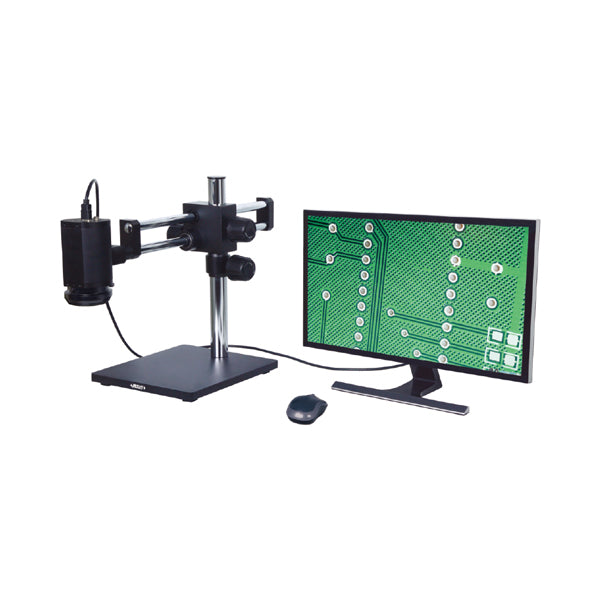

The INSIZE 5302-AF105 Auto Focus Digital Microscope is a large-view-field digital inspection system designed for precision manufacturing, quality control, component inspection, and applications requiring a wide working area.
The system combines an automatic-focus digital camera, 2MP imaging, Full HD 1920 × 1080 resolution, integrated measurement software, adjustable LED illumination, and HDMI/RJ45 connectivity. Its large field of view makes it particularly useful for inspecting larger components and locating features without repeatedly repositioning the microscope.
The 5302-AF105 can be connected to a display through HDMI and to a computer through RJ45, allowing the system to support both standalone inspection and computer-based measurement workflows.
Key Features
Large View Field
The 5302 series is designed for inspection applications where a larger viewing area is important.
Depending on the focus distance and magnification, the system provides view fields ranging from approximately:
24 × 14 mm to 415 × 225 mm
This makes the microscope suitable for both detailed inspection and broader component viewing.
Automatic Focus
The integrated autofocus camera automatically adjusts focus to provide a clear image of the inspection area.
The system also provides additional focus modes for situations where automatic focusing may require operator assistance, including one-shot focus and manual focus operation.
2MP Full HD Imaging
The 5302-AF105 uses a 1/2.8" CMOS sensor with 2MP imaging and 1920 × 1080 resolution.
The 1080P image provides a detailed digital view of the workpiece for inspection, measurement, and documentation.
Built-In Measurement Software
Measurement software is built into the microscope system for use with a connected display.
The software includes tools for:
-
Measurement
-
Calibration
-
Focus
-
Auxiliary tools
-
Crosshair display
Computer measurement software is also included for computer-based inspection workflows.
HDMI and RJ45 Connectivity
The microscope provides both:
-
HDMI output for connection to a display
-
RJ45 connection for computer-based operation
This allows the system to support display-based inspection while also providing a connection to a computer when more advanced measurement and documentation workflows are required.
Image and Video Capture
The microscope can capture still images and videos, allowing inspection results to be documented and saved.
The system includes a 16GB USB flash drive for image storage.
Adjustable Image Controls
The system provides automatic and manual image adjustments, including:
-
Automatic exposure
-
Automatic white balance
-
Brightness adjustment
-
Contrast adjustment
-
Gain adjustment
These controls allow operators to optimize the displayed image for different materials, surfaces, and inspection conditions.
Display Crosshair
The microscope supports an on-screen crosshair that can be displayed in multiple colors, helping operators locate and reference features during inspection.
Adjustable LED Illumination
The integrated LED illumination provides even lighting across the inspection area.
LED brightness can be adjusted to accommodate different workpiece surfaces and inspection conditions.
Magnification and View Field
The 5302 series provides a large range of viewing configurations depending on focus distance and display configuration.
| Focus Distance | Adjustable Magnification* | View Field |
|---|---|---|
| 100 mm | 3.9X–25.8X | 24 × 14 to 168 × 91 mm |
| 150 mm | 2.6X–20X | 30 × 17 to 240 × 128 mm |
| 200 mm | 2.1X–17X | 37 × 20 to 315 × 170 mm |
| 250 mm | 1.7X–14.7X | 42 × 24 to 385 × 210 mm |
| 270 mm | 1.4X–14X | 43 × 25 to 415 × 225 mm |
*Magnification and field of view depend on the selected focus distance and display configuration.
Measuring Accuracy
The manufacturer specifies the following measuring accuracy at the applicable optical magnifications:
| Optical Magnification | Measuring Accuracy |
|---|---|
| 2X | ±0.10 mm |
| 4X | ±0.10 mm |
| 6X | ±0.04 mm |
| 8X | ±0.02 mm |
| 14X | ±0.02 mm |
Measurement accuracy depends on the applicable magnification and inspection configuration.
Applications
The INSIZE 5302-AF105 is suitable for:
-
Large-component inspection
-
Precision component inspection
-
Dimensional inspection
-
CNC-machined part inspection
-
Manufacturing quality control
-
Surface inspection
-
Edge inspection
-
Profile inspection
-
Defect identification
-
Assembly inspection
-
Tooling inspection
-
Die and mold inspection
-
Production inspection
-
Engineering and R&D
Industries
The 5302-AF105 can be used in:
-
Precision Manufacturing
-
CNC Machining
-
Tool & Die Manufacturing
-
Mold Manufacturing
-
Automotive
-
Aerospace
-
Electronics
-
Medical Device Manufacturing
-
General Industrial Manufacturing
-
Quality Control
-
Production Inspection
-
Research & Development
Technical Specifications
| Specification | 5302-AF105 |
|---|---|
| Product Type | Auto Focus Digital Microscope |
| Configuration | Large View Field |
| Model | 5302-AF105 |
| Sensor | 1/2.8" CMOS |
| Pixel | 2 MP |
| Resolution | 1920 × 1080 |
| Auto Focus | Yes |
| Auto Focus Distance | 100 mm to ∞ |
| Output | HDMI, RJ45 |
| HDMI Frame Rate | 60 fps |
| RJ45 Frame Rate | 50 fps |
| Illumination | LED |
| Measurement Software | Built-in for display; computer software included |
| Image Capture | Yes |
| Video Capture | Yes |
| Image Controls | Brightness, contrast, gain |
| Automatic Controls | Exposure and white balance |
| Display Crosshair | Yes |
| Power Supply | Power adapter |
| Dimensions | 500 × 280 × 410 mm |
| Weight | 17 kg |
Standard Equipment
The INSIZE 5302-AF105 includes:
-
Main unit with stand
-
LED illumination
-
16GB USB flash drive
-
Mouse
-
HDMI cable
-
Network cable
-
Switch
-
Computer measurement software
-
Power adapters
Optional Accessories
The 5302 series can be configured with additional accessories depending on the inspection setup.
Available options include:
-
28" 4K TV — 5302-AF-TV28
-
32" 4K TV — 5302-AF-TV32
-
Computer — 5302-AF-COMPUTER
-
Controller — 5302-AF-CONTROLLER
Computer and Display Connectivity
The 5302-AF105 can be integrated into either a standalone display-based inspection station or a computer-based measurement workflow.
Display-Based Inspection
Connect the microscope to a compatible display through HDMI to operate the built-in measurement software and view the live inspection image.
Computer-Based Inspection
Connect the microscope to a computer through RJ45 and use the included computer measurement software for inspection, measurement, image capture, and documentation.
This flexibility allows the 5302-AF105 to be configured according to the requirements of the inspection environment.
Why Choose the INSIZE 5302-AF105?
The 5302-AF105 is designed for inspection applications where a conventional microscope's limited field of view can make locating and examining larger components inefficient.
Its combination of automatic focusing, large field of view, Full HD imaging, integrated measurement software, adjustable LED illumination, and HDMI/RJ45 connectivity provides a flexible inspection solution for manufacturing and quality-control environments.
The ability to operate with either a display or computer also makes the system adaptable to different inspection workflows.
Product Information
Manufacturer: INSIZE
Model: 5302-AF105
Product Type: Auto Focus Digital Microscope
Configuration: Large View Field
Sensor: 1/2.8" CMOS
Pixel: 2 MP
Resolution: 1920 × 1080
Auto Focus: Yes
Auto Focus Distance: 100 mm to ∞
Output: HDMI / RJ45
Technical Documentation
For complete manufacturer specifications, configuration information, and operating details, refer to the official INSIZE 5302 specification sheet.
INSIZE 5302 Specification Sheet:
https://www.insize.com/pdf-viewer?=/PDF/5302.pdf
