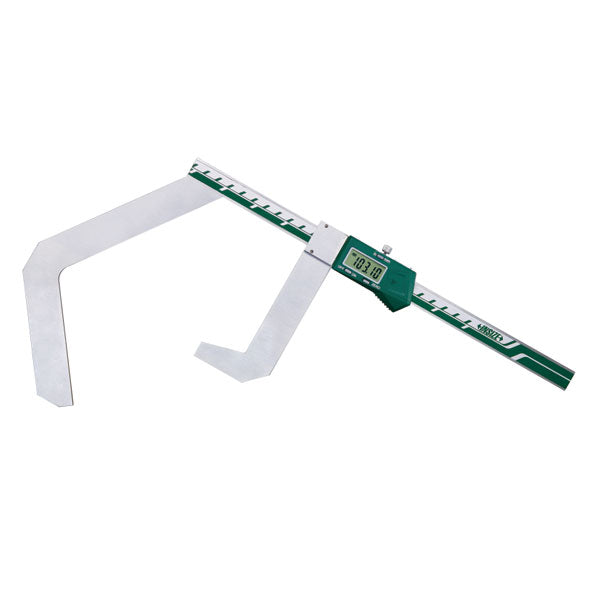

INSIZE 1529 Digital V-Type Caliper
The INSIZE 1529 Digital V-Type Caliper is a specialized precision measuring instrument designed for measuring the outside diameter of fluted components. Its V-type measuring geometry provides a dedicated solution for dimensional inspection of components with different flute configurations, including cutting tools, taps, reamers, end mills, and other precision-machined parts.
The 1529 series is available in 5-, 19-, 23-, and 31-flute configurations, allowing the appropriate caliper to be selected according to the component being inspected. Each model provides a Ø50–Ø200 mm (2–8") measuring range, ±0.06 mm accuracy, and 0.01 mm / 0.0005" resolution.
Key Features
-
Specialized V-type design for measuring fluted components
-
Available for 5-, 19-, 23-, and 31-flute configurations
-
Ø50–Ø200 mm / 2–8" measuring range
-
±0.06 mm accuracy
-
0.01 mm / 0.0005" resolution
-
Digital display for quick, easy-to-read measurements
-
Metric/inch conversion
-
Zero/origin setting function
-
Automatic power-off function
-
Stainless steel construction
-
Data output interface for measurement data collection
-
Designed for precision machining and quality-control applications
Model Specifications
| Model | Flute Configuration | Measuring Range | Accuracy | Resolution |
|---|---|---|---|---|
| 1529-5 | 5 flutes | Ø50–Ø200 mm / 2–8" | ±0.06 mm | 0.01 mm / 0.0005" |
| 1529-19 | 19 flutes | Ø50–Ø200 mm / 2–8" | ±0.06 mm | 0.01 mm / 0.0005" |
| 1529-23 | 23 flutes | Ø50–Ø200 mm / 2–8" | ±0.06 mm | 0.01 mm / 0.0005" |
| 1529-31 | 31 flutes | Ø50–Ø200 mm / 2–8" | ±0.06 mm | 0.01 mm / 0.0005" |
Applications
The INSIZE 1529 Digital V-Type Caliper is designed for dimensional inspection of:
-
Cutting tools
-
Taps
-
Reamers
-
End mills
-
Fluted shafts
-
Gears and precision-machined components
-
Tooling components
-
Manufacturing and inspection parts
Specialized Fluted-Component Measurement
Unlike a conventional outside caliper, the 1529 uses a dedicated V-type measuring arrangement designed around the geometry of fluted components. Selecting the correct model according to the component's flute configuration allows the instrument to provide a direct digital measurement for the intended application.
This makes the 1529 particularly useful in toolmaking, CNC machining, cutting-tool inspection, manufacturing, and quality-control environments where accurate dimensional verification of fluted components is required.
Digital Measurement & Data Output
The digital readout provides measurements in either metric or inch units, while the data output interface allows measurement results to be transferred to compatible data-collection systems for inspection and quality-control workflows.
Models Available from CRB Supply
1529-5 — Digital V-Type Caliper for 5-Flute Components
1529-19 — Digital V-Type Caliper for 19-Flute Components
1529-23 — Digital V-Type Caliper for 23-Flute Components
1529-31 — Digital V-Type Caliper for 31-Flute Components
Manufacturer: INSIZE
Product Series: 1529 Digital V-Type Calipers
Measuring Range: Ø50–Ø200 mm / 2–8"
Accuracy: ±0.06 mm
Resolution: 0.01 mm / 0.0005"
