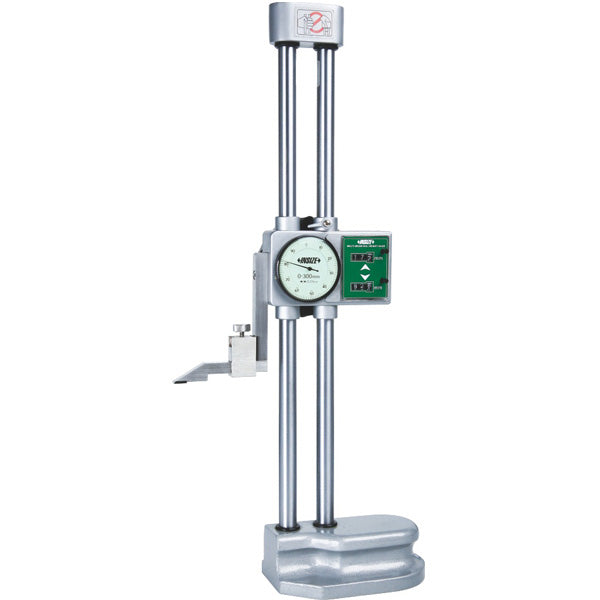

INSIZE 1351-450 Dial Height Gauge

The INSIZE 1351-450 Dial Height Gauge is a precision mechanical measuring instrument designed for dimensional inspection, feature location, and layout work on a surface plate. With a 0–450 mm measuring range, 0.01 mm graduation, and ±0.05 mm accuracy, it provides a practical solution for accurately checking vertical dimensions on machined components and other precision workpieces.

Its mechanical dial readout provides a direct, easy-to-read measurement indication, making the 1351-450 well suited for machine shops, inspection departments, and quality-control applications.

Key Features

• 0–450 mm measuring range

• ±0.05 mm accuracy

• 0.01 mm graduation

• Precision mechanical dial readout

• Designed for dimensional inspection and layout work

• Suitable for use with a precision surface plate

• Useful for measuring and comparing component heights

• Well suited for machine-shop and quality-control environments

Precision Height Measurement

The INSIZE 1351-450 is designed to measure vertical dimensions from a stable reference surface. When used on a surface plate, a height gauge provides a controlled reference for checking feature locations, step heights, and other dimensional characteristics.

The 450 mm measuring capacity provides additional measurement height for larger components while maintaining the precision needed for general dimensional inspection.

0.01 mm Graduation

The 1351-450 features 0.01 mm graduation, allowing operators to make fine dimensional readings during inspection and setup operations.

The mechanical dial readout provides an immediate visual indication of the measurement, making it practical for repetitive inspection tasks where quick readings are important.

Typical Applications

The INSIZE 1351-450 is suitable for:

• CNC machining inspection

• Machine shop inspection

• Dimensional quality control

• Precision machining

• Tool and die work

• Production inspection

• Incoming inspection

• Component measurement

• Part layout and setup

• Inspection-room applications

Ideal for Surface-Plate Inspection

Height gauges are commonly used in conjunction with precision surface plates to establish a consistent reference plane. The 1351-450 can be used to check the height and location of features relative to that reference.

This makes it useful for verifying machined components against engineering drawings and inspection requirements.

Technical Specifications

Product Information

Model: 1351-450
Type: Dial Height Gauge
Measuring Range: 0–450 mm
Accuracy: ±0.05 mm
Graduation: 0.01 mm

Manufacturer Documentation

Refer to the official INSIZE 1351 technical documentation for complete specifications and operating information.
