INSIZE 1192 Digital Offset Centerline Caliper | 500–1500mm

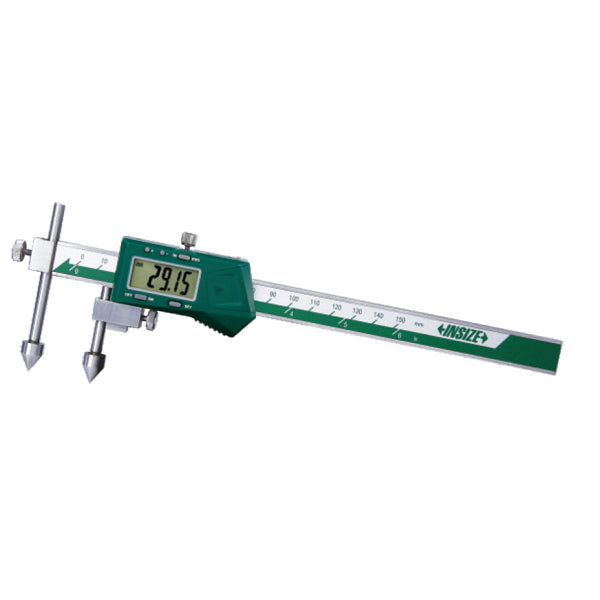

The INSIZE 1192 Digital Offset Centerline Caliper is a specialized precision measuring tool designed for measuring center-to-center distances between holes, grooves, and other features that may be positioned on different planes or difficult to reach with a conventional caliper.
With measuring capacities from 20–500 mm through 30–1500 mm, the 1192 series provides a practical solution for inspecting large components while maintaining 0.01 mm / 0.0005" resolution. Each configuration includes a data interface for measurement data output.
Key Features
-
Specialized offset centerline measuring design
-
Available in 500, 1000, and 1500 mm capacities
-
0.01 mm / 0.0005" resolution
-
Digital display for direct measurement readings
-
Built-in data interface
-
Designed for measuring offset and center-to-center dimensions
-
Suitable for large components and industrial inspection
-
Stainless steel construction
Choose Your Measuring Capacity
| Model | Measuring Range | Accuracy | Resolution |
|---|---|---|---|
| 1192-500A | 20–500 mm / 0.8–20" | ±0.09 mm | 0.01 mm / 0.0005" |
| 1192-1000A | 30–1000 mm / 1.2–40" | ±0.12 mm | 0.01 mm / 0.0005" |
| 1192-1500A | 30–1500 mm / 1.2–60" | ±0.15 mm | 0.01 mm / 0.0005" |
Offset Centerline Measurement
The 1192 is purpose-built for measurements where the two features being inspected are not conveniently accessible with a standard caliper.
Its offset centerline design allows operators to measure distances between feature centerlines while accommodating differences in the position or plane of the features. This makes it particularly useful for checking holes, bores, grooves, and other machined features on complex components.
Large-Capacity Inspection
The available 500 mm, 1000 mm, and 1500 mm configurations provide substantially more capacity than conventional handheld calipers.
The 1192-1500A reaches 1500 mm / 60", making it suitable for large components where accurate centerline measurements are required over extended distances.
Digital Measurement and Data Output
All three models provide 0.01 mm / 0.0005" resolution and feature a data interface for measurement data output. This allows measurements to be incorporated into inspection records and quality-control workflows.
Applications
The INSIZE 1192 Digital Offset Centerline Caliper is suitable for:
-
CNC machining inspection
-
Hole center-to-center measurement
-
Offset feature inspection
-
Large-part dimensional inspection
-
Machine shop quality control
-
Precision machining
-
Fabrication
-
Production inspection
-
Incoming inspection
-
Industrial component inspection
-
Dimensional quality control
Technical Specifications
| Specification | 1192-500A | 1192-1000A | 1192-1500A |
|---|---|---|---|
| Measuring Range | 20–500 mm / 0.8–20" | 30–1000 mm / 1.2–40" | 30–1500 mm / 1.2–60" |
| Accuracy | ±0.09 mm | ±0.12 mm | ±0.15 mm |
| Resolution | 0.01 mm / 0.0005" | 0.01 mm / 0.0005" | 0.01 mm / 0.0005" |
| Data Output | Data interface | Data interface | Data interface |
| Product Type | Digital Offset Centerline Caliper | Digital Offset Centerline Caliper | Digital Offset Centerline Caliper |
Product Information
Series: INSIZE 1192
Product Type: Digital Offset Centerline Caliper
Available Models: 1192-500A, 1192-1000A, 1192-1500A
Resolution: 0.01 mm / 0.0005"
Data Output: Data interface
Maximum Measuring Range: 1500 mm / 60"
Manufacturer Documentation
Refer to the official INSIZE 1192 documentation for complete specifications and technical information.
