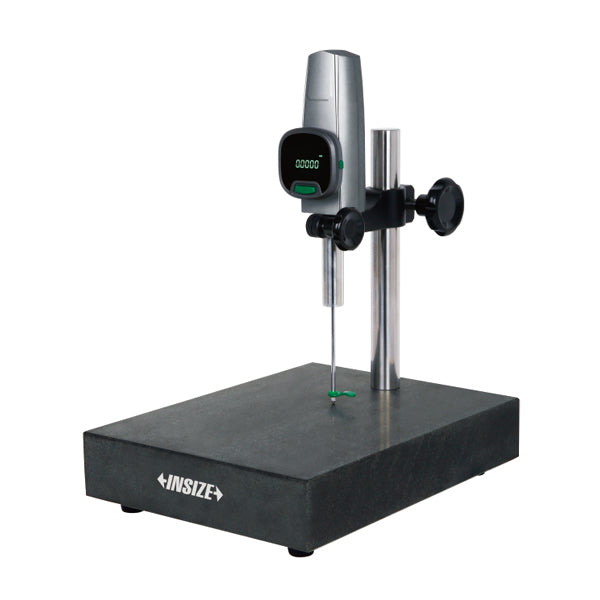

INSIZE 1158-100 Digital Height Gauge | 0–100mm | 0.1µm Resolution
Call/Text/Email before you buy.
Our team reviews every order and is happy to answer questions about compatibility, specs, or lead times. Don't guess — let's get it right the first time.
INSIZE 1158-100 Digital Height Gauge | 0–100mm
The INSIZE 1158-100 Digital Height Gauge is a high-precision measuring instrument designed for demanding dimensional inspection and metrology applications. With a 0–100 mm measuring range, 3 µm accuracy, and selectable resolution down to an exceptional 0.1 µm (0.000005"), it provides the fine measurement capability required for precision height inspection and comparative measurement.
The 1158-100 is designed for applications where extremely fine resolution is important, providing substantially more measurement detail than conventional digital height gauges.
Key Features
-
0–100 mm / 0–4" measuring range
-
3 µm accuracy
-
Selectable 0.1 µm / 0.000005" resolution
-
Resolution can be switched to 1 µm / 0.00005"
-
High-precision digital measurement
-
Designed for demanding dimensional inspection
-
Suitable for precision metrology and comparative measurement
Ultra-Fine Resolution
The standout feature of the INSIZE 1158-100 is its selectable resolution. The instrument can display measurements with 0.1 µm resolution, allowing operators to observe extremely small dimensional changes during precision inspection.
For applications where 0.1 µm resolution is unnecessary, the gauge can be switched to 1 µm / 0.00005" resolution.
Precision Height Measurement
With a 0–100 mm measuring range and 3 µm accuracy, the 1158-100 is designed for precision height measurement and dimensional inspection.
It can be used to compare component dimensions, inspect small changes in feature height, and perform detailed measurements where conventional height gauges may not provide sufficient resolution.
Technical Specifications
| Specification | 1158-100 |
|---|---|
| Product Type | Digital Height Gauge |
| Model | 1158-100 |
| Measuring Range | 0–100 mm / 0–4" |
| Accuracy | 3 µm |
| Resolution | 0.1 µm / 0.000005" |
| Alternate Resolution | 1 µm / 0.00005" |
Applications
The INSIZE 1158-100 is suitable for:
-
Precision dimensional inspection
-
Metrology applications
-
Comparative measurement
-
Machine shop inspection
-
CNC machining inspection
-
Precision component inspection
-
Quality control
-
Research and development
-
Inspection laboratories
-
High-resolution height measurement
Built for Precision Inspection
The 1158-100 is intended for applications where measurement resolution is a critical consideration. Its ability to display measurements down to 0.1 µm makes it particularly suited to precision inspection tasks requiring extremely fine dimensional differentiation.
Product Information
Model: 1158-100
Product Type: Digital Height Gauge
Measuring Range: 0–100 mm / 0–4"
Accuracy: 3 µm
Resolution: 0.1 µm / 0.000005"
Selectable Resolution: 1 µm / 0.00005"
Manufacturer Documentation
Refer to the official INSIZE 1158 documentation for complete specifications and operating information.
