INSIZE 1157 Digital Height Gauge | 0–50mm
The INSIZE 1157 Digital Height Gauge is a high-precision height measuring system designed for dimensional inspection on a stable reference surface. With a 0–50 mm measuring range, 1 µm / 0.00005" resolution, and 3 µm accuracy, the 1157 provides the fine measurement capability needed for precision inspection and metrology applications.
The 1157 is available with either a granite base or ceramic base, allowing you to select the configuration best suited to your inspection environment.
Key Features
-
0–50 mm / 0–2" measuring range
-
1 µm / 0.00005" resolution
-
3 µm accuracy at 20°C
-
High-brightness LED display
-
High response speed
-
Measuring force of 0.8–1.2 N
-
On/off, zero, mm/inch, and max/min functions
-
USB data output
-
Compatible with optional data-output cable and foot switch
-
Includes measuring tips
-
Available with granite or ceramic base
Choose Your Base Configuration
| Model | Base | Base Flatness | Range | Accuracy | Resolution |
|---|---|---|---|---|---|
| 1157-501 | Granite | 2 µm | 0–50 mm / 0–2" | 3 µm | 1 µm / 0.00005" |
| 1157-502 | Ceramic | 1 µm | 0–50 mm / 0–2" | 3 µm | 1 µm / 0.00005" |

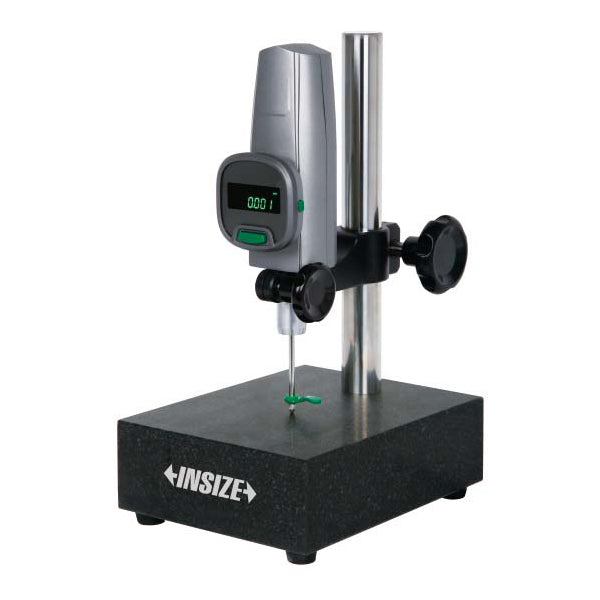

1157-501 — Granite Base
The 1157-501 features a precision granite base with 2 µm flatness, providing a stable reference surface for precision height measurements. Granite construction makes this configuration well suited for inspection-room and metrology applications where a rigid, stable measuring platform is required.

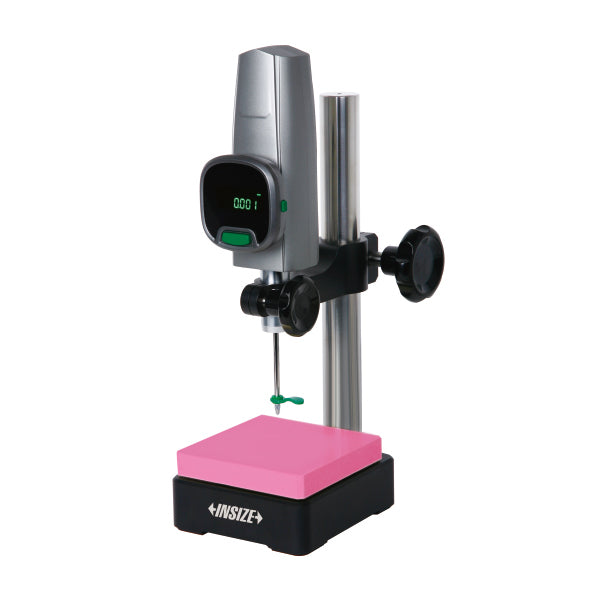

1157-502 — Ceramic Base
The 1157-502 uses a ceramic base with 1 µm flatness. INSIZE specifies the ceramic surface as wear- and corrosion-resistant, making this configuration particularly useful where resistance to surface wear and environmental exposure is important.
High-Resolution Digital Measurement
With 1 µm resolution, the 1157 is designed for measurements where conventional 0.01 mm digital height gauges do not provide sufficient resolution.
The high-brightness LED display provides an easy-to-read measurement while the system's high response speed allows measurements to be captured quickly during inspection.
Measurement Functions
The 1157 includes controls for:
-
On/off
-
Zero setting
-
mm/inch conversion
-
Maximum value
-
Minimum value
-
Max/min difference
These functions allow the gauge to be used for both direct height measurements and comparative inspection tasks.
USB Data Output
The 1157 provides USB data output for measurement data collection. With the optional 1155-5-FOS data-output cable and foot switch, measurement values can be transmitted to Excel without requiring dedicated measurement software. The foot switch can also be used for convenient data capture during repetitive inspection.
Precision Inspection Applications
The INSIZE 1157 is suitable for:
-
Precision dimensional inspection
-
Surface plate inspection
-
Machine shop quality control
-
CNC machining inspection
-
Metrology laboratories
-
Production inspection
-
Comparative measurement
-
Component inspection
-
Small-feature height measurement
-
Research and development
Technical Specifications
| Specification | 1157-501 | 1157-502 |
|---|---|---|
| Measuring Range | 0–50 mm / 0–2" | 0–50 mm / 0–2" |
| Accuracy at 20°C | 3 µm | 3 µm |
| Resolution | 1 µm / 0.00005" | 1 µm / 0.00005" |
| Measuring Force | 0.8–1.2 N | 0.8–1.2 N |
| Output | USB | USB |
| Base | Granite | Ceramic |
| Base Flatness | 2 µm | 1 µm |
| Display | High-Brightness LED | High-Brightness LED |
| Power Supply | 5V / 1A | 5V / 1A |
Standard Equipment
The 1157 includes the main height gauge unit and measuring tips. INSIZE lists the following optional accessories:
-
6282 — Contact point
-
1155-5-POB — Charge pal / power bank
-
1155-5-FOS — Data output cable with foot switch
Product Information
Series: INSIZE 1157
Product Type: Digital Height Gauge
Models: 1157-501, 1157-502
Measuring Range: 0–50 mm / 0–2"
Resolution: 1 µm / 0.00005"
Accuracy: 3 µm at 20°C
Output: USB
Manufacturer Documentation
Refer to the official INSIZE 1157 documentation for complete specifications, operating instructions, and accessory information.
