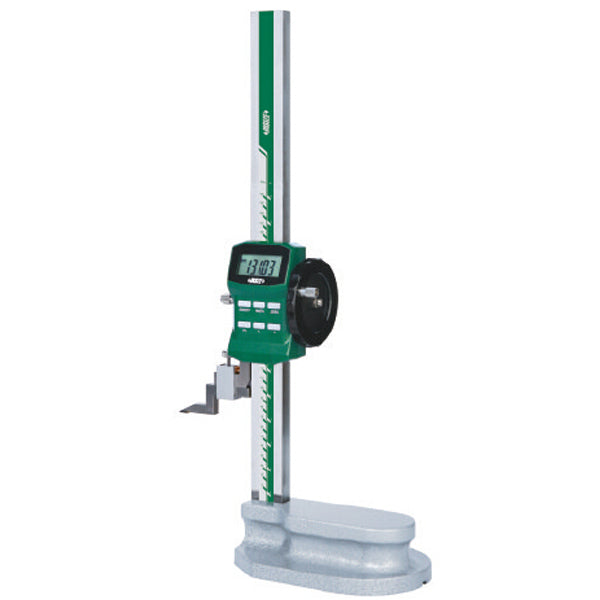

INSIZE 1156 Digital Height Gauge with Driving Wheel
The INSIZE 1156 Digital Height Gauge with Driving Wheel is a precision height-measuring instrument designed for dimensional inspection, feature location, and layout applications. Its driving-wheel design provides controlled movement of the measuring carriage, allowing operators to position the gauge smoothly and efficiently when inspecting components on a surface plate.
CRB Supply offers the 1156-600 and 1156-1000 models, providing measuring ranges of 0–600 mm and 0–1000 mm. Both models feature 0.01 mm / 0.0005" resolution for detailed dimensional inspection.
Key Features
-
Digital height gauge with driving-wheel carriage adjustment
-
Designed for precision height measurement and dimensional inspection
-
0–600 mm and 0–1000 mm measuring ranges
-
0.01 mm / 0.0005" resolution
-
Metric/inch measurement
-
Smooth carriage positioning with driving wheel
-
Suitable for surface plate inspection and layout work
-
Designed for professional metrology and quality-control applications
Model Specifications
| Model | Measuring Range | Accuracy | Resolution |
|---|---|---|---|
| 1156-600 | 0–600 mm / 0–24" | ±0.05 mm | 0.01 mm / 0.0005" |
| 1156-1000 | 0–1000 mm / 0–40" | ±0.07 mm | 0.01 mm / 0.0005" |
Precision Height Measurement
The 1156 provides a dedicated solution for measuring vertical dimensions and locating features relative to a reference surface. The driving wheel allows the measuring carriage to be positioned along the height column with controlled movement, making it practical for repeated inspection and layout operations.
When used with an appropriate surface plate and measuring setup, the height gauge can be used to inspect component dimensions, locate holes and other features, and perform precision layout work.
Applications
The INSIZE 1156 is suitable for:
-
Dimensional inspection
-
Height measurement
-
Feature location
-
Hole and centerline measurement
-
Precision layout
-
Machine-shop inspection
-
Manufacturing quality control
-
Surface plate inspection
-
Professional metrology applications
Models Available from CRB Supply
1156-600 — 0–600 mm / 0–24"
1156-1000 — 0–1000 mm / 0–40"
Product Information
Manufacturer: INSIZE
Series: 1156
Product Type: Digital Height Gauge with Driving Wheel
Available Ranges: 0–600 mm and 0–1000 mm
Resolution: 0.01 mm / 0.0005"
Accuracy: ±0.05 mm to ±0.07 mm, depending on model
