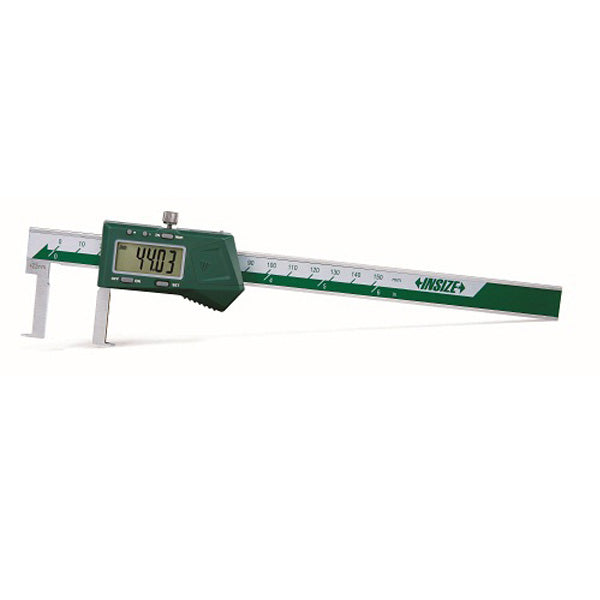

INSIZE 1120 Digital Inside Groove Caliper | 500mm
Call/Text/Email before you buy.
Our team reviews every order and is happy to answer questions about compatibility, specs, or lead times. Don't guess — let's get it right the first time.
INSIZE 1120 Digital Inside Groove Caliper | 40–500mm
The INSIZE 1120 Digital Inside Groove Caliper is a specialized measuring instrument designed for accurately measuring inside grooves, recesses, and other internal features that can be difficult to access with a conventional caliper.
The 500 mm models provide large-capacity internal measurement with 0.01 mm / 0.0005" resolution and a built-in data interface, making them well suited for dimensional inspection of large components, machined parts, and industrial assemblies.
Key Features
-
Specialized design for inside groove measurement
-
Up to 500 mm / 20" measuring capacity
-
0.01 mm / 0.0005" resolution
-
Digital display for quick dimensional readings
-
Data interface for measurement data output
-
Three 500 mm configurations for different minimum measuring ranges
-
Suitable for large-part dimensional inspection
Choose Your 500 mm Model
| Model | Measuring Range | Accuracy | Resolution |
|---|---|---|---|
| 1120-500 | 40–500 mm / 1.57–20" | ±0.07 mm | 0.01 mm / 0.0005" |
| 1120-5001 | 60–500 mm / 2.36–20" | ±0.08 mm | 0.01 mm / 0.0005" |
| 1120-5002 | 80–500 mm / 3.15–20" | ±0.08 mm | 0.01 mm / 0.0005" |
The primary difference between the three configurations is the minimum measuring capacity. Select the model based on the smallest internal groove or feature you need to measure.
Designed for Inside Groove Measurement
The 1120 is purpose-built for measuring internal grooves and recessed features where standard outside-measuring calipers are not appropriate.
Its specialized measuring geometry allows the contacts to reach into internal features, making it useful for inspecting machined components with grooves, recesses, and other internal dimensions.
Large-Capacity Internal Measurement
With a maximum measuring capacity of 500 mm / 20", the 1120-500 series is designed for larger workpieces that exceed the capacity of conventional specialty calipers.
The three available configurations provide flexibility when selecting the appropriate minimum measuring range for the application.
Digital Measurement and Data Output
All three 500 mm models provide 0.01 mm / 0.0005" resolution and include a data interface. This allows measurement data to be incorporated into inspection and quality-control workflows.
The digital display also provides a direct numerical reading, making the caliper practical for repetitive dimensional inspection.
Applications
The INSIZE 1120 Digital Inside Groove Caliper is suitable for:
-
CNC machining inspection
-
Large-part dimensional inspection
-
Internal groove inspection
-
Precision machining
-
Machine shop quality control
-
Production inspection
-
Incoming inspection
-
Fabrication
-
Industrial component inspection
-
Dimensional quality control
Technical Specifications
| Specification | 1120-500 | 1120-5001 | 1120-5002 |
|---|---|---|---|
| Measuring Range | 40–500 mm / 1.57–20" | 60–500 mm / 2.36–20" | 80–500 mm / 3.15–20" |
| Accuracy | ±0.07 mm | ±0.08 mm | ±0.08 mm |
| Resolution | 0.01 mm / 0.0005" | 0.01 mm / 0.0005" | 0.01 mm / 0.0005" |
| Data Output | Data interface | Data interface | Data interface |
| Product Type | Digital Inside Groove Caliper | Digital Inside Groove Caliper | Digital Inside Groove Caliper |
Product Information
Series: INSIZE 1120
Product Type: Digital Inside Groove Caliper
Available Models: 1120-500, 1120-5001, 1120-5002
Maximum Measuring Range: 500 mm / 20"
Resolution: 0.01 mm / 0.0005"
Data Output: Data interface
Manufacturer Documentation
Refer to the official INSIZE 1120 documentation for complete specifications and technical information.
