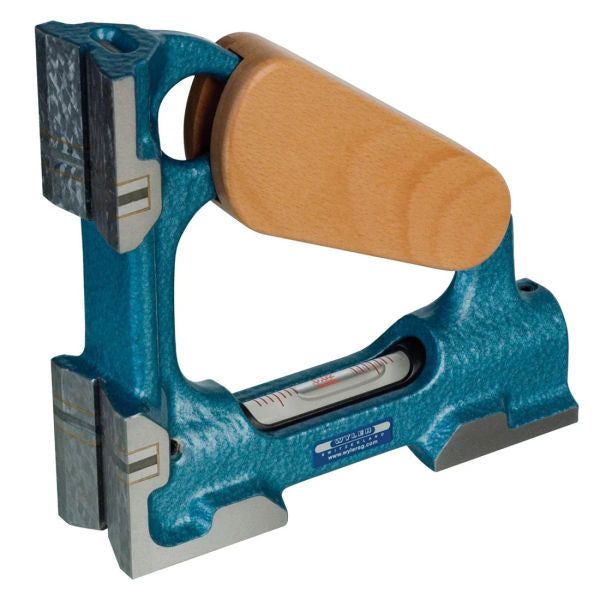

Fowler-Wyler Magnetic Precision Spirit Level

Leveling a vertical face or shaft usually means holding the level with one hand and working with the other. Fowler-Wyler Universal Spirit Levels feature an insulated handle. Main vial unit observed from above and from either side. The vial unit is set into a steel tube in a stress free location, and can be adjusted in the body of the Spirit Level by a fine thread and screw system. Hand scraped by Swiss craftsmen. Includes fitted case.

A magnetic precision level for shafts and vertical surfaces

Fowler-Wyler Magnetic Precision Spirit Level checks and levels cylinders, horizontal and vertical surfaces. Constructed with two prismatic measuring surfaces. Sensitivity .0002" per 10". Magnets ensure complete adherence to vertical surfaces of parts and vertical arbors or shafts. Operators on milling and boring units, inspectors and fitters work with free hands.

Overall Dimensions: 6" x 1-9/16" x 6" (150mm x 40mm x 150mm)
Inch: 0.0002"/10″
Metric: 0.02mm/m
Sensitivity Angular: 4 sec.
