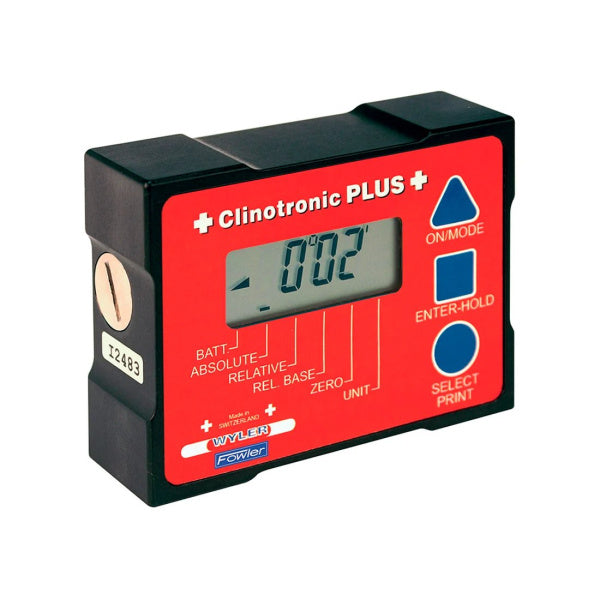

Fowler-Wyler Clinotronic PLUS Electronic Level (±45°)

A bubble vial can’t give you the exact angle a setup or alignment job needs. The Fowler-Wyler Clinotronic PLUS is an electronic level of unsurpassed versatility, built around a dedicated microprocessor and the well-proven WYLER inclination sensor. It measures angle and inclination for machine setup, alignment and inspection, indoors or out.

An electronic inclinometer for setup and alignment

Features

• Measuring range ±45°, capacity 0–360° using all four bases
• Resolution 0.01° (selectable)
• Programmable / adjustable base length
• Display in any common inclination unit (mm/m, in/10 in, degrees), selectable by push button
• Automatic zero set by push button; absolute or relative measuring mode
• Built-in calibration program; no loss of calibration data on power failure
• SEAL-TEC technology for reliable performance in difficult environments
• Integrated RS232/RS485 interface (special adapter cables available)
• Low-battery indication; runs on standard 1.5 V AA batteries

Specifications

• Repeatability: < 0.01°; response time: reading within ~5 seconds
• Temperature coefficient: < 0.01°/°C; operating range 0–40 °C
• Hard-anodized aluminum housing, 4" × 3" × 1" (100 × 75 × 30 mm); includes fitted case
