Fowler-Trimos V9 16"/406mm Electronic Height Gage
Call/Text/Email before you buy.
Our team reviews every order and is happy to answer questions about compatibility, specs, or lead times. Don't guess — let's get it right the first time.

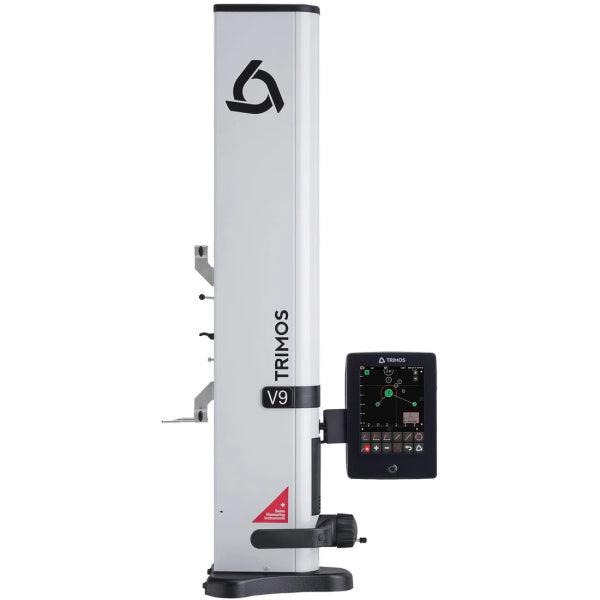

The NEW Fowler-Trimos V vertical measuring instruments have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they guarantee a robust, precise and reliable product in the long run. Along with higher accuracy and repeatability, the V7 and V9 models also offer 2D hole pattern measurement, programming and statistics.
The touch screen display on the V7 and V9 models offers an ease of use never reached yet on a vertical measuring instrument. The menus and functions displayed obey to a very strict philosophy and design. This allows a great efficiency, even in complex tasks such as programming, 2D mode, angle measurements or statistical analysis of results.
Features:
- Measuring ranges 400mm, 700mm and 1100mm
- Extremely easy to use
- High contrast display allows easy reading at any time with user friendly functions
- Electronically adjustable measuring force 0.75/1.5 (N)
- Vast range of accessories
- All adjustments possible without tools
Technical Data
Measuring Range:16"/406mm
Range with probe inverted:28"/724mm
Max. Permissible Errors (µm): 1.2 + L(mm) / 1000
Frontal Squareness Deviation: 0.0002"/0.005mm
Resolution: 0.00001"/0.0001mm
Repeatability (2s): 0.00002"/0.0005mm (Ø 0.00004"/0.001mm)
Battery Life (Hrs): 12
Squareness probe: YES (accessory available)
Air Cushion: YES
