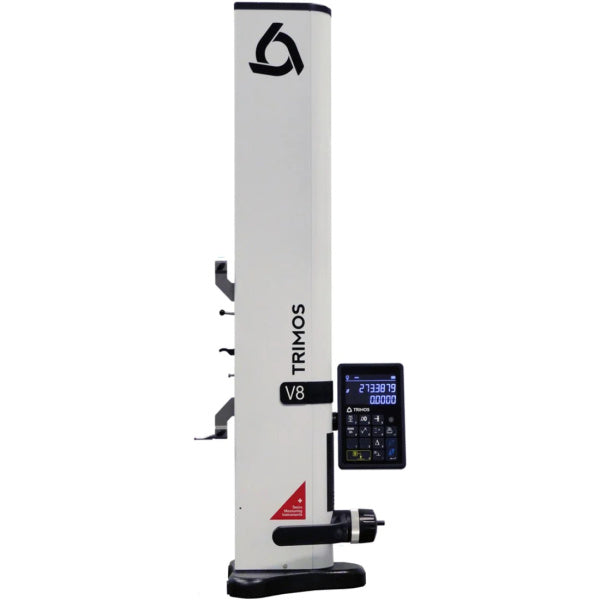

Fowler Trimos V8 16"/406mm Electronic Height Gage with Fine Adjustment
Call/Text/Email before you buy.
Our team reviews every order and is happy to answer questions about compatibility, specs, or lead times. Don't guess — let's get it right the first time.
V8 Height gage with extreme precision, repeatability, high resolution and with Swiss made finish. It is equipped with specific handle for fine adjustment. th: 0px; text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial; background-color: rgb(255, 255, 255);">After the very successful launch of the V-line height gages, Fowler Trimos has developed a new instrument in its height gage family, the V8. The mechanical design and delivery scope of the V8 are identical to the V9. It shares the features that made the model V9 so successful: extreme precision and repeatability, high resolution, and Swiss made finish. What is to underline about this new model is its specific handle for fine adjustment. Trimos developed this fine adjustment to answer to specific applications requiring a fine adjustment of carriage position. The Fowler Trimos V8 guarantees, like its predecessors, extremely easy use with great robustness, flexibility and extreme precision
Technical Data
Measuring Range:16"/406mm
Range with probe inverted:28"/724mm
Max. Permissible Errors (µm): 1.2 + L(mm) / 1000
Frontal Squareness Deviation: 0.0002"/0.005mm
Resolution: 0.00001"/0.0001mm
Repeatability (2s): 0.00002"/0.0005mm (Ø 0.00004"/0.001mm)
Battery Life (Hrs): 12
Squareness probe: YES (accessory available)
Air Cushion: YES
