Angle, cone and hole-pattern work is slow on a single-axis gage. The Fowler-Trimos V7 is a Swiss-made 2D electronic height gage (vertical measuring instrument) from Trimos. With its touch display and lateral insert holders, it ranks as a universal workshop instrument, combining technological innovation with decades of Trimos tradition. Select your range above.

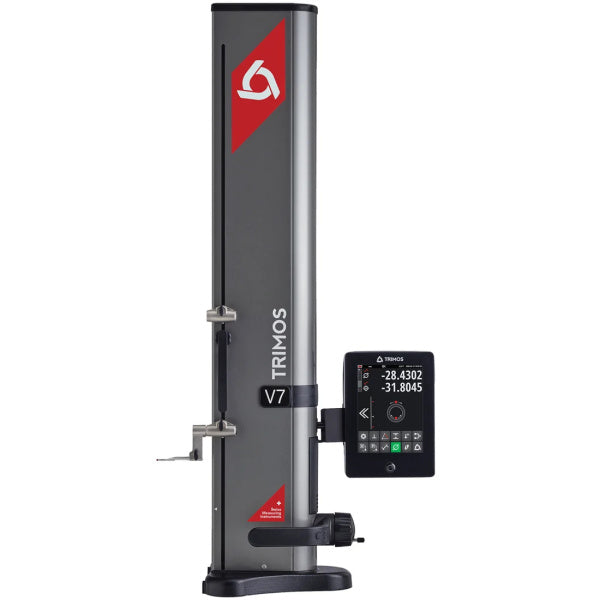

The Trimos V7 2D electronic height gage with touchscreen
Capabilities
- 2D measurement with an easy graphical interface
- Perpendicularity measurement with a lever indicator or electronic probe
- Faster, more accurate and simpler diameter measurement; simultaneous diameter and centerline
- Graphically assisted angle and cone measurement
- Programming and statistical analysis
- Height, thickness and chain-of-dimensions measurement; min/max/flatness detection
- Lateral (side) insert holders accept measuring inserts up to 400 mm for excellent repeatability
Features
- Touch-screen, high-contrast display
- Revolutionary displacement handwheel: selectable manual or motor-driven carriage movement
- Air cushion for effortless movement; dual probe holders
- Electronically adjustable measuring force (0.75 / 1.5 N)
- Resolution: 0.00001" / 0.0001 mm; repeatability 0.00004" / 0.001 mm; max permissible error 2 + L(mm)/400 µm
- Cast iron base; RS232 and USB interfaces; accessory probes up to 340 mm
- Includes charging unit, Ø4 mm ruby-ball insert, Ø8 mm probe-holder elbow, setting gage, manual and test certificate
