More demanding inspection needs tighter accuracy without losing shop-floor speed. The Fowler-Trimos V6 is a Swiss-made electronic height gage (vertical measuring instrument) from Trimos, offering higher accuracy than the V5 for demanding workshop and inspection work. It keeps the revolutionary displacement handwheel that switches instantly between manual and motor-driven carriage movement. Select your range above.

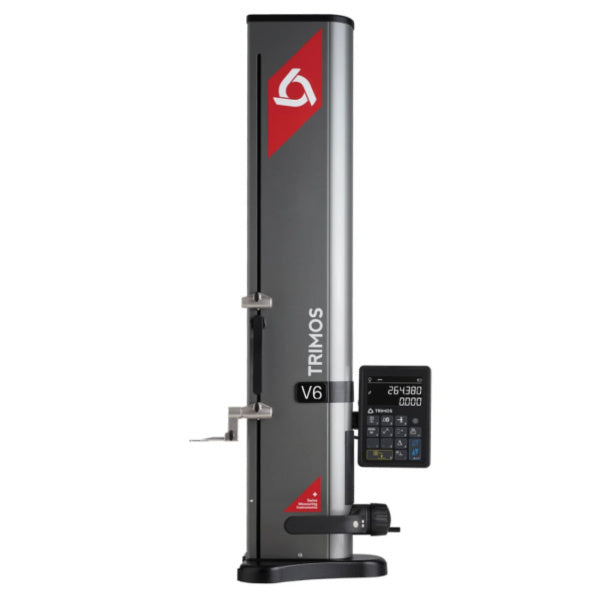

The Trimos V6 electronic height gage for higher accuracy
Capabilities
- Height, thickness and chain-of-dimensions measurement
- Simultaneous display of diameter and centerline
- Easy detection of min/max points and surface flatness
- Perpendicularity measurement (with accessory probe)
- Side probe holders accept long, robust measuring inserts up to 400 mm for excellent repeatability
Features
- Selectable manual or motor-driven carriage displacement via the displacement handwheel
- Air cushion for effortless movement over the surface plate; dual probe holders
- Electronically adjustable measuring force (0.75 / 1.5 N)
- Resolution: 0.00005" / 0.001 mm; repeatability 0.00008" / 0.002 mm; max permissible error 2 + L(mm)/400 µm
- Cast iron base for optimal stability; all adjustments without tools
- High-contrast display; RS232 and USB interfaces
- Includes charging unit, Ø4 mm ruby-ball insert, Ø8 mm probe-holder elbow, setting gage, manual and test certificate
