Fowler-Trimos V1 Electronic Height Gage

A manual scriber can only take layout and tracing so far. The Fowler-Trimos V1 is a Swiss-made entry-level vertical measuring and scribing instrument from Trimos — the perfect bridge between the traditional world of manual scribers and advanced height gauges. Ideal for those taking their first steps into precision measurement, it simplifies unidirectional measurement and tracing. Select your range above.

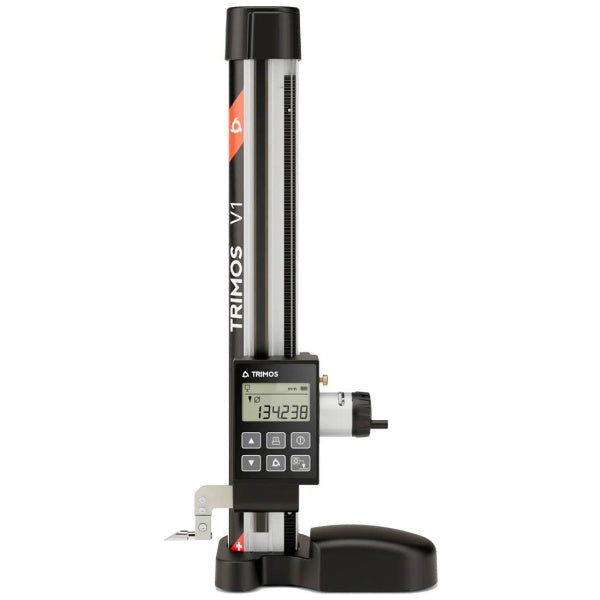

The Trimos V1 entry-level electronic height gage

Capabilities

• Height measurement, tracing and scribing, and diameter / center-distance work
• Fine-adjust handwheel for precise scribing (optional scriber available)

Features

• Robust, easily portable Swiss-made construction with steel base
• Counterweight for operational comfort; quick, smooth carriage movement
• Clear, extra-large display with a simplified keypad
• Resolution: 0.001" / 0.01 mm; accuracy 0.0012" / 0.03 mm
• Supplied with a Ø6 mm (0.236") ball probe
• Bluetooth / RS232 data output
