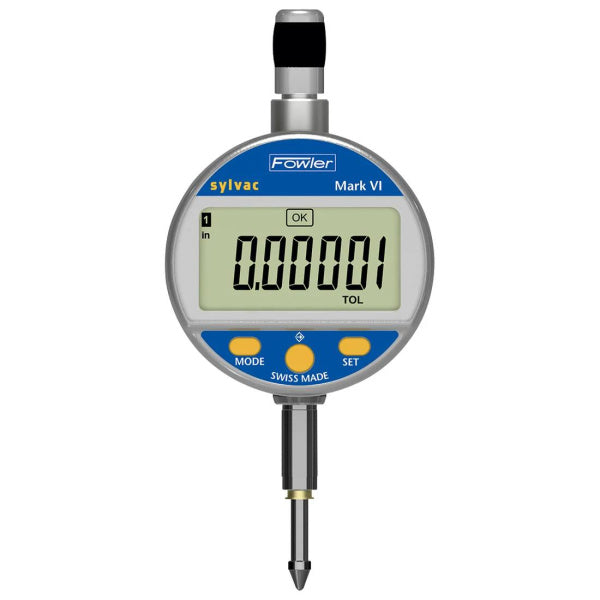

Comparative inspection is only as good as the resolution of the indicator you trust. The Fowler-Sylvac Mark VI Nano Electronic Indicator is a high-resolution electronic indicator designed for precision dimensional measurement, comparative inspection, and quality-control applications. Its large display, compact design, and IP54 protection make it well suited for professional machine-shop and metrology environments.
A high-resolution nano electronic indicator
This CRB Supply listing includes the 0.500 in (12.5 mm) and 1 in (25 mm) Mark VI Nano ranges, with both non-Bluetooth and Bluetooth configurations available as shown in the options above.
Key Features
-
High-resolution electronic measurement for precision comparative inspection.
-
Large, easy-to-read display for clear measurement readings.
-
Bluetooth connectivity on the 54-530-635-0 model for wireless data output.
-
IP54 protection helps protect the indicator from dust and fluid exposure.
-
0.00001 in / 0.0001 mm resolution on the standard configurations.
-
0.00002 in / 0.0005 mm repeatability across the listed configurations.
Available Models
| Model |
Range |
Bluetooth |
Accuracy |
Resolution |
Repeatability |
| 54-530-625-0 |
0–0.500 in / 0–12.5 mm |
No |
0.00007 in / 0.0018 mm |
0.00001 in / 0.0001 mm |
0.00002 in / 0.0005 mm |
| 54-530-630-0 |
0–1 in / 0–25 mm |
No |
0.00008 in / 0.0022 mm |
0.00001 in / 0.0001 mm |
0.00002 in / 0.0005 mm |
| 54-530-635-0 |
0–0.500 in / 0–12.5 mm |
Yes |
0.00007 in / 0.0018 mm |
0.000005 in / 0.0001 mm |
0.00002 in / 0.0005 mm |
Technical Specifications
| Specification |
Mark VI Nano |
| Type |
Electronic Indicator |
| Available ranges |
0–0.500 in / 12.5 mm and 0–1 in / 25 mm |
| Display |
Large electronic display |
| Protection rating |
IP54 |
| Connectivity |
Bluetooth on selected model; non-Bluetooth also available |
| Repeatability |
0.00002 in / 0.0005 mm |
Precision Measurement & Inspection Applications
- Comparative dimensional inspection
- Machine-tool setup and verification
- Production quality control
- Precision component inspection
- Runout and variation measurement
- Fixture and tooling inspection
- General machine-shop metrology
Product Information
Brand: Fowler-Sylvac
Series: Mark VI Nano
Type: Electronic Indicator
Available Range: 0–0.500 in / 12.5 mm or 0–1 in / 25 mm
Protection: IP54
Bluetooth: Available on selected model
Note: Accuracy and resolution vary by model. Refer to the selected variant for the exact specifications of the indicator being ordered.
