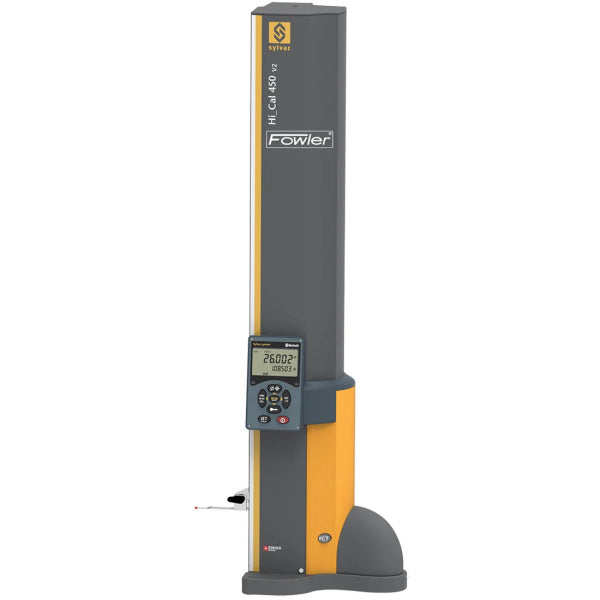

Fowler Sylvac 17.5"/450mm BLUETOOTH Hi-CAL Electronic Height Gage
SKU 54-931-450-BT
by Fowler
Sold out
$8,928.00
Call/Text/Email before you buy.
Our team reviews every order and is happy to answer questions about compatibility, specs, or lead times. Don't guess — let's get it right the first time.
Call / Text
(800) 471-0846
Email
support@crbsupply.com
- Quick, easy computer recorded measurements
- Extra low measuring force, from 0.2N
- Measure internal and external diameters, centerlines, heights, widths, depths and MIN/MAX/TIR capability
- Excellent repeatability thanks to the motorized carriage
- High reliability
- Bluetooth, USB and RS232 data outputs
- Battery life: 40 hours rechargeable during operation
- Touch sensitive probe speed for easy operation
- Base with small footprint
- Includes: protective cover, charging set, ruby ball probe Ø3mm, setting gage and calibration certificates
Range: 17.5"/450mm
Application Range: 18.5"/0-470mm
Maximum Error (µm): 2.0 + L/200
Repeatability: 2µm
Resolution: 0.00005"/0.001mm
Velocity (mm/sec.): 50/100
Measuring Force: 0.2 - 0.3 Newtons
Self-Contained Use: Approximately 40 hours
Overall Height: 26.7"/679mm
Weight: 15 lb/6.8 kg
S_Connect: USB/mini USB/RS-232
Programmable by PC
Zero setting
Min/max/delta
PRESET function
2 references
Height measurement, Ø and centerlines
2 types of progressive speed
