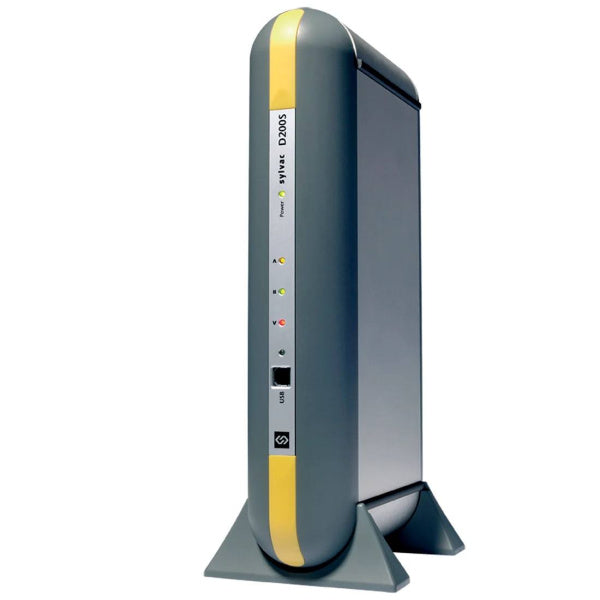

Fowler D200S High-Speed Probe Multiplexer

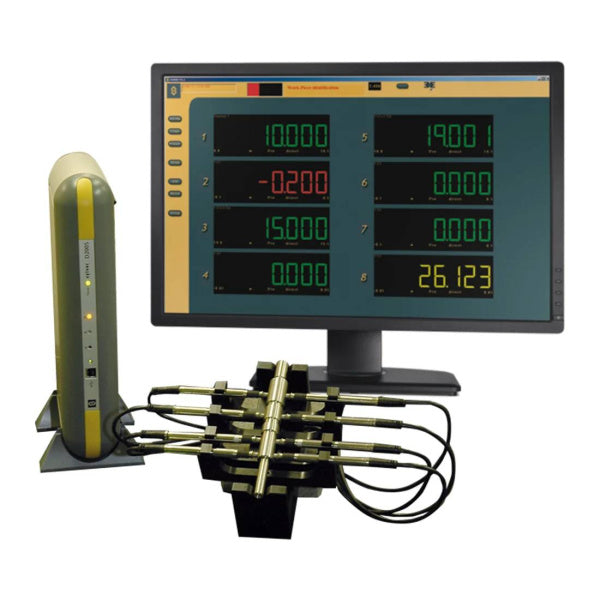

Complex parts with many critical dimensions can’t be checked one probe at a time without losing speed and consistency. The Fowler D200S is a high-speed probe multiplexer that reads up to 8 Sylvac capacitive probes at once for multi-point inspection.

A high-speed probe multiplexer for multigauging

Expanded measurement capability

• Connect up to 8 Sylvac capacitive probes (P2 to P25) for comprehensive multigauging
• Ideal for complex inspection tasks with multiple measurement points

High-speed dynamic measurement

• 200 measurements per second for real-time data capture
• Precise tracking of fast-moving parts and dynamic processes

Automation & software

• Commands pneumatic lifting units to combine measurement and handling
• Software monitors up to 24 channels, graphs results and exports to Excel
• Automated sequences for streamlined quality control

Specifications

• Measurement frequency: 200 values/sec
• Size: 304 × 171 × 61 mm; weight 1.2 kg
• Protection: IP50 (IEC 60529); modular aluminum/ABS, vertical or horizontal mount
• Dual connectivity: USB and RS232; programmable by PC
