Operator “feel” and over-travel make repetitive bore inspection inconsistent and tiring. The Fowler-Bowers XTH3 Bluetooth Holematic pistol-grip bore gauge is built to take both out of the measurement.
A Bluetooth pistol grip bore gauge system

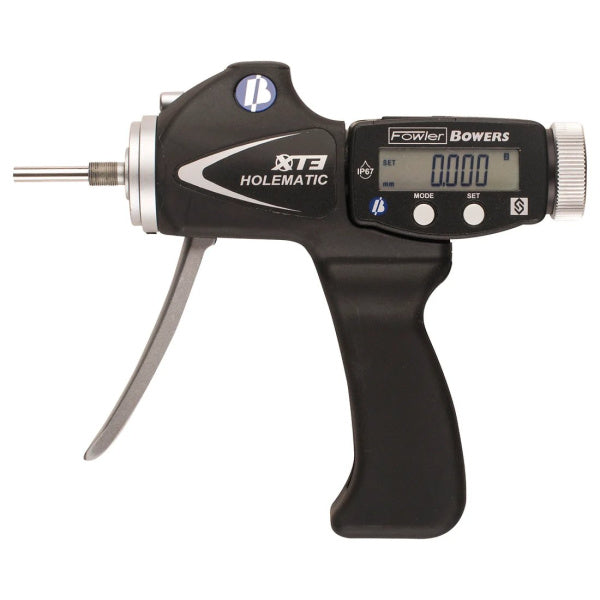

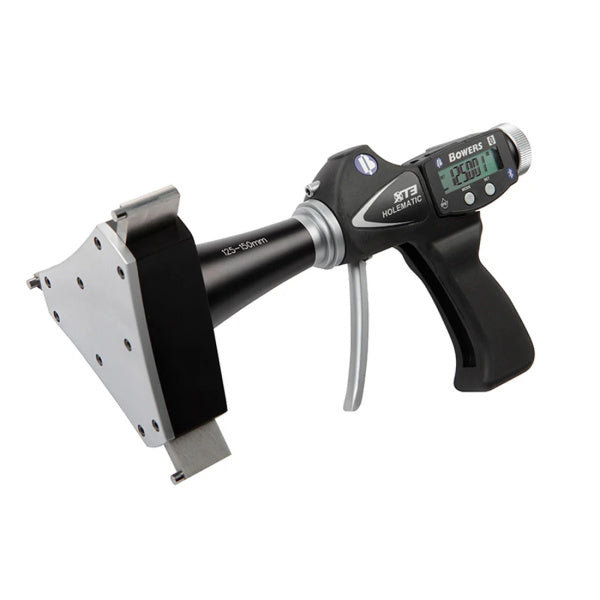

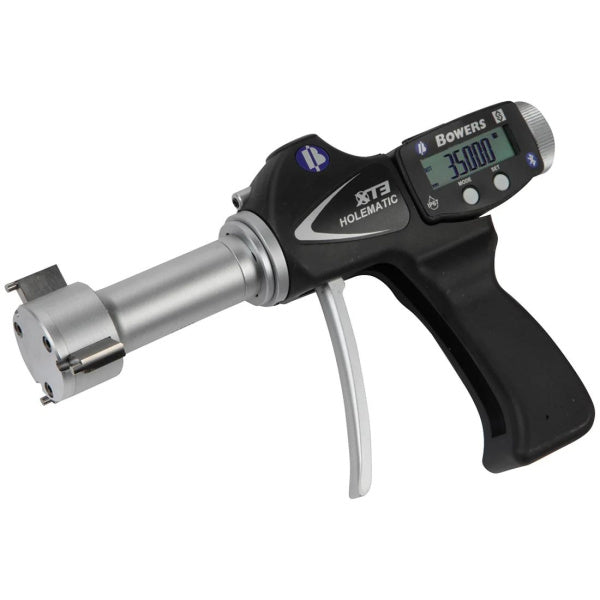

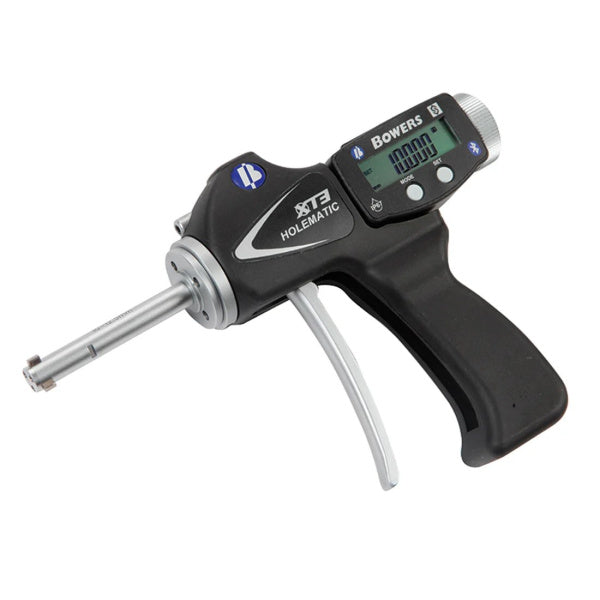

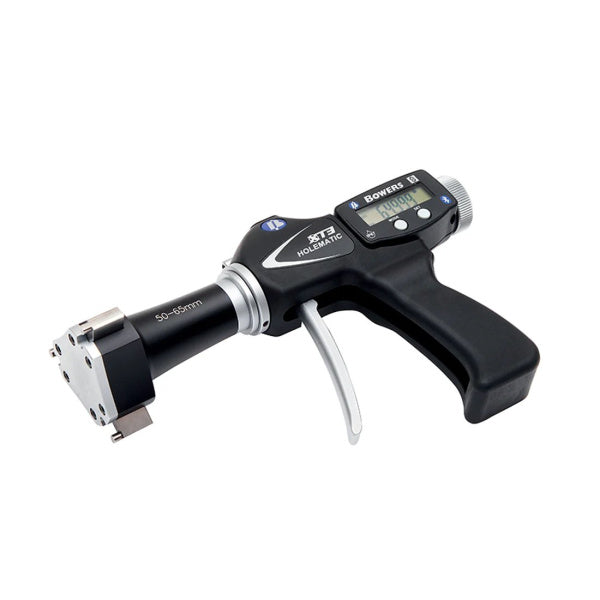

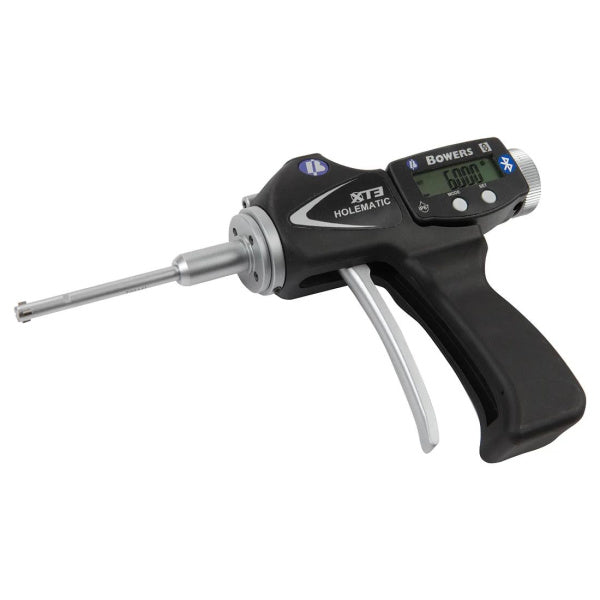

The Fowler-Bowers XTH3 Bluetooth Holematic is an electronic pistol-grip bore gage system designed for accurate internal diameter measurement with extended travel and fixed anvils. The pistol-grip handle incorporates constant measuring pressure to help eliminate operator “feel,” while adjustable trigger travel helps reduce over-travel and hand fatigue during repetitive inspection.
This series includes the XTH3 individual bore gage heads, pistol-grip handles, and complete Bluetooth sets shown in the options above. The modular system allows the same pistol-grip platform to be configured for different bore sizes and specialized applications.
XTH3 Key Features
-
Constant measuring pressure helps eliminate operator “feel” during bore measurement.
-
Adjustable trigger travel reduces unnecessary over-travel and can help minimize hand fatigue.
-
Large swivel display provides an easy-to-read electronic measurement display.
-
Self-centering heads with fixed anvils provide repeatable internal measurement.
-
Bluetooth connectivity provides wireless data-transfer capability.
-
Proximity output and USB connectivity support inspection data collection.
-
Four preset memories allow commonly used settings to be stored.
-
0.00005 in / 0.001 mm resolution for high-resolution electronic measurement.
-
Extended measuring range across the XTH3 family from 0.080 to 12 in (2–300 mm).
Measurement Capabilities
The XTH3 platform uses self-centering bore gage heads with fixed anvils. Fowler specifies tungsten carbide measuring faces on 3-point heads from 0.500 in (12.5 mm) and larger. Sizes over 0.500 in (12.5 mm) feature blind-bore capability.
Special-anvil heads are available for applications involving threads, splines, slots, and other specialized geometries. Contact Fowler Technical Department for special-anvil applications.
Bluetooth Electronic Bore Measurement
The Bluetooth XTH3 combines electronic bore measurement with connectivity for modern inspection workflows. In addition to Bluetooth, the system supports proximity output and USB connectivity. Four preset memories provide convenient access to frequently used measurement settings.
Available Configurations
| Configuration |
Available Range |

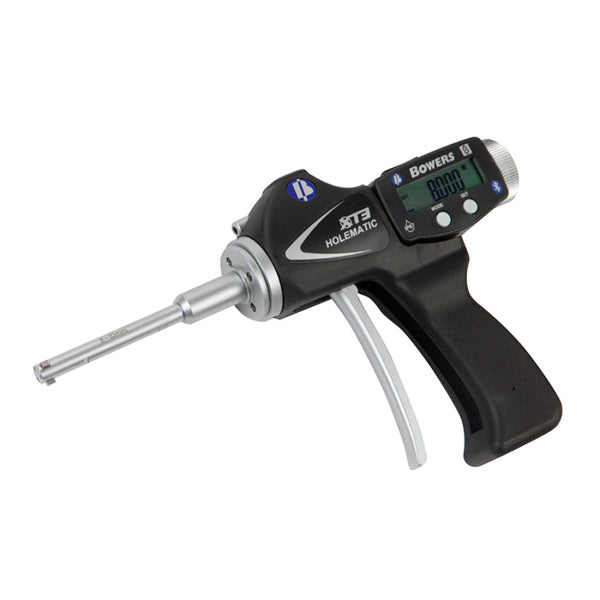

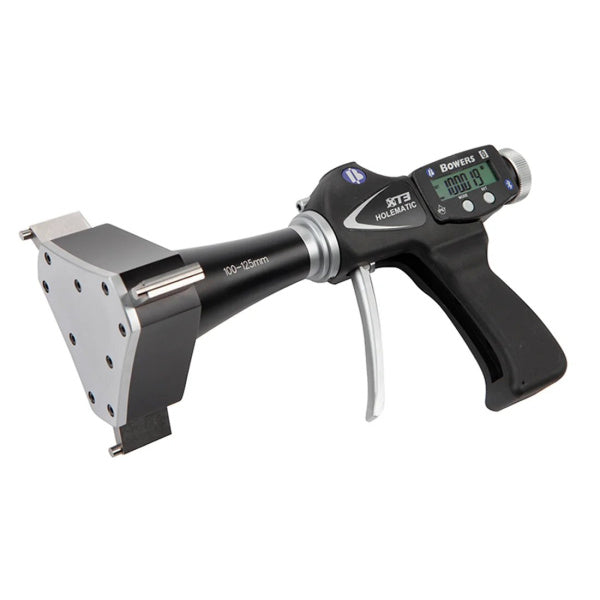

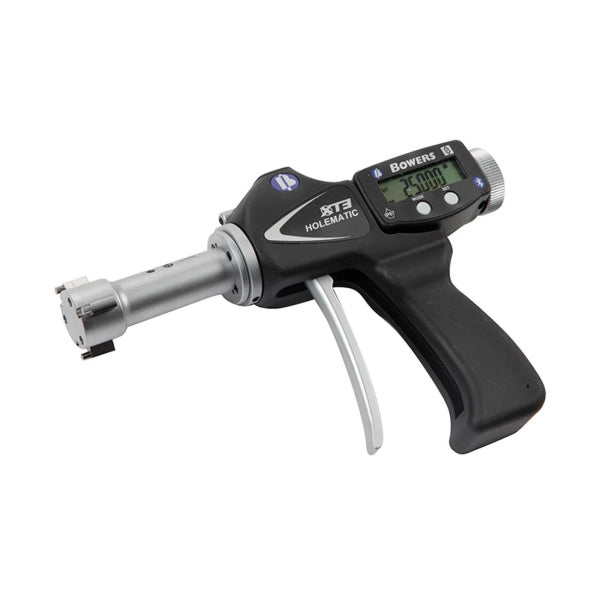

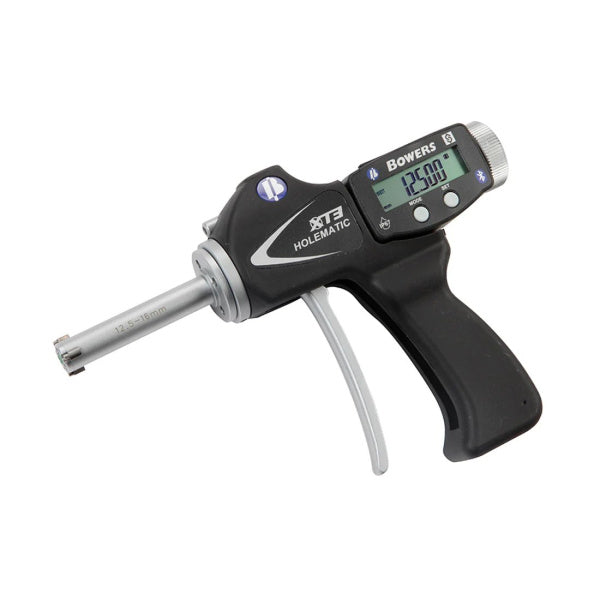

| Individual XTH3 Head / Pistol Grip |
0.080–0.100 in through 11–12 in, depending on selected head |
| Pistol Grip Only |
0.750–4 in and 4–12 in options |

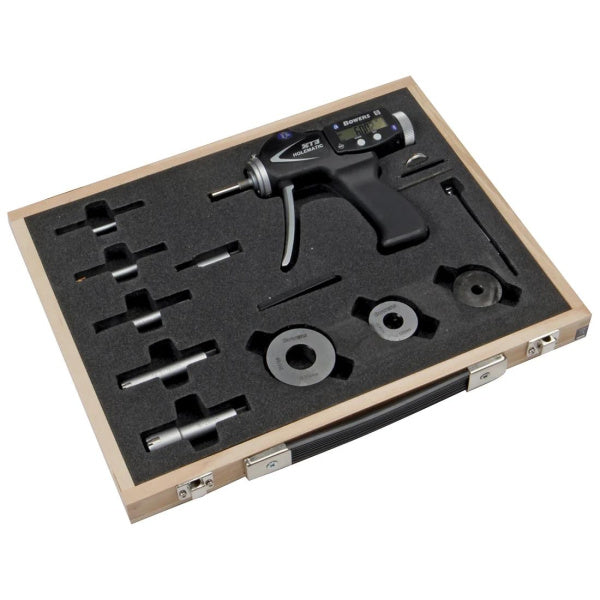

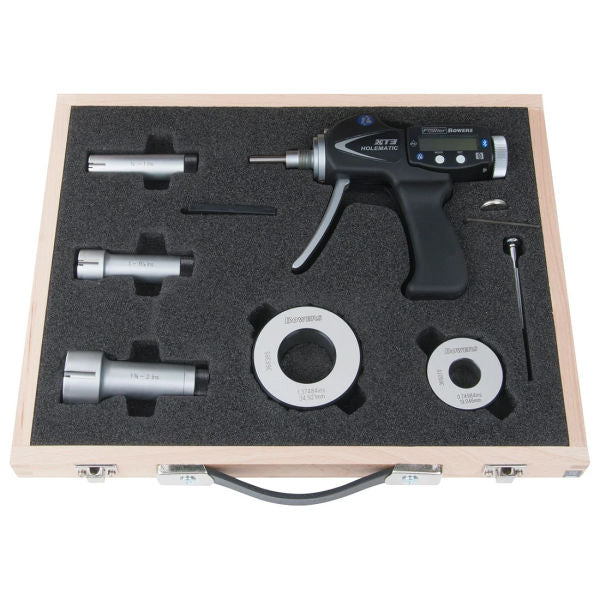

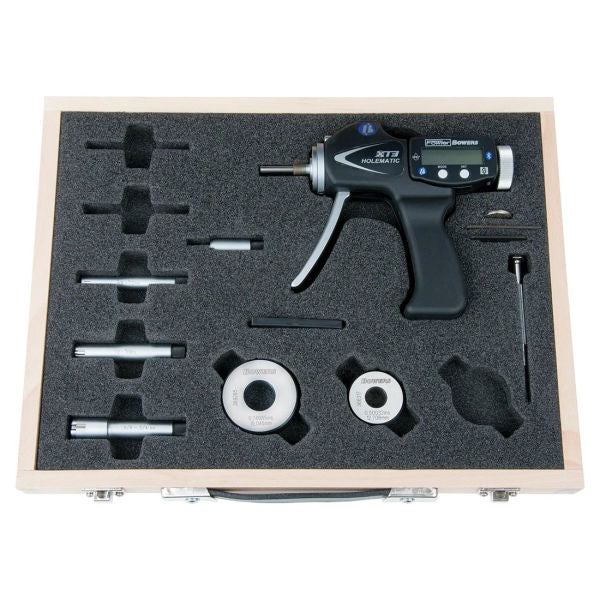

| Complete Set |
0.080–0.250 in, 0.250–0.375 in, 0.375–0.750 in, 0.750–2 in, 0.750–4 in, 0.750–2 in, and 4–6 in options represented in this listing |
Technical Specifications
| Specification |
XTH3 Bluetooth Holematic |
| Resolution |
0.00005 in / 0.001 mm |
| Family Range |
0.080–12 in / 2–300 mm |
| Measuring System |
Self-centering heads with fixed anvils |
| Measuring Faces |
Tungsten carbide on applicable 3-point heads from 0.500 in / 12.5 mm and up |
| Blind-Bore Capability |
Sizes over 0.500 in / 12.5 mm |
| Display |
Large swivel electronic display |
| Connectivity |
Bluetooth, proximity output, USB |
| Preset Memories |
4 |
Calibration & Setting

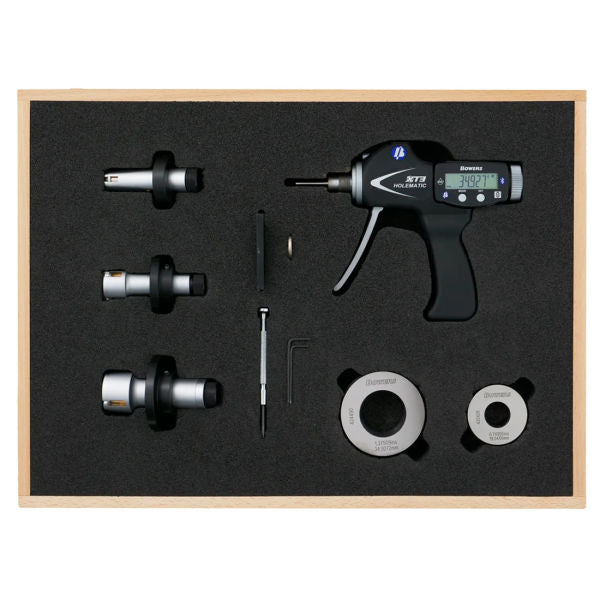

Fowler states that setting rings are included with XTH3 sets. Fowler also specifies UKAS certificates for the pistol grip, heads, and rings supplied with applicable XTH3 configurations.
Applications
- Precision bore inspection
- Internal diameter measurement
- Production quality control
- Machine shop inspection
- Manufacturing and metrology
- Blind-hole measurement
- Thread, spline, and slot inspection with specialized anvils
- Repetitive dimensional inspection where consistent measuring pressure is important
Why Use a Pistol-Grip Bore Gage?
The XTH3 pistol-grip design is intended to provide a consistent method of positioning and measuring internal bores. Its constant measuring pressure reduces reliance on operator feel, while adjustable trigger travel is designed to improve handling during repeated measurements. The modular head system allows the platform to be expanded as inspection requirements change.
Product Information
Brand: Fowler-Bowers
Series: XTH3 Bluetooth Holematic
Product Type: Electronic Pistol-Grip Bore Gage
Measurement: Internal Diameter / Bore Measurement
Resolution: 0.00005 in / 0.001 mm
Maximum Family Range: 12 in / 300 mm
Connectivity: Bluetooth, Proximity Output, USB
Note: Accuracy and measuring depth vary by individual bore gage head size. Refer to the specifications for the selected configuration or contact CRB Supply for assistance selecting the appropriate XTH3 head or set for your application.
