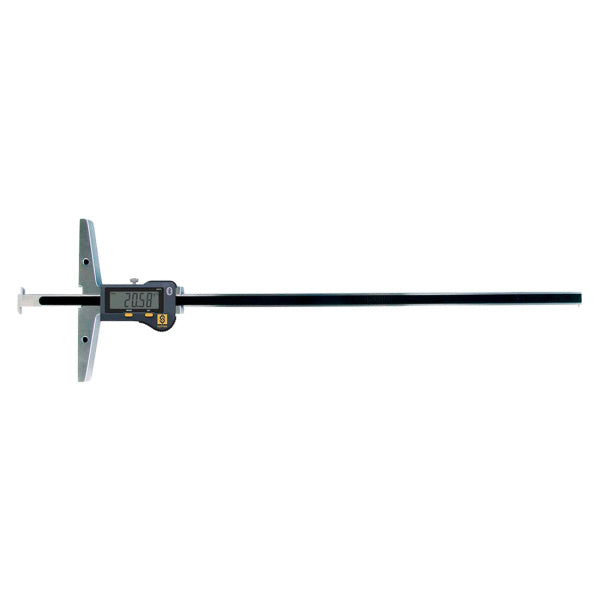

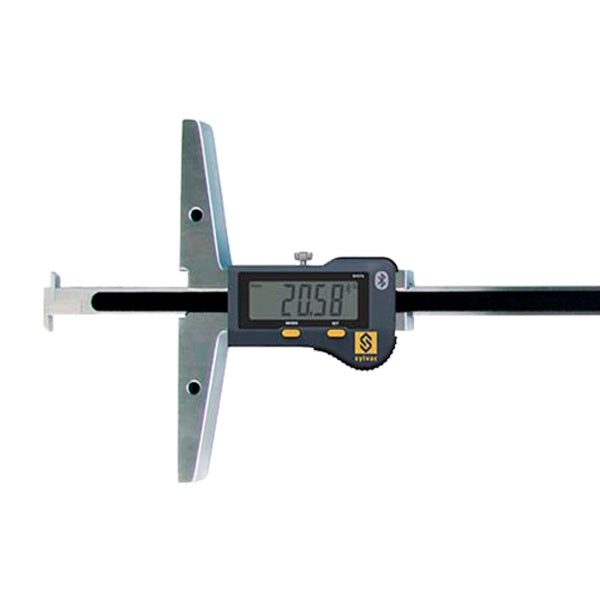

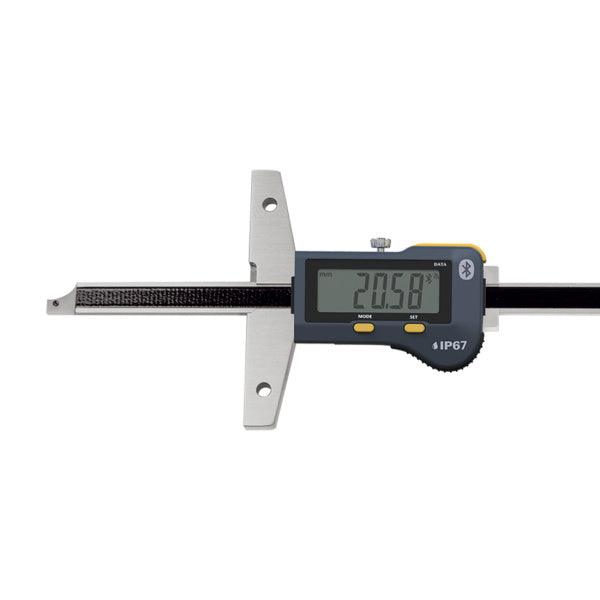

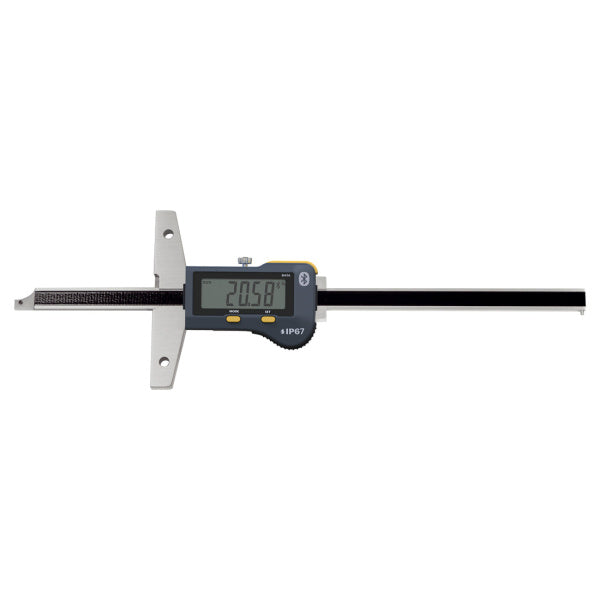

Fowler Bluetooth Electronic Depth Gage

Depth, blind-bore and step measurements each tend to need a different tool. The Fowler Bluetooth Electronic Depth Gage measures basic, blind-bore, and stepped depths with wireless data output. Choose the anvil type and beam length above.

A Bluetooth electronic depth gage for bores and steps

Anvil types

• SF: 5.5 mm measuring contact surface for basic, easy-access depth measurements and blind-bore depths.
• Rotary Pin: supplied with a 1.5 mm adjustable pin that can be positioned parallel or perpendicular to the base.
• Interchangeable Anvil: supplied with a mono-plane measuring probe that measures in normal or inverted positions using the same probe; optional measuring inserts available.

Features

• Coolant-proof, dust-proof — IP67 (IEC 60529)
• Bluetooth communication for error-free data collection
• Resolution: 0.0005" / 0.01 mm
• Accuracy: 0.0015" / 0.03 mm (increasing to about 0.002" / 0.05 mm on the longest range)
• Frame made of hardened stainless steel
• 4" measuring base; 8" and 12.5" base attachments available
• Sleep mode after 20 minutes with automatic wake-up on movement
