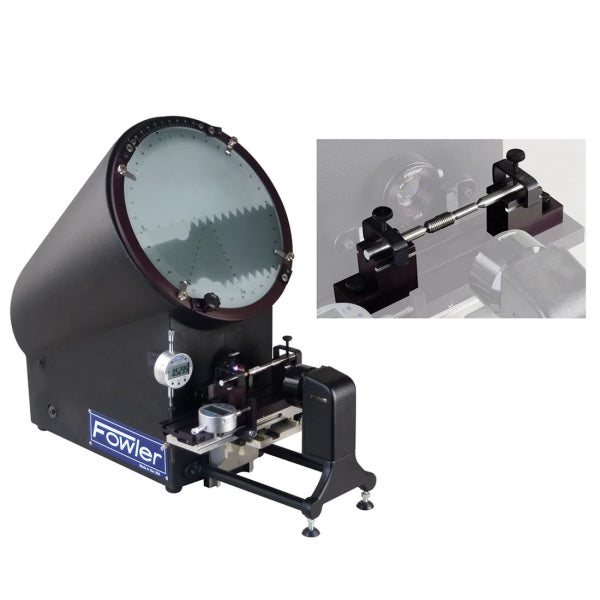

Fowler 12" Bench Top Optical Comparator

Comparing a small profile against a drawing by eye is slow and subjective. The Fowler 12" Basic Bench Top Optical Comparator is a lightweight, portable and economical comparator for comparative and absolute measurement — well suited to toolrooms and inspection departments. Select your configuration above.

A benchtop optical comparator for the toolroom

Features

• 12" single-quadrant protractor screen graduated for 10X, 20X and 40X magnification
• Supplied with a 10X projection lens (additional lenses available)
• Two AGD Group 2 electronic digital indicators, 0–1" / 25 mm, 0.0005" / 0.01 mm resolution
• T-slot stage with 6" horizontal and 2-1/2" vertical travel
• Runs on standard 110 V power — no special electrical supply needed

Configurations

• Basic: comparator with 10X lens and two indicators
• With accessory package: adds a pair of T-slot V-blocks and a pair of T-slot centers
