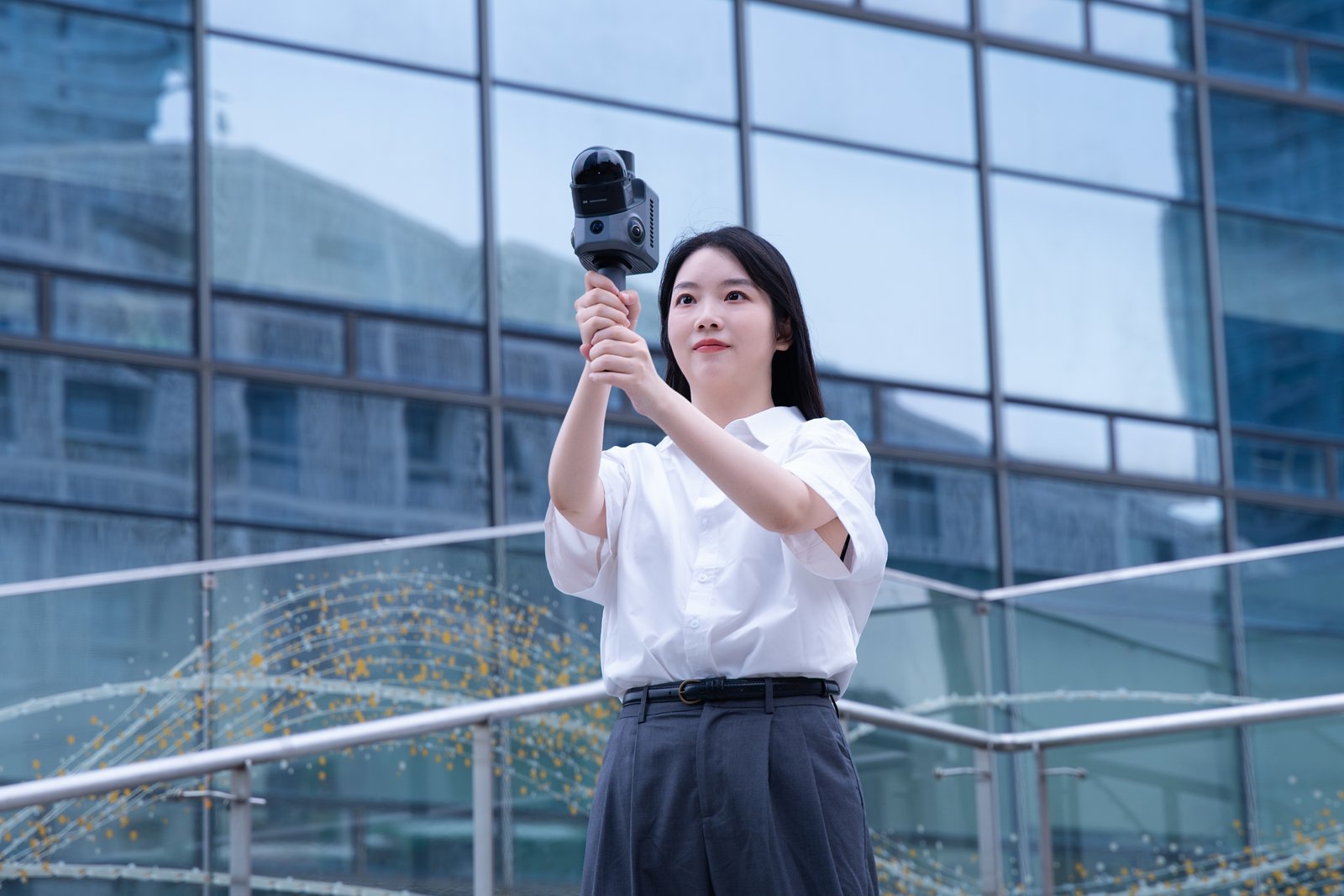

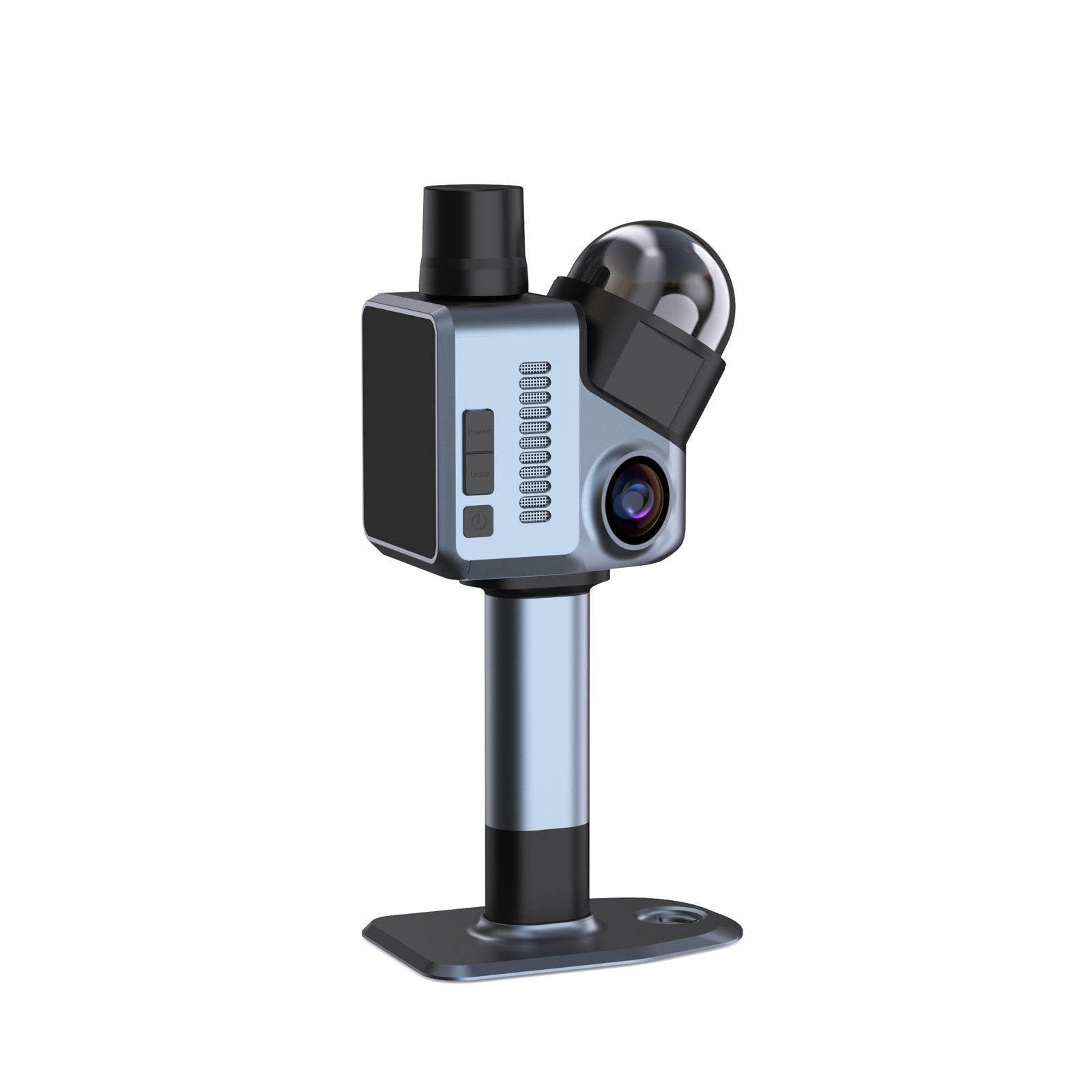

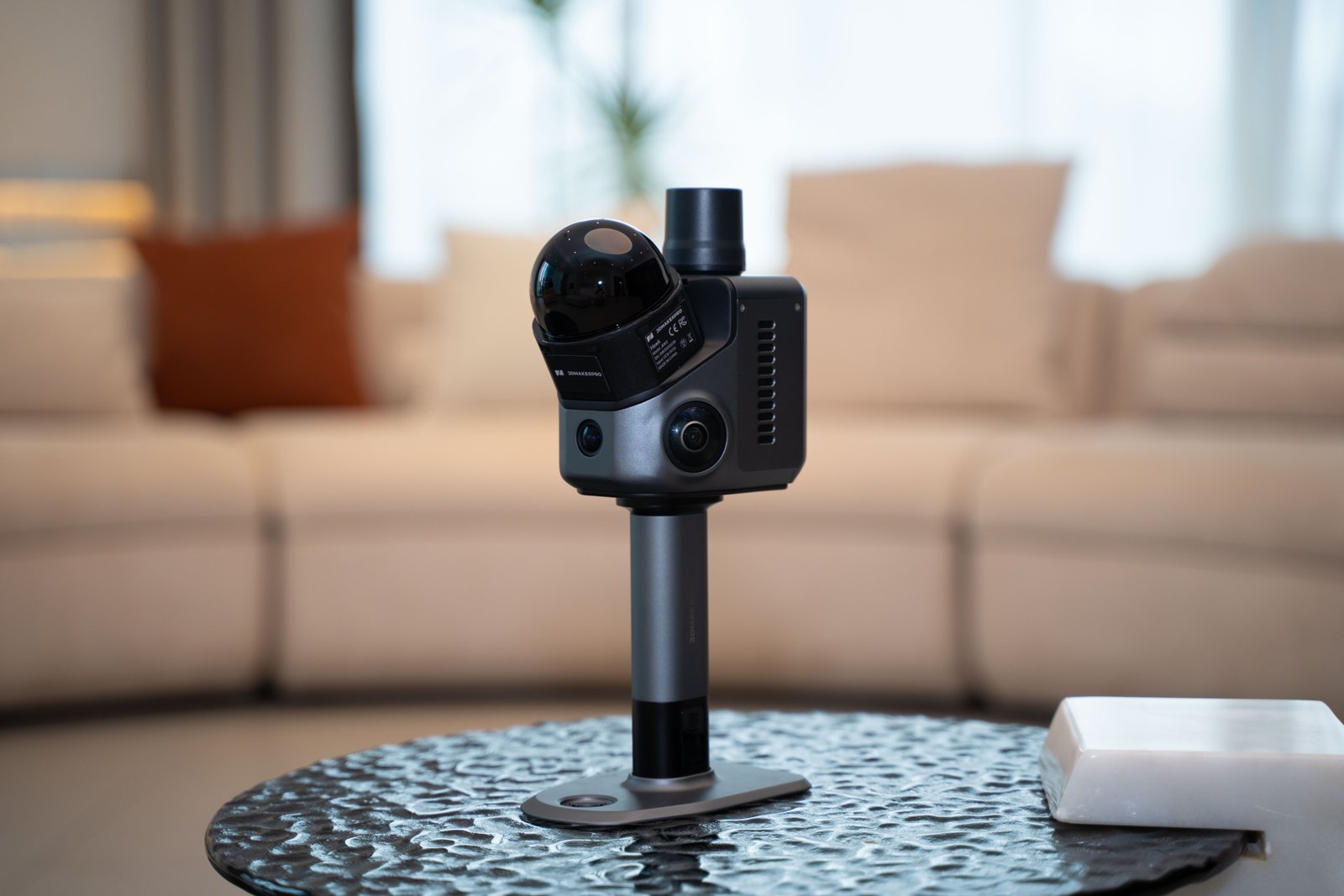

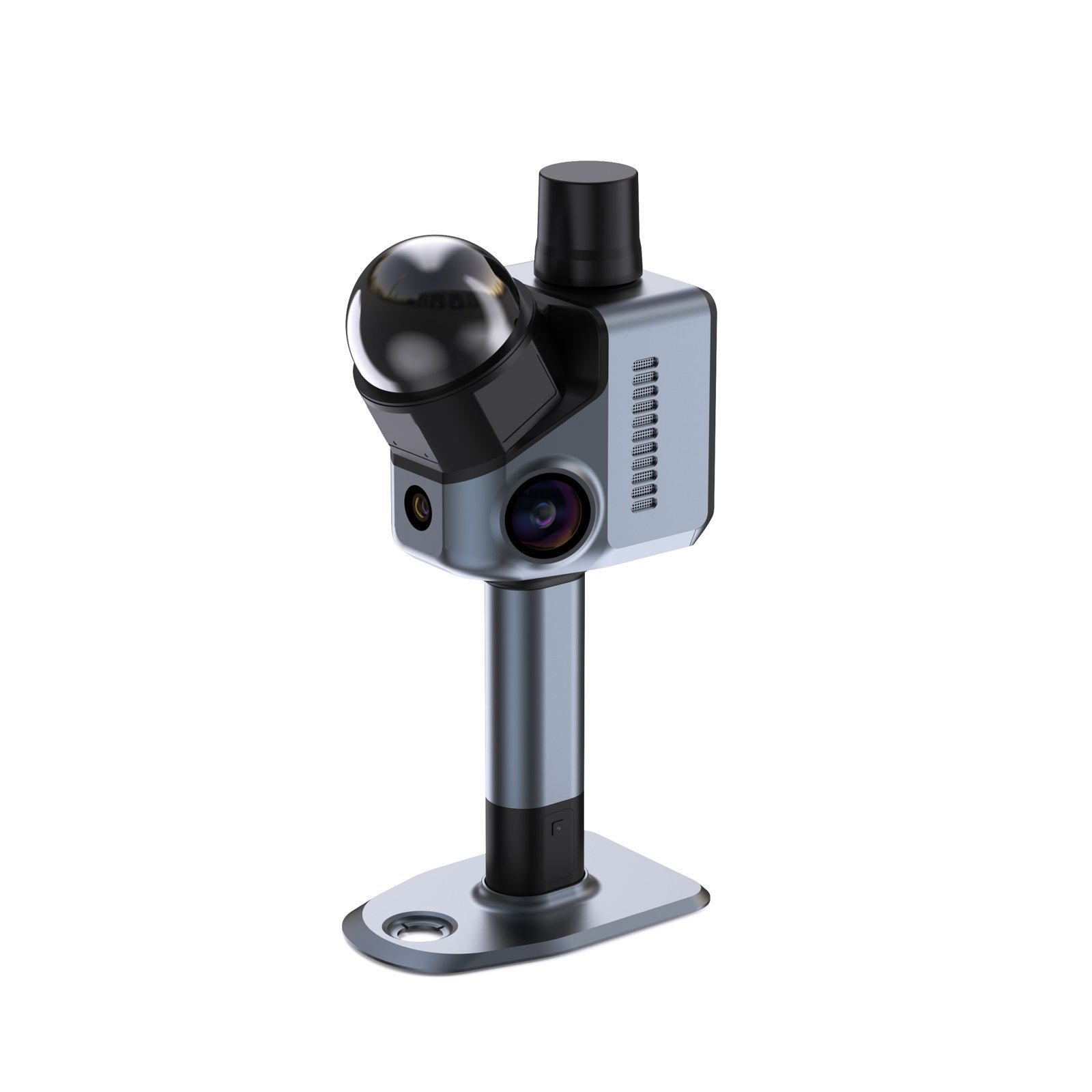

3DMakerPro Hawk Professional LiDAR 3D Scanner

The 3DMakerPro Hawk is a professional handheld LiDAR 3D scanner — the flagship of the range, built for survey-grade accuracy in large and demanding spaces. It upgrades the LiDAR core to 1.5 cm accuracy and 480,000 points per second, pairs it with a 13 MP one-inch dual-camera imaging system, and houses it in an IP65 all-metal body that weighs just 900 g. Capture buildings, sites, and outdoor scenes in true 3D, then go from point cloud to publish in one workflow.

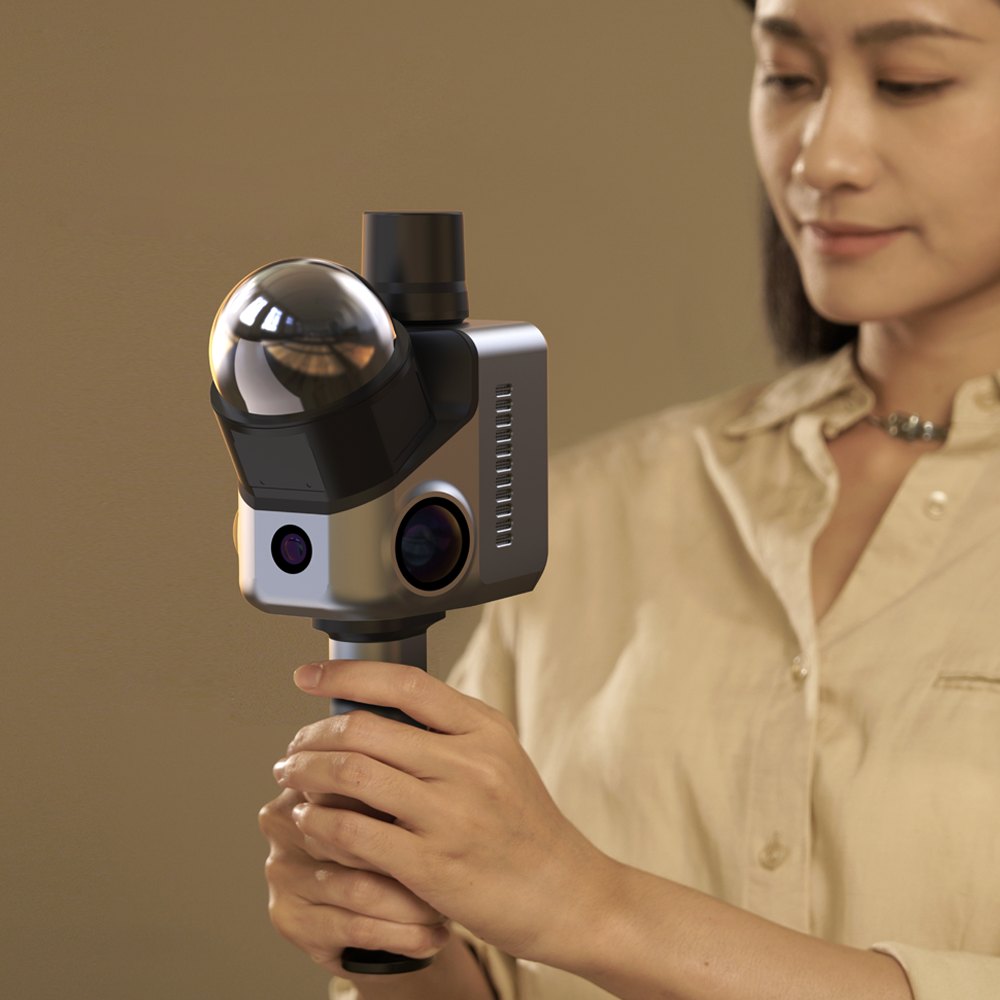

A professional handheld LiDAR scanner, built for accuracy

Upgraded LiDAR: 1.5 cm accuracy, 480,000 points/sec

Comprehensive accuracy improves to 15 mm and the vertical scan angle widens to 63.5°. A multiple-echo technique lifts resolution to 480,000 points per second, capturing fine structure and edges other scanners miss.

13 MP 1-inch imaging with NIR tracking

Dual 13 MP one-inch sensor cameras deliver lifelike color texture, while an NIR visual tracking system keeps capture stable and continuous as you move through a space.

Built for the field: IP65, all-metal

A reverse-water industrial design meets the IP65 standard, and an all-metal casing improves heat dissipation for long sessions. At 900 g, the Hawk stays easy to carry all day.

Self-contained, with a fast-charging battery grip

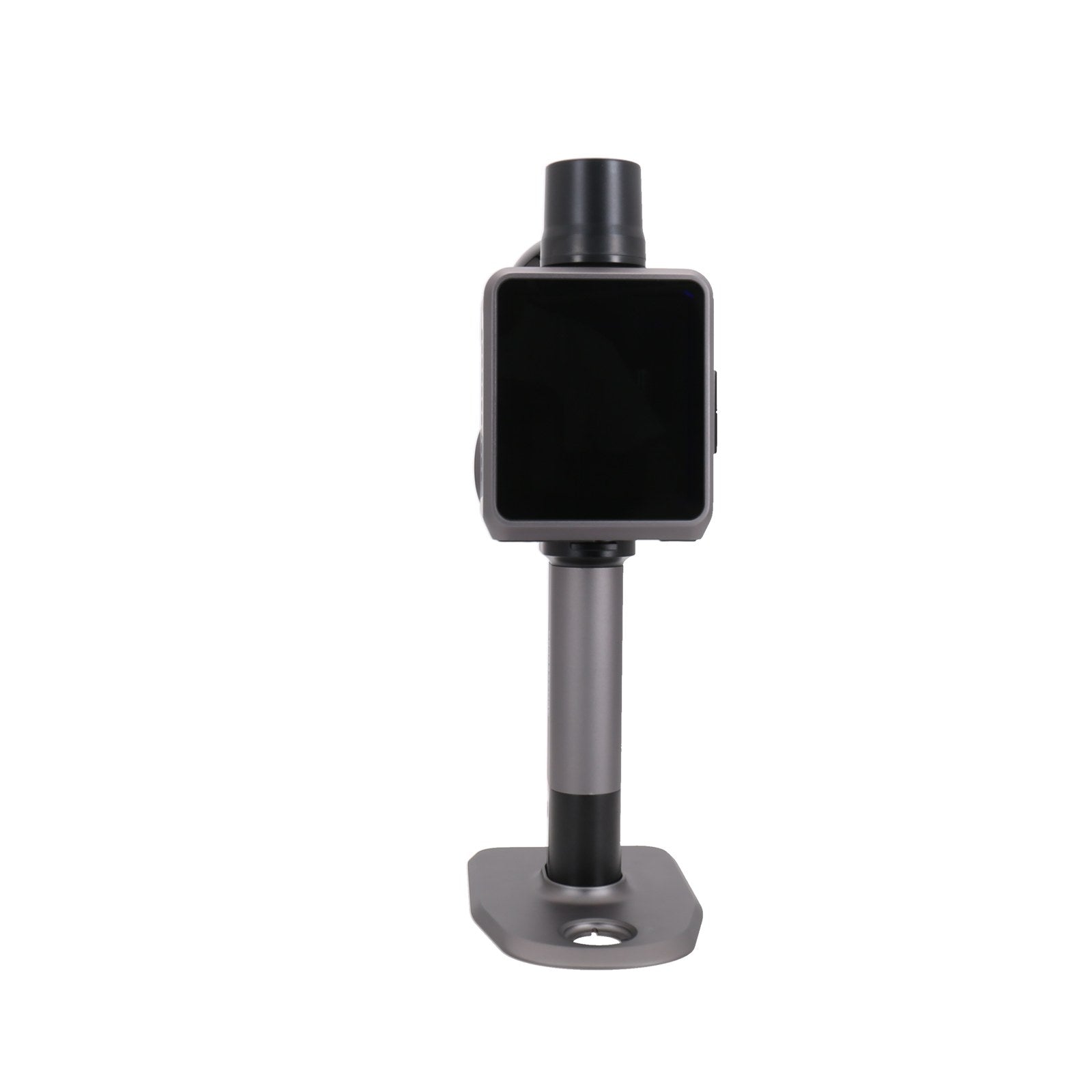

A 3.9" AMOLED touchscreen shows scanning progress in real time with no external device required. The 12,000 mAh battery grip fast-charges 0–80% in 30 minutes on 65W and runs on external power while charging.

RayStudio & Vision Cloud — free with every Hawk

RayStudio and the Vision Cloud Exhibition platform are included free, with lifetime updates and no subscription. The workflow covers:

• Real-time capture on the on-board AMOLED screen
• One-click import, filtering, and stitching
• 3D modeling, colored mesh, and Gaussian splatting
• Quality inspection and measurement
• Export to PLY and OBJ
• Publish shareable online 3D scenes to Vision Cloud

How the Hawk compares

The Hawk sits at the top of the 3DMakerPro handheld LiDAR range. Where the Eagle and Raven cover general and spatial capture, the Hawk is the accuracy-and-resolution flagship.

Full technical specifications

• Accuracy: 1.5 cm @ 10 m, 3 cm @ 20 m, 5 cm @ 40 m
• Scan radius: 40–70 m (>10% or >80% reflectivity)
• Scan range: 80–140 m
• Scan angle: 360° horizontal × 63.5° vertical
• Point cloud frequency: 480,000 points/second (multiple echo)
• Laser: 905 nm, Class 1 (eye-safe, IEC 60825-1:2014)
• Color texture: 13 MP 1-inch sensor camera ×2, NIR visual tracking
• Data interface: USB Type-C ×2, Wi-Fi 5, 3.9" AMOLED screen
• Output formats: PLY (point cloud & 3DGS), OBJ (colored mesh)
• Protection: IP65, all-metal casing
• Battery: 12,000 mAh, ~1 hour, 65W fast charge (0–80% in 30 min)
• Compute: 8-core 2.4 GHz, 32 GB (TF card expandable)
• Dimensions & weight: 120 × 145 × 85 mm, 900 g

Capture from any platform

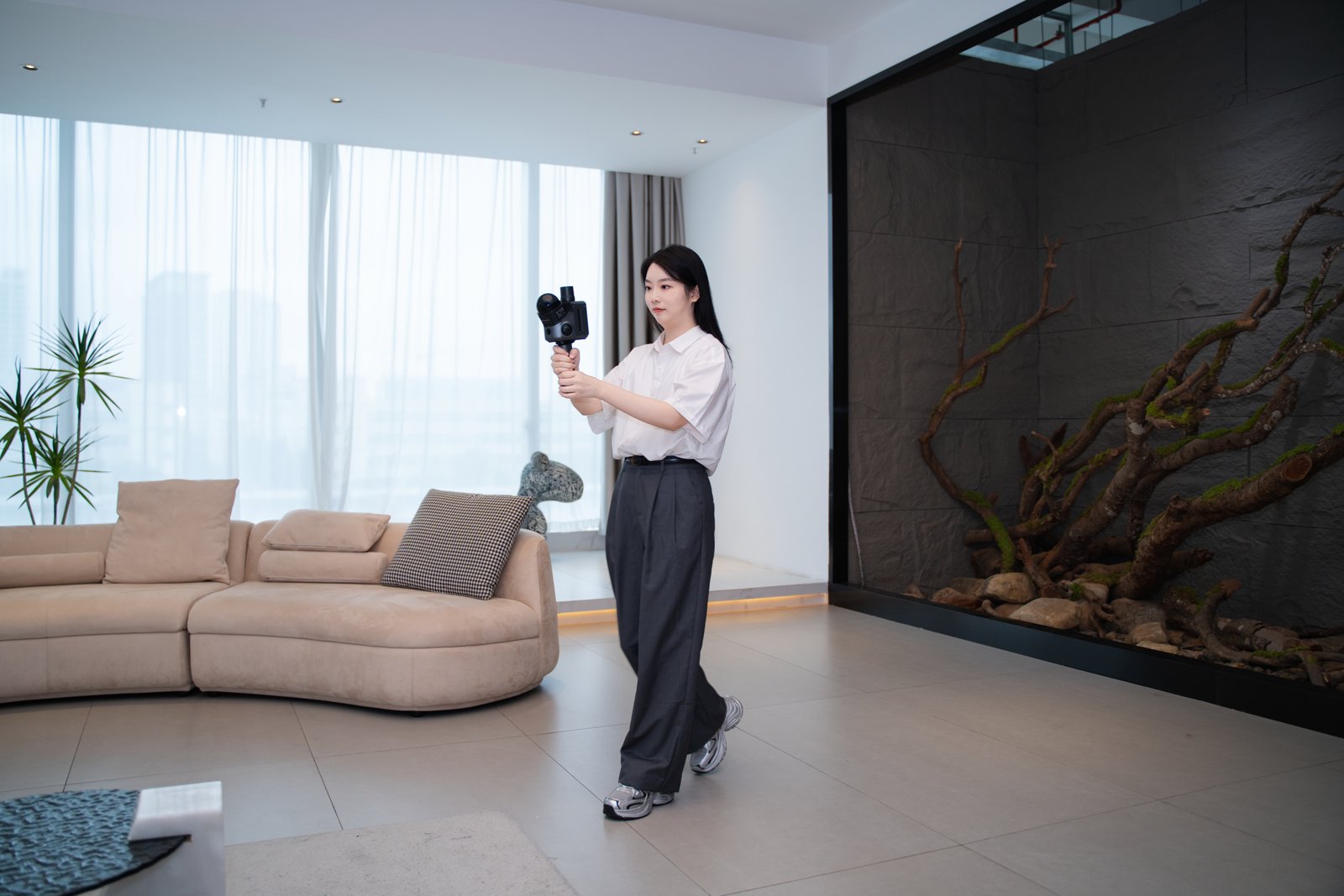

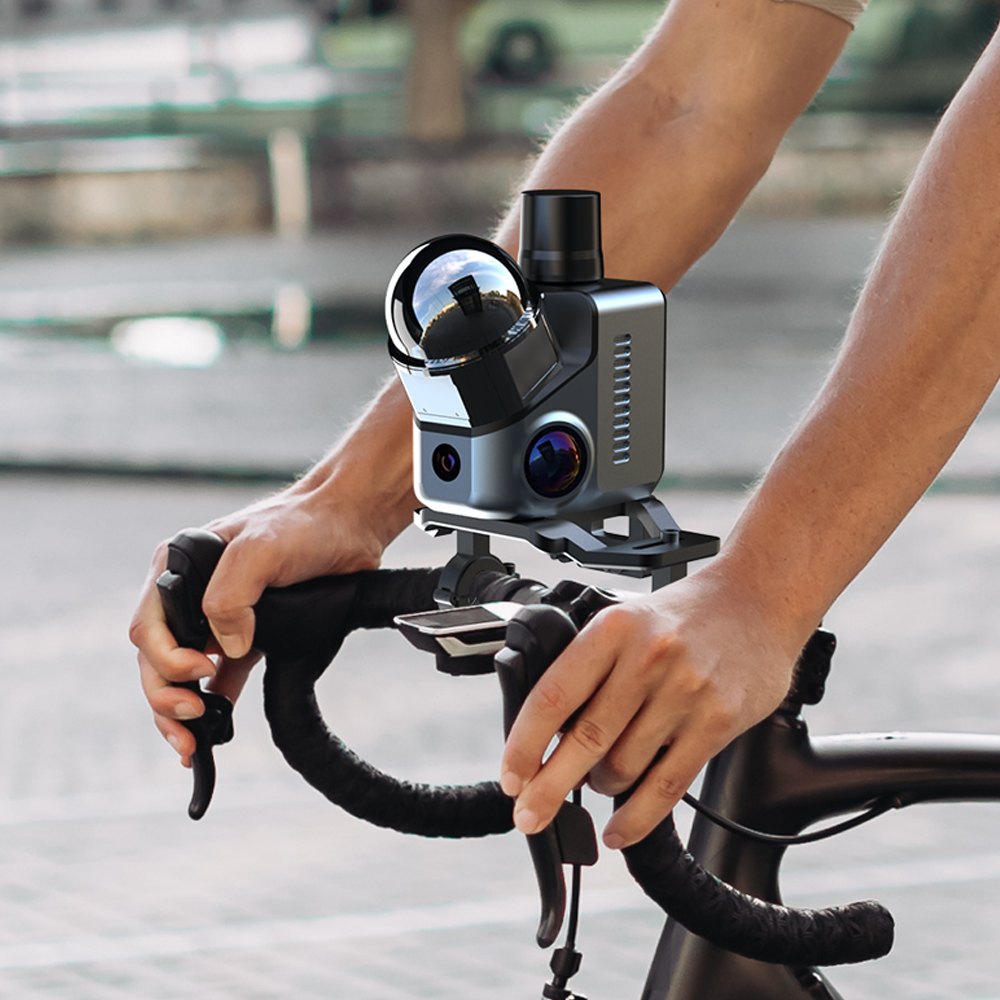

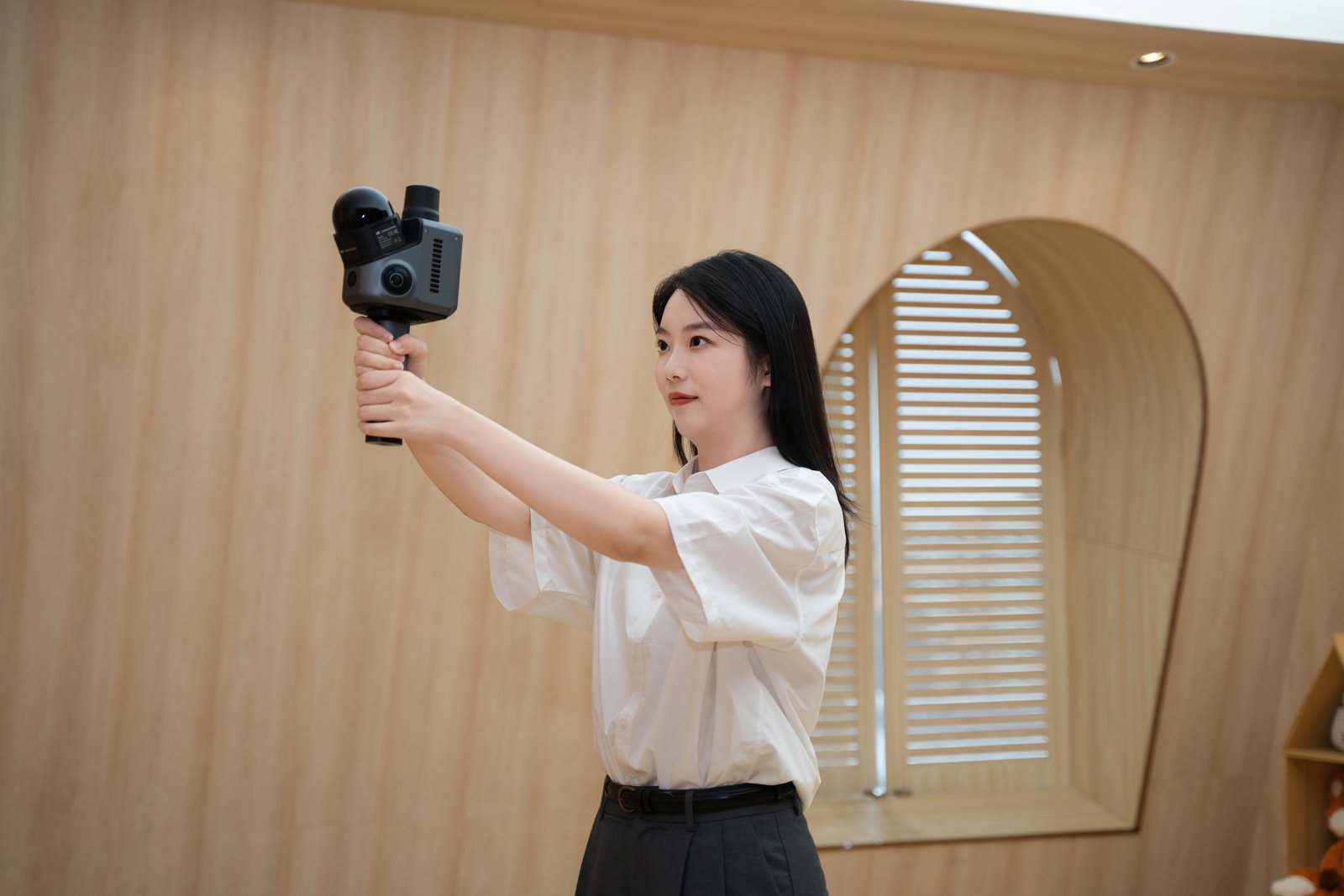

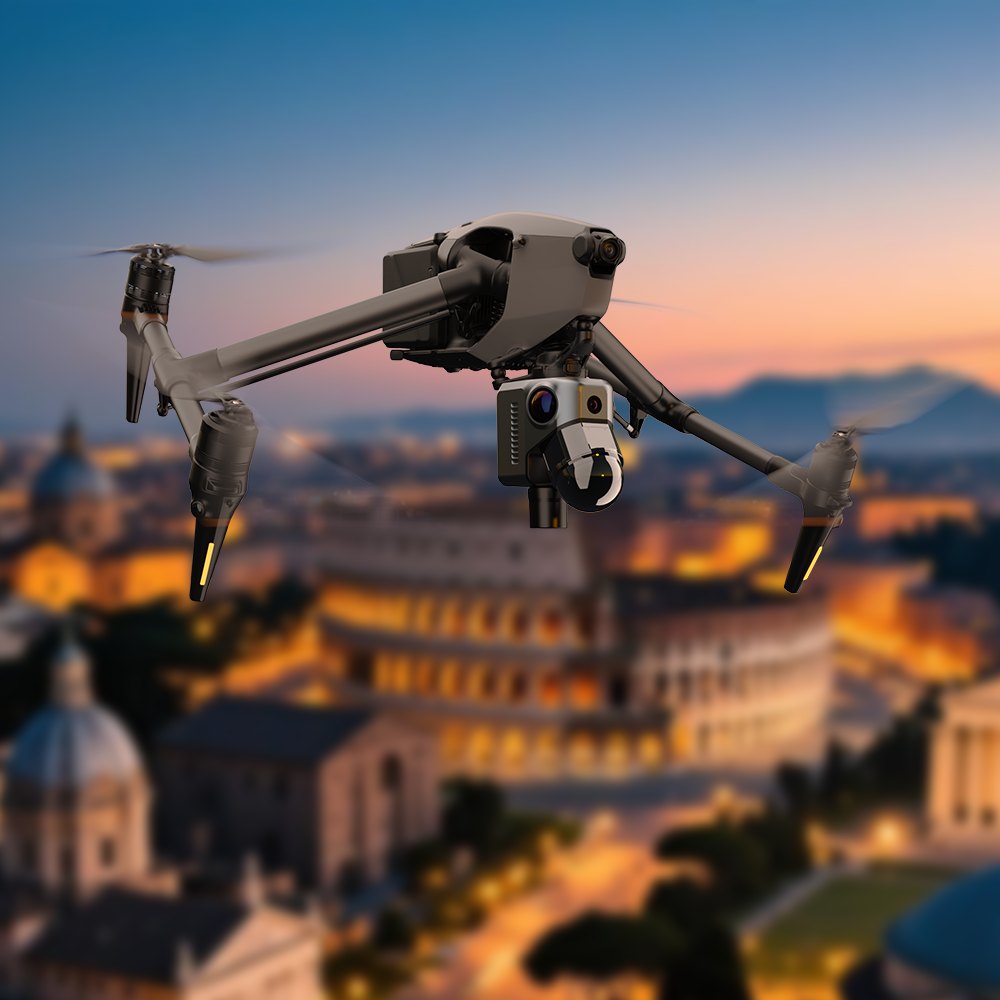

Handheld for walk-throughs, or mounted for scale — the Hawk adapts to the job. Carry it, fly it on a drone for aerial mapping, or mount it to a vehicle or backpack for continuous mobile capture.

What Hawk LiDAR unlocks

• Survey & mapping — survey-grade 3D of buildings, sites, and terrain, georeferenced for accurate comparison.
• Aerial & mobile mapping — drone-, vehicle-, or backpack-mounted capture across large areas in a single pass.
• Architecture, engineering & construction — precise as-builts and BIM-ready data for design and verification.
• Cultural heritage — high-fidelity, non-contact 3D records of sites and monuments.
• Public safety & forensics — reconstruct scenes quickly with court-ready spatial records.
• Real estate & virtual tours — turn a walk-through into a shareable online 3D scene.

Why buy the Hawk from CRB Supply

• Authorized & warrantied — genuine 3DMakerPro stock with the full manufacturer warranty, not a grey-market import.
• US stock, fast dispatch — ships free from a US warehouse in 1–3 business days.
• We help you spec it — talk to someone who knows LiDAR and whether the Hawk or a lower tier fits your job.
• Built for pros — quotes, bulk pricing, and net terms for surveying firms, agencies, schools, and studios.

Hawk LiDAR scanner FAQs

How accurate is the Hawk?

Comprehensive accuracy is 1.5 cm at 10 m (3 cm at 20 m, 5 cm at 40 m), with 480,000 points per second and a multiple-echo technique for fine detail.

How is the Hawk different from the Eagle and Raven?

The Hawk is the flagship: higher accuracy (1.5 cm vs 2 cm), more than double the point rate, a wider 63.5° vertical field of view, 13 MP one-inch imaging, and an IP65 all-metal body at 900 g. Choose it when accuracy and resolution matter most.

Is it weatherproof?

Yes. The Hawk meets the IP65 standard with a reverse-water design and an all-metal casing for better heat dissipation.

Can I mount it on a drone or vehicle?

Yes. The Hawk works handheld or mounted on drones, vehicles, and backpacks for aerial and mobile mapping.

What file formats can I export?

Colored point clouds and 3D Gaussian splatting as PLY, and colored polygonal models as OBJ — ready for CAD, BIM, and 3D tools.

Is the laser safe to use around people?

Yes. The Hawk uses a 905 nm Class 1 laser, certified eye-safe under IEC 60825-1:2014 for normal use.
