3DMakerPro Eagle Series LiDAR Scanner

The 3DMakerPro Eagle Series is a handheld LiDAR 3D scanner built for fast, accurate capture of large spaces — whole buildings, outdoor scenes, and sites a tripod scanner can't reach from one position. It pairs a hybrid solid-state laser with 8K color imaging and a built-in RTK module, so every scan is detailed, true-color, and bound to real-world coordinates. Choose the single-camera Eagle or the four-camera Eagle Max; both include RTK and the full RayStudio software workflow.

A handheld LiDAR scanner built for large-space capture

8K ultra imaging, 360° True 3D

Hybrid solid-state laser technology delivers a 360° horizontal × 59° vertical field of view with 8K color detail, capturing a full spatial scene at high precision while keeping cumulative error under control. At up to 200,000 points per second, you cover a room, a facade, or an entire site in a single walk-through.

RTK georeferenced positioning

Both models include an RTK (real-time kinematic) module that binds every scan to real-world coordinates. That means accurate alignment between captures and survey-grade comparison between your scanned data and the actual site — no manual tie-points required.

Lightweight, all-in-one workflow

At just 1.5 kg, the Eagle is an integrated handheld unit designed for efficient single-person collection. Point cloud, photo, and IMU data import into RayStudio in one click for filtering, stitching, 3D modeling, editing, and quality inspection.

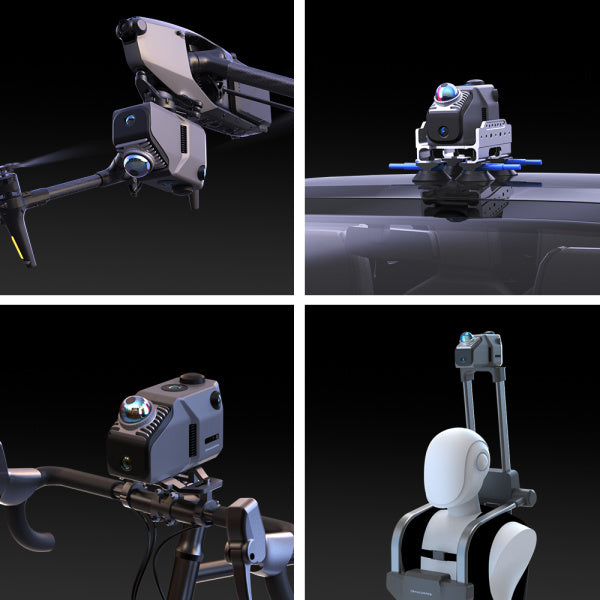

Multi-environment capture, rich output

Switch seamlessly between environments and render results as colored point clouds, shaded point clouds, 3D Gaussian splatting, colored mesh, and 360° panoramic tours. Publish finished scenes to the Vision Cloud Exhibition platform to share interactive 3D with clients.

RayStudio & Vision Cloud — free with every Eagle

RayStudio and the Vision Cloud Exhibition platform are included free with every scanner, with lifetime updates and no subscription. The workflow covers:

• One-click import of point cloud, photo, and IMU data
• Automatic stitching and point-cloud filtering
• 3D modeling, mesh, and Gaussian splatting
• Quality inspection and measurement
• Export to PLY, OBJ, and ASC
• Publish interactive scenes to Vision Cloud

Eagle vs Eagle Max — which is right for you?

Both share the same LiDAR core, 2 cm accuracy, and included RTK. The difference is the camera system and how fast you capture dense color.

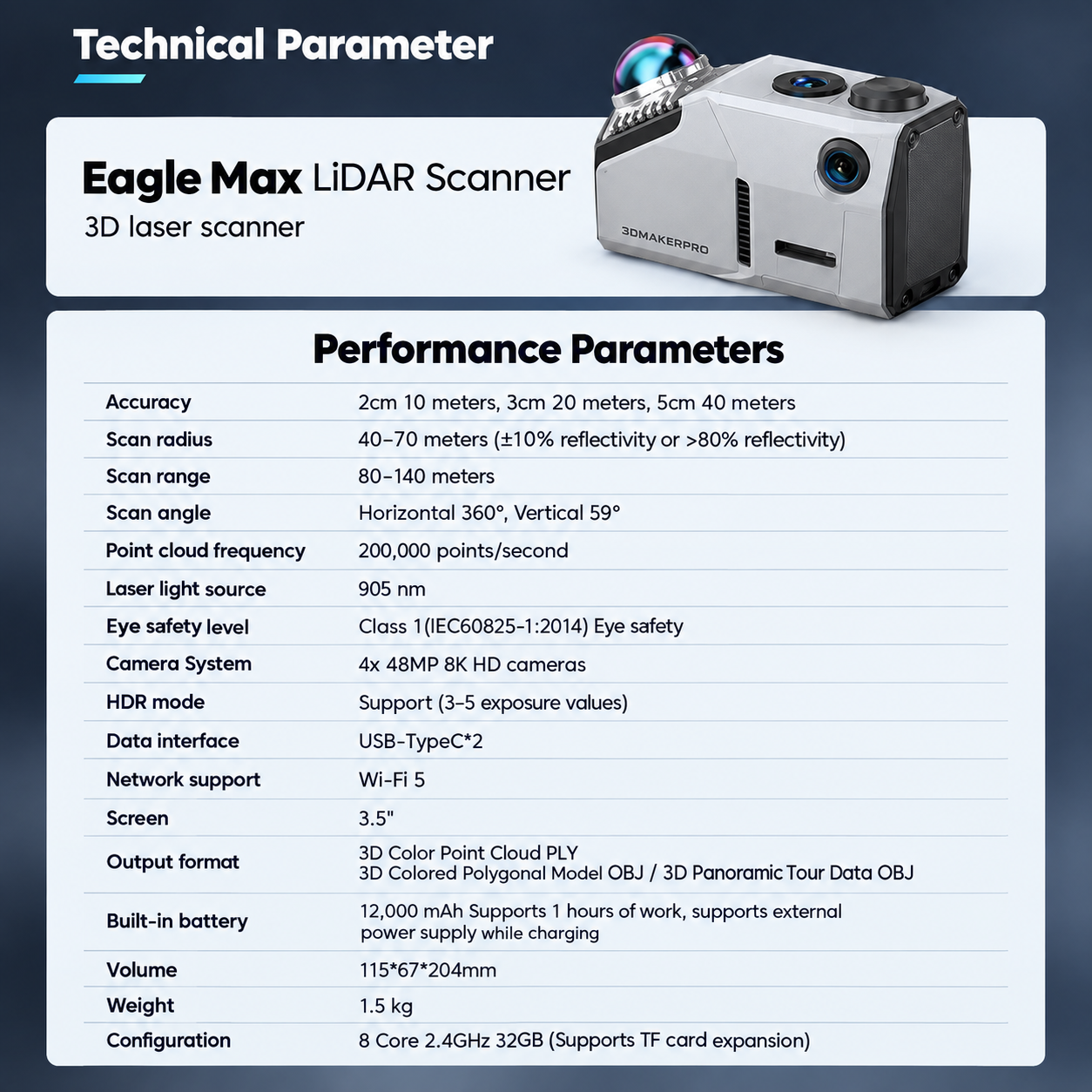

Full technical specifications

• Accuracy: 2 cm @ 10 m, 3 cm @ 20 m, 5 cm @ 40 m
• Scan radius: 40–70 m
• Scan range: 80–140 m
• Scan angle: 360° horizontal × 59° vertical
• Point cloud frequency: 200,000 points/second
• Laser: 905 nm, Class 1 (eye-safe, IEC 60825-1:2014)
• HDR mode: supported (3–5 EV)

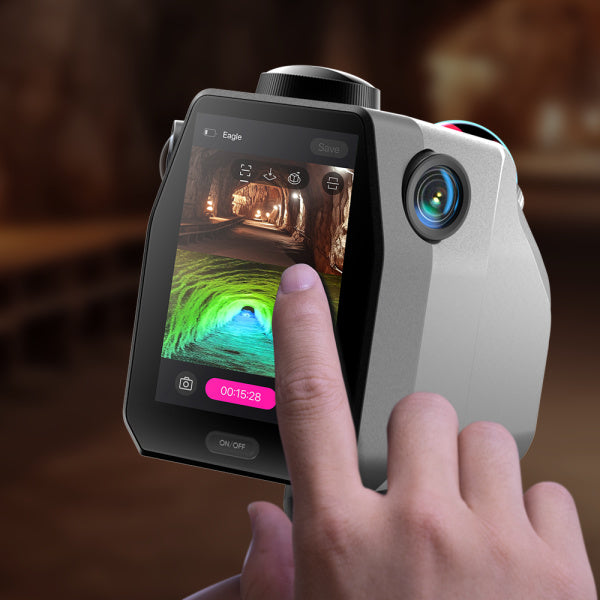

• Data interface: USB Type-C ×2, Wi-Fi 5, 3.5" screen
• Output formats: PLY (point cloud & 3DGS), OBJ (mesh & panoramic tour)
• Battery: 12,000 mAh, ~1 hour, charges while powered externally
• Compute: 8-core 2.4 GHz, 32 GB (TF card expandable)
• Dimensions & weight: 115 × 181 × 106 mm, 1.5 kg

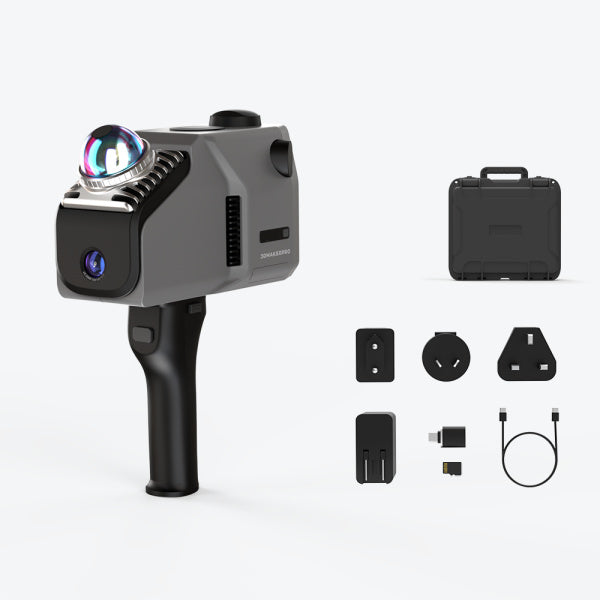

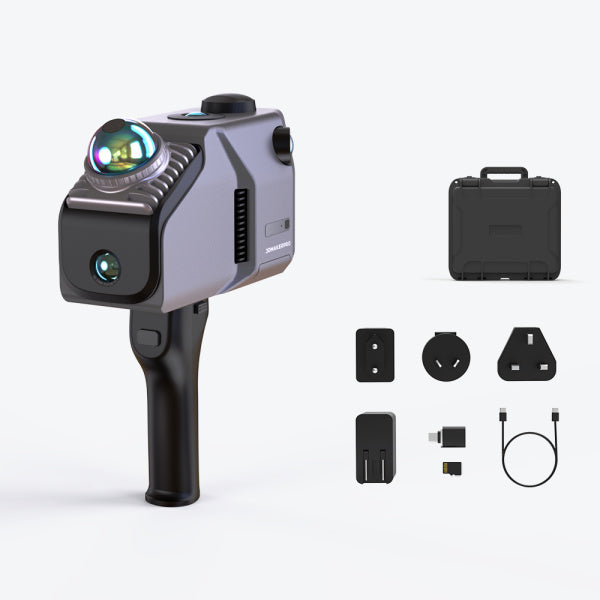

What's in the box

• Eagle (or Eagle Max) scanner body ×1
• RTK antenna & module ×1
• Handle ×1
• 65W charger ×1
• 1.5 m USB-C cable ×1
• USB-C adapter ×1
• 128 GB TF card ×1

What Eagle LiDAR unlocks

• Real estate surveying & mapping — generate 3D maps of building interiors in real time and build complete models for architectural design and property display.
• Public safety — restore the full spatial structure of a crime scene, preserve critical evidence, and share case data across departments for joint handling.
• Traffic accident reconstruction — collect and generate 3D accident models in real time without holding up traffic, improving accuracy for liability determination.
• Emergency firefighting — map site layout quickly so responders understand complex, low-visibility environments before entering.
• Cultural-relic documentation — build comprehensive, non-contact 3D records of artifacts and sites for digital protection, restoration, and virtual display.
• Interior design & renovation — capture precise 3D data of existing spaces, then generate decoration plans and accurate construction budgets.

Why buy the Eagle from CRB Supply

• Authorized & warrantied — genuine 3DMakerPro stock with the full manufacturer warranty, not a grey-market import.
• US stock, fast dispatch — ships free from a US warehouse in 1–3 business days.
• We help you spec it — talk to someone who knows LiDAR and which model fits your job before you buy.
• Built for pros — quotes, bulk pricing, and net terms for surveying firms, agencies, schools, and studios.

Eagle LiDAR scanner FAQs

Is the laser safe to use around people?

Yes. The Eagle uses a 905 nm Class 1 laser, certified eye-safe under IEC 60825-1:2014 for normal use.

What's the difference between Eagle and Eagle Max?

Both share the same LiDAR core, 2 cm accuracy, and included RTK. Eagle has one 48 MP 8K camera; Eagle Max has four, capturing dense color faster — a better fit for richly textured scenes.

Does it include software, or is that extra?

RayStudio and the Vision Cloud Exhibition platform are included free with every scanner, with lifetime updates and no subscription.

What does the RTK module actually do?

RTK positioning binds your scan to real-world coordinates so captured data aligns accurately with the actual site for survey-grade georeferencing. It's included on both models.

What file formats can I export?

Colored and shaded point clouds and 3D Gaussian splatting as PLY, colored polygonal models and panoramic tour data as OBJ — ready for CAD, BIM, and 3D tools.

Can I get a quote or net terms for my firm?

Yes. We offer quotes, bulk pricing, and net terms for surveying firms, agencies, schools, and studios. Reach out before ordering and we'll set you up.
